Allez DSW SL Sprint Comp

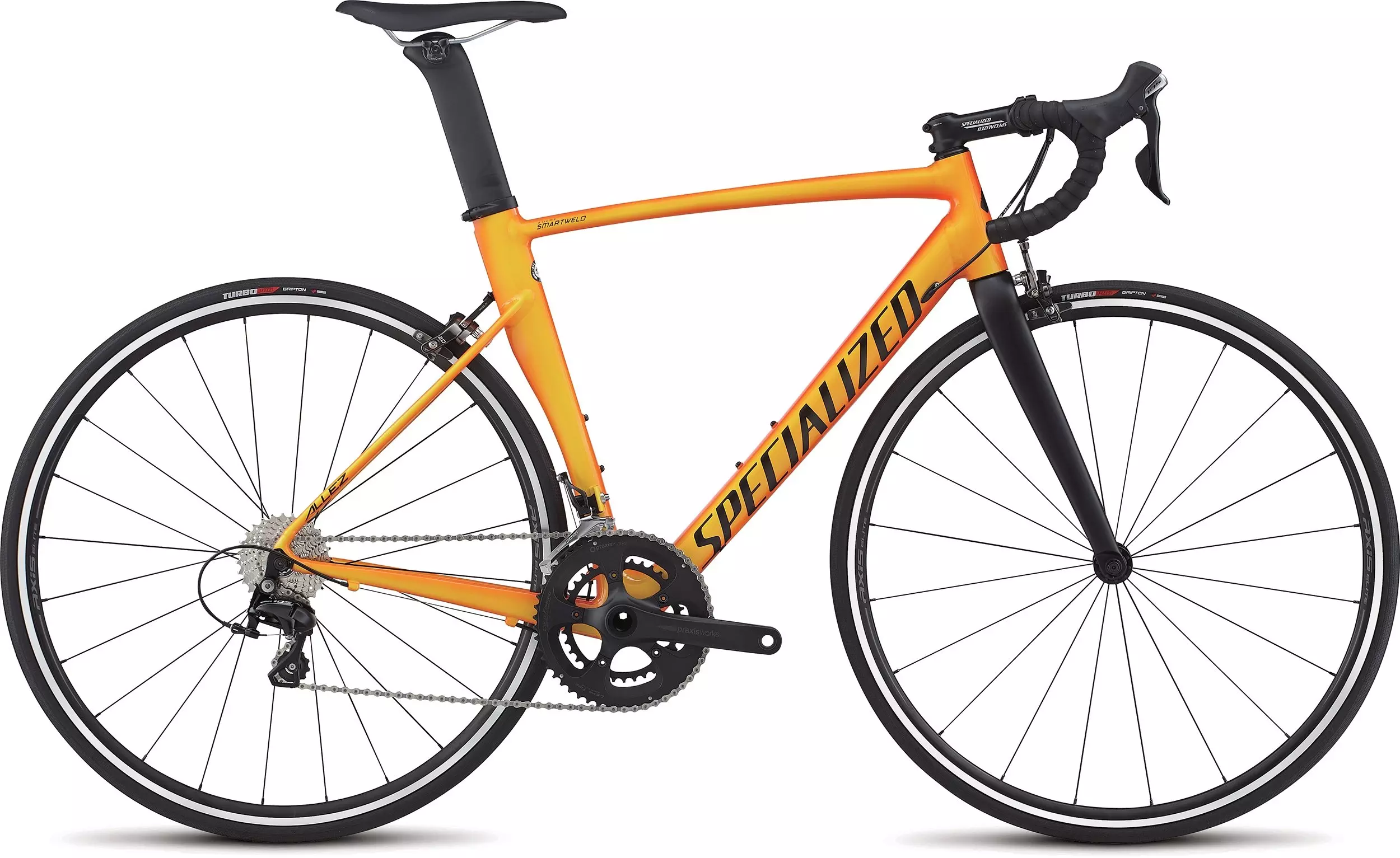

2017 Allez DSW SL Sprint Comp
技術仕様
FRAMESET
FRAME
Specialized E5 Premium Aluminum w/D'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, OSBB
FORK
S-Works FACT full carbon, size-specific taper
SEAT BINDER
Allez Sprint Aero
WHEELS
FRONT WHEEL
Axis Elite, QR
REAR WHEEL
Axis Elite, QR
FRONT TIRE
Turbo Pro, 700x24mm, 60TPI, folding bead, BlackBelt protection
REAR TIRE
Turbo Pro, 700x24mm, 60TPI, folding bead, BlackBelt protection
INNER TUBES
700x20/28mm, 40mm Presta valve
DRIVETRAIN
SHIFT LEVERS
Shimano 105 STI, 11-speed
FRONT DERAILLEUR
Shimano 105, braze-on
REAR DERAILLEUR
Shimano 105, 11-speed
CASSETTE
Shimano 105, 11-speed, 11-28t
CHAINRINGS
52/36T
CRANKSET
Praxis Alba 2D
BOTTOM BRACKET
Praxis
CHAIN
KMC X11, 11-speed w/reusable MissingLink
COCKPIT
HANDLEBARS
Specialized Shallow Drop, alloy, 125mm drop, 70mm short-reach
STEM
Specialized, 3D forged alloy, 4-bolt, 7-degree rise
TAPE
Specialized S-Wrap
SADDLE
Body Geometry Toupé Sport, steel rails, 143mm
SEATPOST
Specialized Venge, FACT carbon
BRAKES
REAR BRAKE
AXIS 2.0
FRONT BRAKE
AXIS 2.0
* 重量は、写真のように塗装されたフレームの生産に基づいています。実際の重量は、カラーウェイ、フレームサイズ、コンポーネントのバリエーションにより異なります。仕様は予告なしに変更されることがあります。
ジオメトリー
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
| Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 330mm | 330mm | 330mm | 330mm | 330mm | 330mm |
| Seat-Tube Angle | 74° | 74° | 74° | 74° | 74° | 74° |
| Head-Tube Length | 100mm | 110mm | 130mm | 150mm | 180mm | 200mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 405mm | 407mm |
| Front-Center | 564mm | 566mm | 577mm | 589mm | 602mm | 608mm |
| B-B Drop | 69mm | 69mm | 69mm | 69mm | 69mm | 69mm |
| B-B Height | 272.5mm | 272.5mm | 272.5mm | 272.5mm | 272.5mm | 272.5mm |
| Bike Stand-Over Height | 732.3mm | 745.8mm | 765.5mm | 784.3mm | 808.3mm | 833.8mm |
| Fork Length (full) | 368mm | 368mm | 368mm | 368mm | 368mm | 368mm |
| Top-Tube Length (horizontal) | 519mm | 527mm | 538mm | 554mm | 567mm | 578mm |
| Seat-Tube Length | 460mm | 480mm | 500mm | 520mm | 540mm | 570mm |
| Stack | 502mm | 514mm | 533mm | 554mm | 583mm | 604mm |
| Reach | 375mm | 380mm | 385mm | 395mm | 400mm | 405mm |
| Trail | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Wheelbase | 959mm | 961mm | 972mm | 984mm | 997mm | 1005mm |
