Jynx Comp 650b

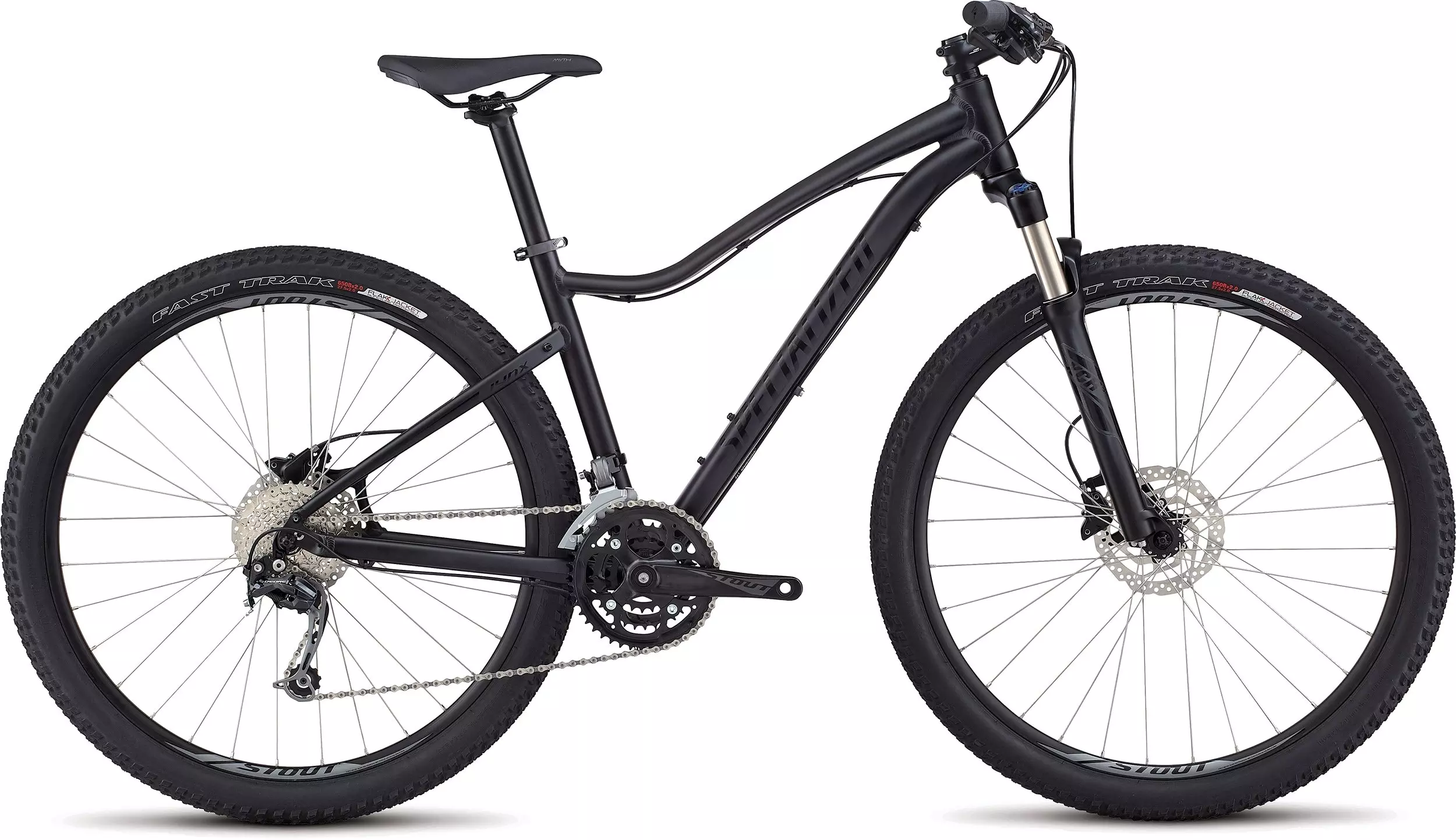

2017 Jynx Comp 650b
Spécifications techniques
FRAMESET
FRAME
Specialized A1 Premium Aluminum, Women's Sport Trail 650b Geometry, forged dropouts, replaceable derailleur hanger, kickstand mount
SEAT BINDER
Alloy, QR clamp, 31.8mm
WHEELS
RIMS
650b, disc, alloy, double-wall, pin joint, 25mm inner width, 32h
FRONT HUB
Shimano Center Lock, disc, 9x100mm QR, 32h
REAR HUB
Shimano Center Lock, disc, 10x135mm QR, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Fast Trak Sport, 650bx2.0"", 60TPI, wire bead, Flak Jacket protection
REAR TIRE
Fast Trak Sport, 650bx2.0"", 60TPI, wire bead, Flak Jacket protection
SUSPENSION
FORK
SR Suntour XCR 32 650b, coil spring, custom Multi-Circuit Damping, 80mm of travel
DRIVETRAIN
FRONT DERAILLEUR
Shimano Altus, 34.9mm clamp, down-swing
REAR DERAILLEUR
Shimano Deore, Shadow design, SGS cage
SHIFT LEVERS
Shimano Altus, 9-speed
CASSETTE
Sunrace, 9-speed, 11-34t
CHAIN
KMC X9, 9-speed w/reusable MissingLink
CRANKSET
Stout, forged alloy construction
CHAINRINGS
44/32/22T
BOTTOM BRACKET
Square taper, 73mm, internal bearings
COCKPIT
STEM
Ahead 3D-forged alloy, 31.8mm, 6-degree rise
HANDLEBARS
Alloy bar, 15mm rise, 9-degree backsweep, 5-degree upsweep, 640/680mm width, 31.8mm
GRIPS
Specialized MTB Grip, lock-on
SADDLE
Women's Body Geometry Myth Sport, steel rails, 155mm
SEATPOST
Alloy, 12mm offset, 2-bolt clamp, 30.9mm
BRAKES
REAR BRAKE
Shimano BL-M315, hydraulic disc, resin pads
FRONT BRAKE
Shimano BL-M315, hydraulic disc, resin pads
ACCESSORIES
PEDALS
Specialized Dirt Pedals
* Poids basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujettes à modification sans préavis.
Géométries
| XS | S | M | L | |
|---|---|---|---|---|
| Longueur manivelles | 165mm | 170mm | 170mm | 175mm |
| Largeur de cintre | 640mm | 640mm | 680mm | 680mm |
| Longueur de potence | 60mm | 60mm | 80mm | 80mm |
| Largeur de selle | 155mm | 155mm | 155mm | 155mm |
| Longueur de tige de selle | 300mm | 350mm | 350mm | 400mm |
| Angle tube de selle | 74° | 74° | 73° | 73° |
| Hauteur de douille de direction | 100mm | 100mm | 110mm | 120mm |
| Angle de direction | 69.5° | 69.5° | 70° | 70° |
| Longueur bases | 426mm | 426mm | 426mm | 426mm |
| Boîte de pédalier – axe roue avant | 606mm | 626mm | 633mm | 653mm |
| B-B Drop | 48mm | 48mm | 48mm | 48mm |
| Boîte de pédalier - sol | 305mm | 305mm | 305mm | 305mm |
| Hauteur cadre à l’entrejambe | 668mm | 686mm | 715mm | 745mm |
| Longueur de fourche | 475mm | 475mm | 475mm | 475mm |
| Longueur tube horizontal | 527mm | 547mm | 569mm | 589mm |
| Longueur tube de selle | 330mm | 371mm | 417mm | 463mm |
| Stack | 576mm | 576mm | 587mm | 597mm |
| Reach | 362mm | 382mm | 390mm | 407mm |
| Chasse | 87mm | 87mm | 84mm | 84mm |
| Déport de fourche | 42mm | 42mm | 42mm | 42mm |
| Empattement | 1027mm | 1047mm | 1054mm | 1075mm |
