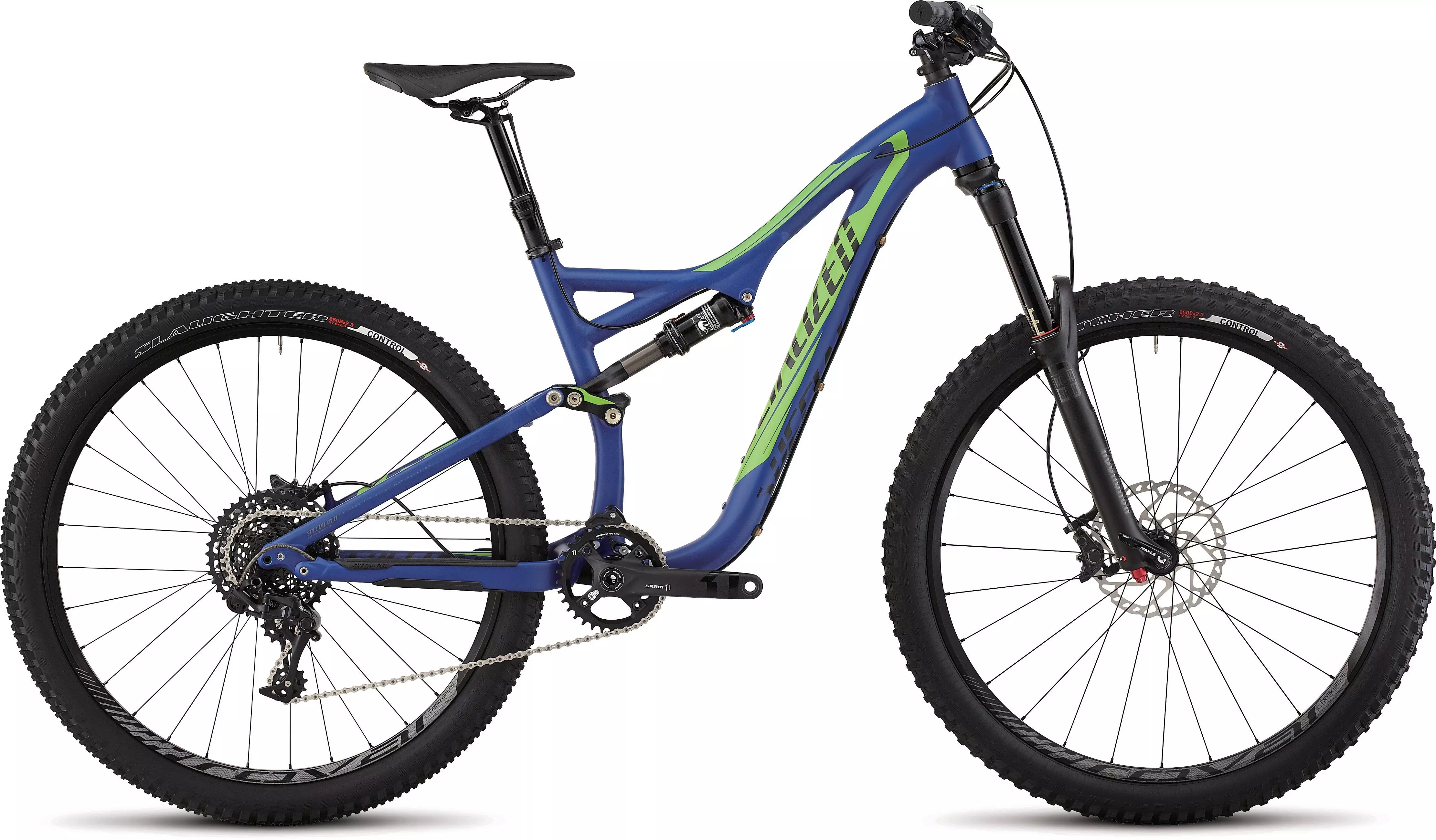

2015 Stumpjumper FSR Elite EVO 650b

0 Avis

Couleur:

SATIN DEEP BLUE/MONSTER GREEN/BLACK

Quelle est ma taille ?

Impériale

Métrique

Entrez vos mensurations et nous calculerons votre taille idéale.

Hauteur:

Pour un résultat plus précis, inclure la longueur de votre tibia.

Sélectionnez un(e) Taille

Choisissez la couleur et la grandeur que vous voulez pour pour le chercher dans l'inventaire du magasin le plus proche

Livrer à -----

Indisponible

Cet article est indisponible via Trouver en magasin

Caractéristiques du produit

The Stumpjumper FSR Elite EVO 650b is purpose-built for the aggressive trail rider. It separates itself from other Stumpjumpers with a slacker head angle and 150mm of front and rear travel. The Elite EVO features a custom FOX Float CTD Evolution shock with AUTOSAG, a custom RockShox Pike RC 650b fork, custom SRAM X1 11-speed AM crankset and a 2.3" Specialized Butcher Control and Slaughter Control tire combination.

Shimano SLX disc brakes for dialed modulation and stopping power
Specialized Slaughter Control, 2Bliss Ready, 2.3" tire for fast-rolling performance with bite
Custom FOX Float CTD Evolution shock w/ AUTOSAG, Climb, Trail, Descend tunes for total control
M5 alloy EVO 650b frame w/ 150mm of smooth FSR travel for charging technical singletrack
RockShox Pike RC 650b fork smooths the trail with 150mm of plush suspension
Roval Traverse 650b wheels are 24mm wide for maximum stability
Specialized All-Mountain alloy bar is 750mm wide for stable handling on rough terrain
SRAM X1, 11-speed derailleur for simple and precise shifting
SRAM X1, 11-speed, trigger for precise shifting and improved efficiency
Specialized Command Post BlackLite w/ remote adjusts saddle height on-the-fly
Specialized Butcher Control 2.3" tire features a DH-inspired tread for rough singletrack

Spécifications techniques

FRAMESET

FRAME

M5 hydroformed tubing, 650b EVO geometry, tapered headtube, PF30 BB, ISCG ’05, Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel

HEADSET

1-1/8"" and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

Command Post, single bolt, 34.9mm

SUSPENSION

REAR SHOCK

Custom FOX Float CTD Evolution w/ AUTOSAG, Climb, Trail, Descend settings and rebound adj., 195x51mm

FORK

RockShox Pike RC 650b, Solo Air spring, tapered alloy steerer, w/ compression, rebound adj., 15mm thru-axle, 150mm travel

WHEELS

RIMS

Roval Traverse 650b, alloy disc, 24mm wide, 27/32h

FRONT HUB

Roval Traverse, 15mm thru-axle end caps, 27h

REAR HUB

Roval Traverse 142+, XX1 driver body, 12mm thru-axle, 28h

SPOKES

DT Swiss Super Comp, stainless, 2.0/1.65/1.8mm

DRIVETRAIN

REAR DERAILLEUR

SRAM X1, 11-speed, alloy cage

SHIFT LEVERS

SRAM X1, 11-speed, trigger

CASSETTE

SRAM XG 1180, 11-speed, 10-42

CRANKSET

Custom SRAM X1 1000, 11-speed, PF30, 34T, 94mm BCD spider

BOTTOM BRACKET

SRAM, PF30, OS press-in bearings, sealed cartridge

COCKPIT

SEATPOST

Command Post BlackLite, alien head design, single bolt head, w/ remote adjust SRL, 30.9mm, S: 75mm travel, Others: 100mm

STEM

Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise

HANDLEBARS

Specialized All-Mountain, low rise, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 31.8mm

GRIPS

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL

SADDLE

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

BRAKES

FRONT BRAKE

Shimano SLX BR-M675, hydraulic disc, metallic pads, S/M: 180mm rotor, Others: 200mm

REAR BRAKE

Shimano SLX BR-M675, hydraulic disc, metallic pads, S/M: 160mm rotor, Others: 180mm

BRAKE LEVERS

Shimano SLX BL-M675, hydraulic, alloy lever

ACCESSORIES

PEDALS

Resin test ride, w/ toe clips, CEN std.

* Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.

Géométries

	S	M	L	XL
Longueur tube (horizontal)	568mm	595mm	620mm	643mm
Seat Tube Angle (Effective)	74°	74°	74°	74°
Hauteur de la douille de direction	100mm	110mm	135mm	155mm
Top Tube Length (Actual)	530mm	555mm	579mm	603mm
Seat Tube Angle (Actual)	68.4°	68.8°	69.2°	69.7°
Seat Tube Length - Center to Top	396mm	430mm	468mm	523mm
Boîte de pédalier - sol	327mm	327mm	327mm	327mm
Empattement	1107mm	1137mm	1165mm	1193mm
Hauteur cadre à l’entrejambe	738mm	729mm	738mm	754mm
Stack	602mm	619mm	642mm	661mm
Reach	401mm	426mm	445mm	467mm
Angle de direction	68°	68°	68°	68°
Longueur bases	435mm	435mm	435mm	435mm
Longueur manivelles	170mm	175mm	175mm	175mm
Largeur de cintre	750mm	750mm	750mm	750mm
Longueur de potence	60mm	60mm	75mm	75mm
Longueur de tige de selle	380mm	430mm	430mm	430mm
