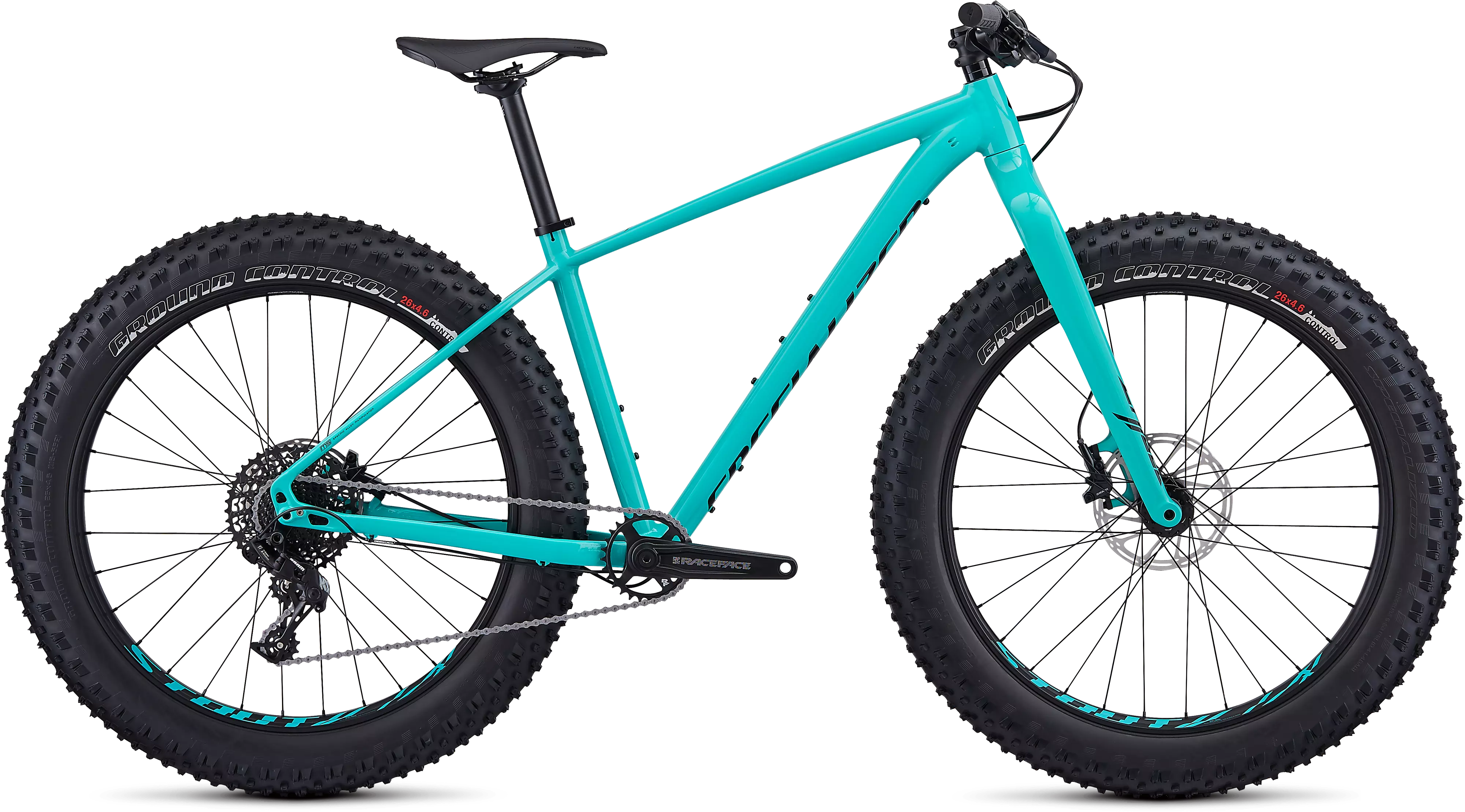

Going fat isn't just a fun way to ride—it's a ride revolution. The security and control that the wheel system found on our Fatboy provides is unparalleled. You get dramatically more traction, grip, and floatation than with traditional mountain tires, all without sacrificing much to climbing efficiency.
The end result is easy to explain—you have way more fun. And to make sure of it, we built the Fatboy with a durable list of components, like a SRAM 11-speed one-by drivetrain, that are low-maintenance and eager to perform season after season. Have more fun—go fat.

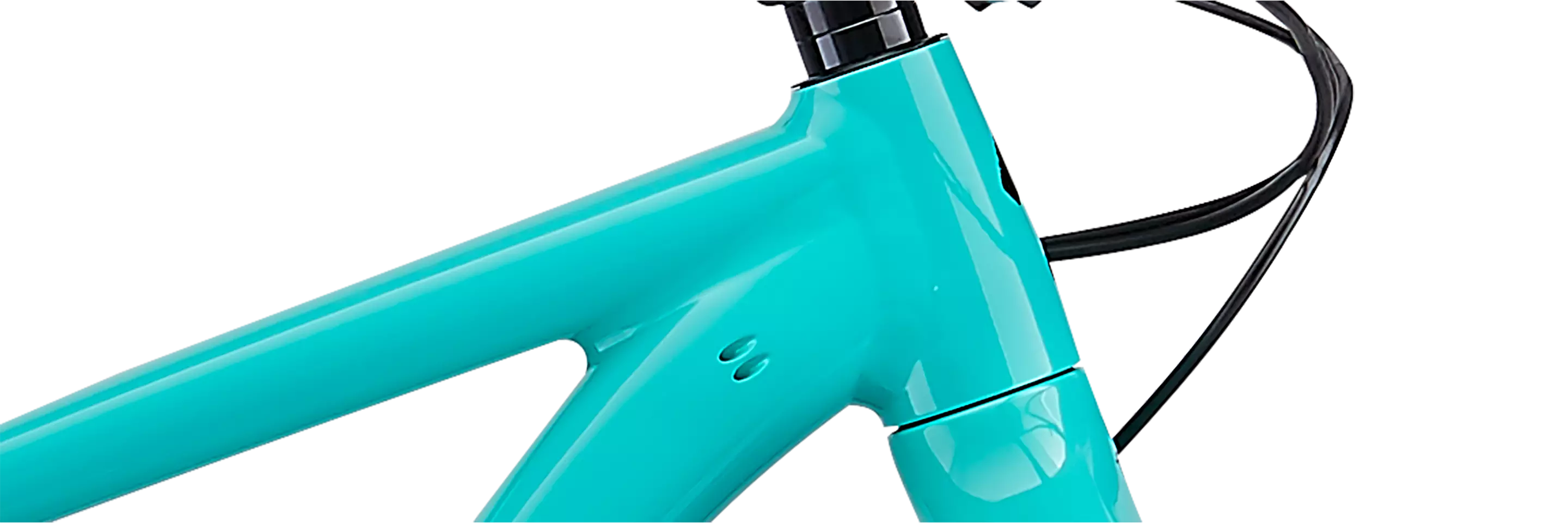

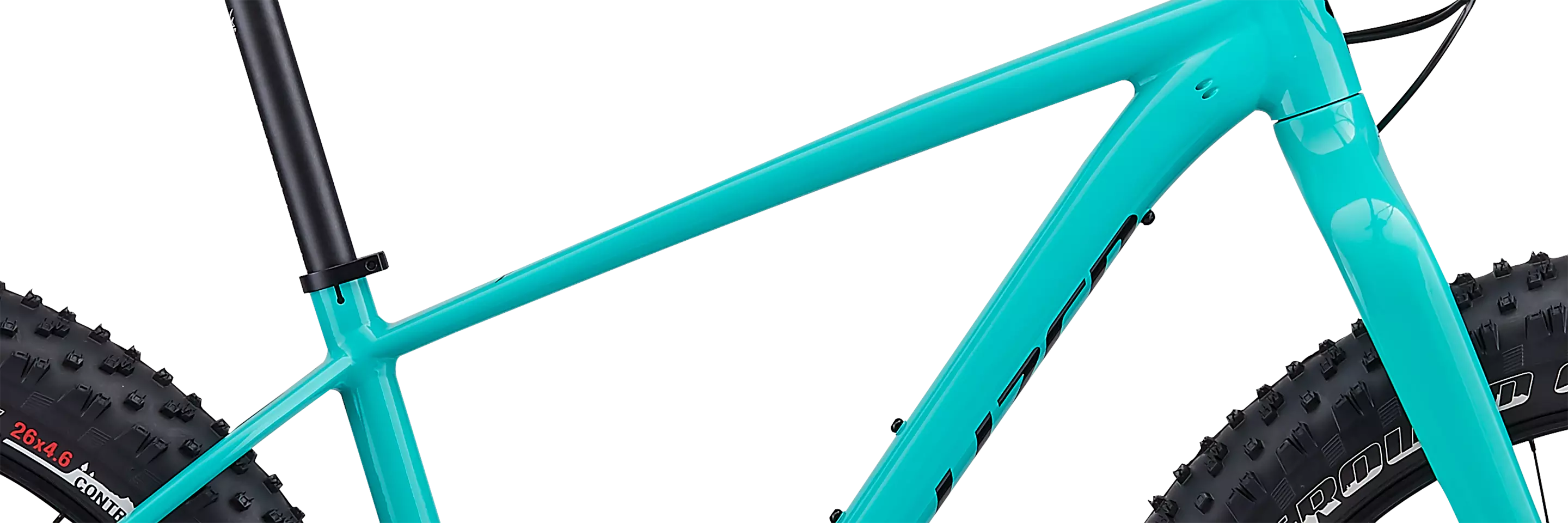

- The frame features an M5 alloy construction that provides the ideal blend of efficiency and durability, while the geometry creates a roomy top tube and short chainstays for easy climbing and confident descending.

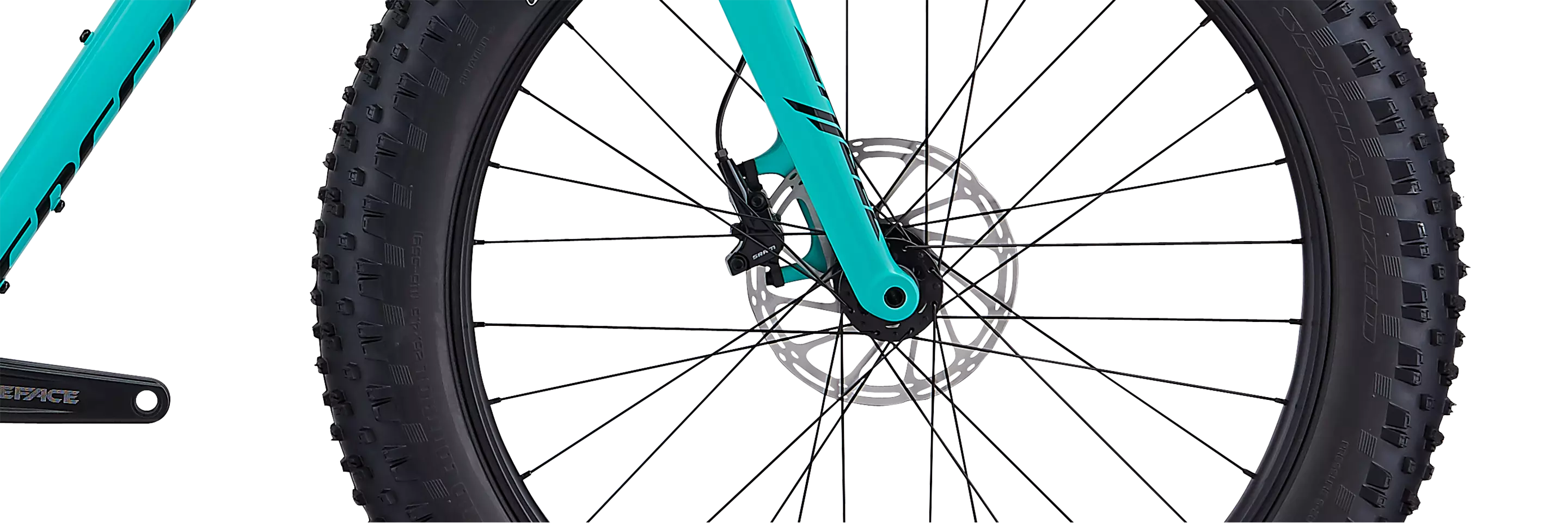

- A FACT carbon fiber fork provides tons of compliance and absorbs chatter, while simultaneously keeping the overall weight of the bike down.

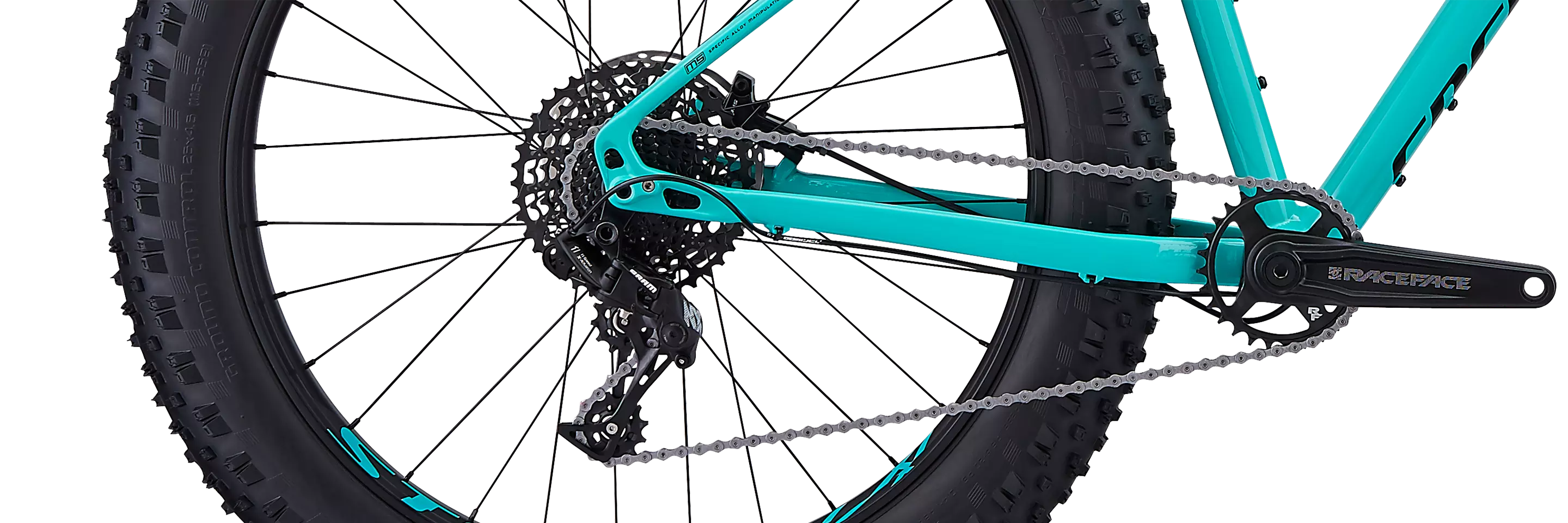

- The SRAM NX one-by groupset keeps things simple, and is ready to take on the trail for the long haul.
|FRAME||Specialized M5 Aluminum, fully butted w/ Smooth Welds, tapered head tube and seat tube, forged post-mount 160mm disc dropouts, internal routing, forged bottom bracket shell, 197x12mm rear thru-axle|
|FORK||Specialized FACT carbon, 46mm offset, tapered steerer, 150mm axle|
|HANDLEBARS||Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm width, 31.8mm|
|GRIPS||Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness|
|SEATPOST||Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm|
|STEM||Specialized, 3D-forged alloy, 4-bolt, 7-degree rise|
|SADDLE||Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm|
|SEAT BINDER||Alloy, bolt-type, 34.9mm|
|REAR BRAKE||SRAM Level T, hydraulic disc, 180/160mm|
|FRONT BRAKE||SRAM Level T, hydraulic disc, 200/180mm|
|SHIFT LEVERS||SRAM NX, 11-speed|
|REAR DERAILLEUR||SRAM NX, 11-speed|

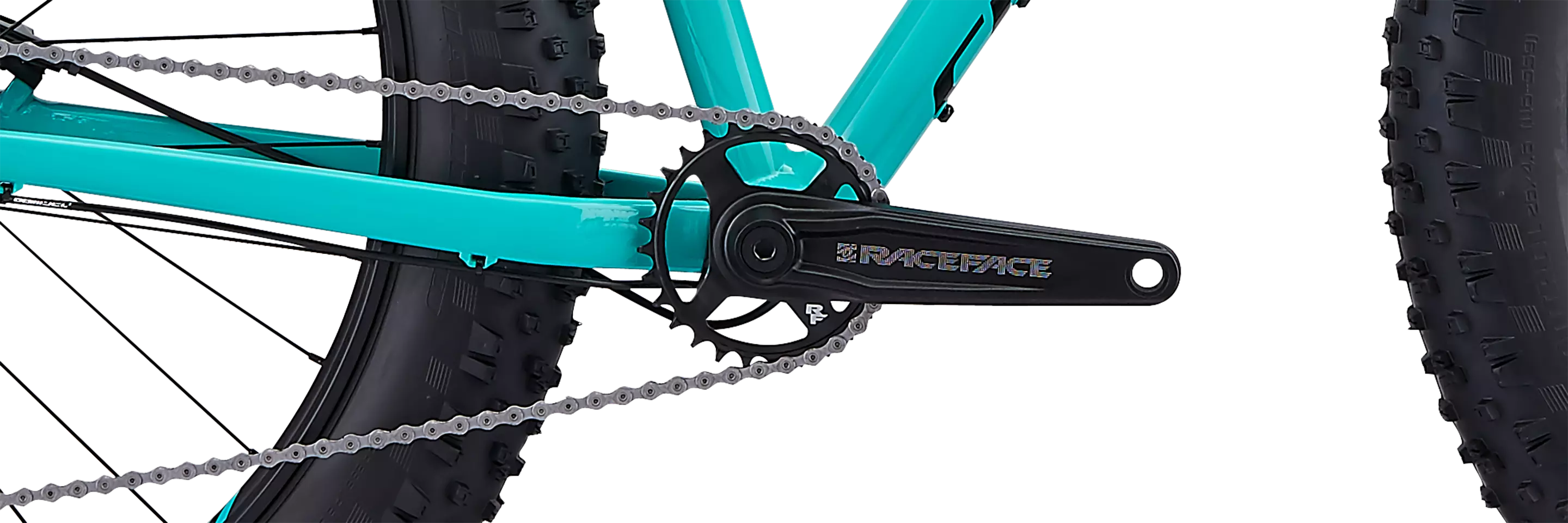

|CRANKSET||Race Face Ride|
|CASSETTE||SRAM PG-1130, 11-speed, 11-42t|
|BOTTOM BRACKET||Race Face, threaded BSA|
|CHAIN||KMC X11EPT, 11-speed, anti-corrosion coating w/ reusable Missing Link™|
|RIMS||Stout XC 80, 26", alloy, 76mm internal width, disc-specific|
|REAR HUB||Stout Pro 197, sealed cartridge bearings, 6-bolt disc, 12x197mm, 32h|
|FRONT HUB||Stout Pro 150, sealed cartridge bearings, 6-bolt disc, 15x150mm, 32h|
|REAR TIRE||Ground Control Fat, Control casing, 120 TPI, Aramid folding bead, 26x4.6"|
|FRONT TIRE||Ground Control Fat, Control casing, 120 TPI, Aramid folding bead, 26x4.6"|
|INNER TUBES||Presta, 40mm valve|
Fatboy - Géométries
|Bike Standover Height, Actual||765mm||786mm||813mm||847mm|
|Top Tube Length, Horizontal||579mm||604mm||626mm||651mm|
|Seat Tube Angle||73mm||73mm||73mm||73mm|
|Head Tube Angle||71°||71°||71°||71°|
|Seat Tube Length||394mm||434mm||470mm||520mm|
|Head Tube Length||94mm||94mm||110mm||125mm|
|Fork Length, Full||496mm||496mm||496mm||496mm|
