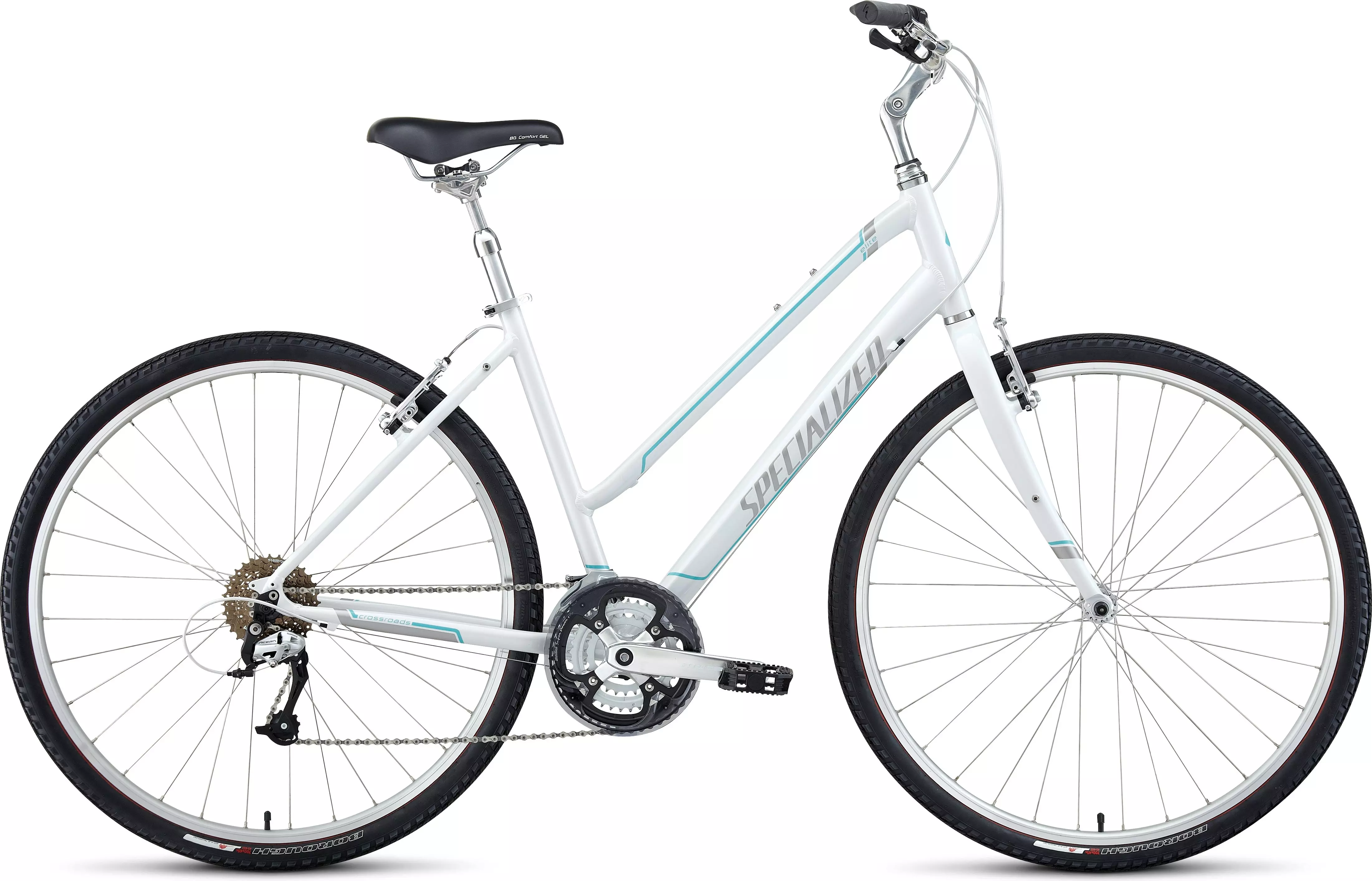

2014 Crossroads Elite Step Through

0 Avis

Couleur:

Gloss White/Robin'S Egg/Silver

Quelle est ma taille ?

Impériale

Métrique

Entrez vos mensurations et nous calculerons votre taille idéale.

Hauteur:

Pour un résultat plus précis, inclure la longueur de votre tibia.

Sélectionnez un(e) Taille

Choisissez la couleur et la grandeur que vous voulez pour pour le chercher dans l'inventaire du magasin le plus proche

Indisponible

Cet article est indisponible via Trouver en magasin

Caractéristiques du produit

Blaze the bike path, explore the neighborhood! Fun and fast, forgiving and stable, the Crossroads Elite Step Through, with 27-speeds and Armadillo flat-protection tires, is the perfect tool to get out there and test boundaries—both yours and the neighborhood's.

A1 Premium Aluminum frame with custom geometry for quick and correct fit to size, includes integrated kickstand mount
Lightweight, rigid alloy fork delivers improved handling, plus rack/fender mounts for added utility
Smooth-rolling and super-tough Borough tires can comfortably handle any terrain
Body Geometry Comfort closed-end grips for an ergonomic contact point to keep hands fatigue-free, with bell for safety
Body Geometry Comfort Gel saddle has dense foam plus gel to give the most comfortable ride, but still allows you full range of motion on the bike

Spécifications techniques

FRAMESET

FRAME

A1 Premium Aluminum, custom formed tubes, forged dropouts w/ replaceable derailleur hanger

FORK

Specialized A1 Premium Aluminum, w/ custom butting and profile

HEADSET

1-1/8"" FSA Intelaset, threaded, Cr-Mo cups

SEAT BINDER

Alloy, QR

WHEELS

FRONT HUB

Double-sealed, ground race, dual-lock nuts w/ 17mm contact side, 5mm QR

REAR HUB

Double-sealed, dual-lock nuts, steel axle, 5mm QR

SPOKES

Stainless, 14g (2.0mm)

FRONT TIRE

Specialized Borough Armadillo, 60TPI, wire bead, 700x45c

REAR TIRE

Specialized Borough Armadillo, 60TPI, wire bead, 700x45c

INNER TUBES

Standard Schrader valve

RIMS

Alloy double-wall, CNC sidewalls, 32h

DRIVETRAIN

FRONT DERAILLEUR

Shimano Acera, top-swing, dual-pull

REAR DERAILLEUR

Shimano Acera, 9-speed

SHIFT LEVERS

Shimano Acera, 9-Speed, Rapidfire

CASSETTE

Shimano, 9-speed, 11-32

CHAIN

KMC X9

CRANKSET

SR Suntour XCR, 9-speed, square spindle, w/ chainguard

CHAINRINGS

48/36/26, w/ chainguard

BOTTOM BRACKET

Cartridge bearings, square spindle, capless bolts

COCKPIT

STEM

Adjustable quill, die-cast alloy, 2-bolt, 150mm x 25.4mm clamp

HANDLEBARS

Specialized riser bar, alloy, 8-degree backsweep, 60mm rise, 25.4mm

TAPE

Specialized Body Geometry Comfort, dual compound, lock-on

SADDLE

Specialized Body Geometry Comfort Gel Women's, 200mm

SEATPOST

Alloy suspension, 2-bolt, 27.2mm

BRAKES

FRONT BRAKE

Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull

REAR BRAKE

Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull

BRAKE LEVERS

Alloy, four-finger, Kraton comfort lever

ACCESSORIES

PEDALS

Comfort, composite body w/ rubber top, sealed loose ball bearings

* Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.

Géométries

	XS	SM	MD	LG
Angle tube de selle	71°	71°	71°	71°
Hauteur de douille de direction	135mm	145mm	175mm	190mm
Longueur tube de selle - centre à sommet	300mm	350mm	350mm	350mm
Angle de direction	69°	69.5°	70.5°	70.5°
Longueur bases	465mm	465mm	465mm	465mm
Longueur tube horizontal	555mm	570mm	585mm	600mm
Boîte de pédalier – axe roue avant	615mm	624mm	625mm	641mm
Largeur de cintre	660mm	660mm	660mm	660mm
Hauteur cadre à l’entrejambe	650mm	665mm	694mm	711mm
Longueur tube de selle - centre boîte de pédalier à sommet	370mm	425mm	485mm	535mm
Déport de fourche	55mm	55mm	51mm	51mm
B-B Drop	65mm	65mm	65mm	65mm
Chasse	74mm	72mm	72mm	72mm
Empattement	1072mm	1081mm	1082mm	1098mm
Longueur manivelles	170mm	170mm	175mm	175mm
Longueur de potence	50mm	50mm	50mm	50mm
