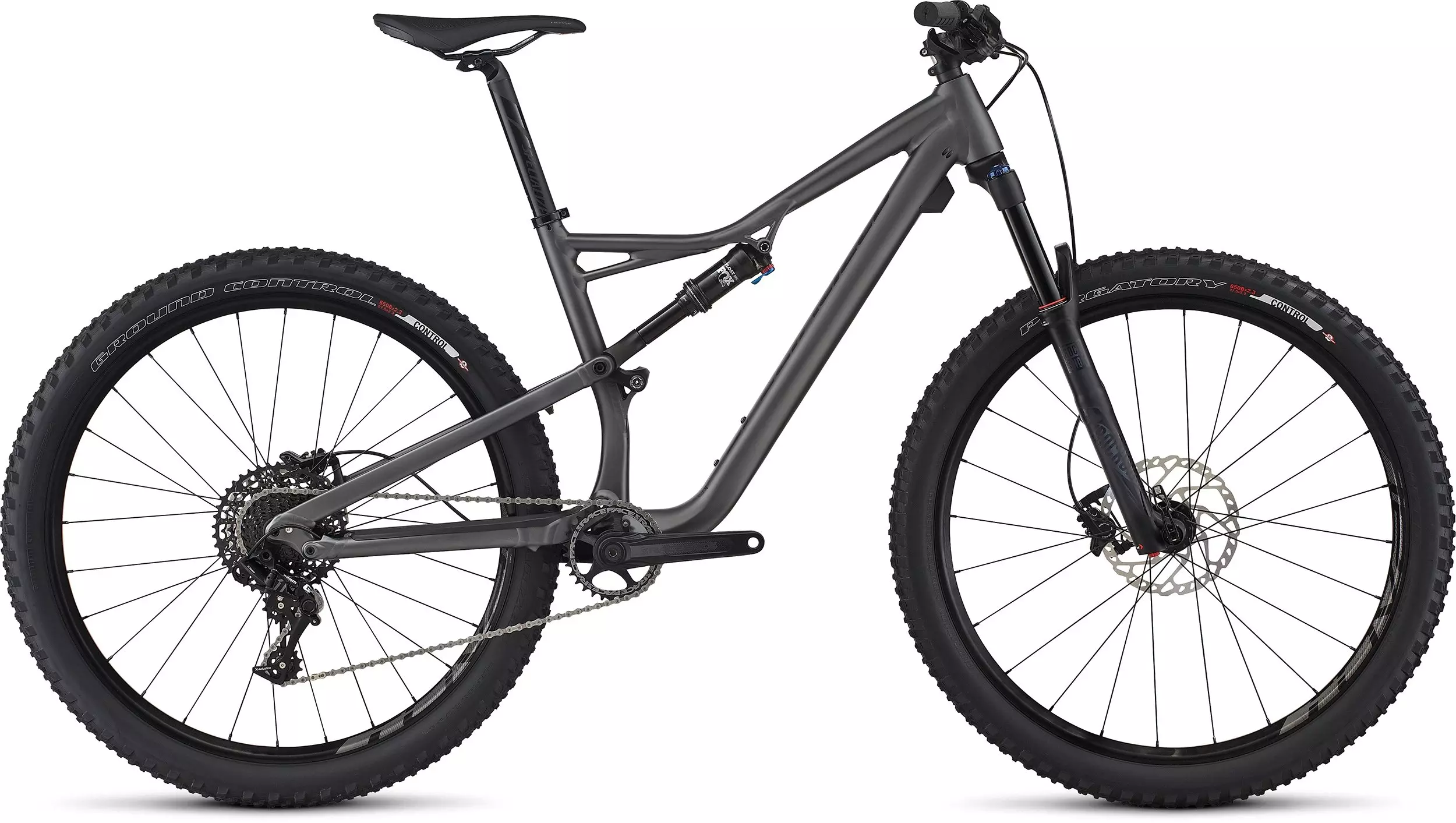

2017 Camber Comp 650b

0 Avis

Couleur:

GRAPHITE/BLACK/CLEAN

Quelle est ma taille ?

Impériale

Métrique

Entrez vos mensurations et nous calculerons votre taille idéale.

Hauteur:

Pour un résultat plus précis, inclure la longueur de votre tibia.

Sélectionnez un(e) Taille

Choisissez la couleur et la grandeur que vous voulez pour pour le chercher dans l'inventaire du magasin le plus proche

Livrer à -----

Indisponible

Cet article est indisponible via Trouver en magasin

Caractéristiques du produit

If you value efficiency and playful trail manners, the Camber Comp 650b is for you. It blends all of the trail bike characteristics that you want with the XC climbing prowess that you need. This is achieved by thoughtfully combining our M5 alloy Trail Chassis with a Camber FSR rear end. The combination results in blending light weight, rigidity, and durability in one package. At both ends of the bike, you'll find a little extra travel to deliver 130mm of plush suspension—all without going overboard on big hit capability. This means that you don't have to sacrifice efficiency, weight, or sheer speed to ride how you want. And with our Trail 650b Geometry and lightweight, stiff, and smooth Concentric Pivot at the rear, we can guarantee it. For the build, we selected components that focus on strength and performance, like a custom SRAM double-ring crankset, powerful Shimano hydraulic disc brakes, and hand-built Roval wheels.

An M5 alloy Trail Chassis w/ Camber FSR rear end has been paired with our Trail 650b Geometry to create a bike that's fast, durable, and just at home on the climbs as it is mowing over rock gardens. It also features the shortest, most nimble rear end possible, and internal cable routing to make clean lines and reliable shifting through any condition.
A custom RockShox Revelation RL 650b fork was developed to deliver 130mm of plush, trail taming travel, while accommodating a 15x110mm thru-axle for reliable handling and durability over rough, bumpy, or loose terrain. It also features our Rx Trail Tune for the ultimate in performance and feel.
SRAM GX 11-speed rear derailleur grants you access to a wide range of gears, while providing crisp, reliable shifting.

Spécifications techniques

FRAMESET

FRAME

M5 alloy, Trail Geometry, PF30 BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel

SEAT BINDER

Alloy, 34.9mm

SUSPENSION

REAR SHOCK

FOX FLOAT Performance, Rx Trail Tune, AUTOSAG, DPS damper, rebound and 3-position compression adjust, 205x53mm

FORK

RockShox Revelation RL 27.5, Solo Air spring, lockout and rebound adjust, 15x110mm Maxle Lite thru-axle, 46mm offset, 130mm travel

WHEELS

RIMS

Roval Traverse 650b, hookless alloy, 29mm inner width, 24/28h, tubeless ready

FRONT HUB

Specialized disc, alloy, sealed cartridge bearings,15x110mm thru-axle, 24h

REAR HUB

Specialized disc, alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h

SPOKES

DT Swiss Industry, stainless, 3x, 2.0""

FRONT TIRE

Purgatory, Control casing, 650bx2.3"", 60TPI, Aramid folding bead, 2Bliss Ready

REAR TIRE

Ground Control, Control casing, 650bx2.3"", 60TPI, Aramid folding bead, 2Bliss Ready

INNER TUBES

650bx1.75/2.4mm, 40mm Presta valve

DRIVETRAIN

REAR DERAILLEUR

SRAM GX, long cage, 11-speed

SHIFT LEVERS

SRAM NX, 11-speed, trigger

CASSETTE

SRAM PG-1130, 11-speed, 11-42t

CHAIN

SRAM PC-1110, 11-speed w/PowerLink

CRANKSET

RaceFace Aeffect, 6000-series alloy, 24mm spindle, 52mm chainline, 30T

CHAINRINGS

Race Face, 30T

BOTTOM BRACKET

PF30

COCKPIT

STEM

Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise

HANDLEBARS

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 750mm width

GRIPS

Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

SADDLE

Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

SEATPOST

Specialized, alloy, single bolt, 30.9mm

BRAKES

FRONT BRAKE

Shimano M506, hydraulic disc, resin pad, 200/180mm rotor

REAR BRAKE

Shimano M506, hydraulic disc, resin pad, 180/160mm rotor

ACCESSORIES

PEDALS

Resin Test Ride w/toe clips

* Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.

Géométries

	S	M	L	XL
Longueur manivelles	170MM	175MM	175MM	175MM
Largeur de cintre	750mm	750mm	750mm	750mm
Longueur de potence	60mm	60mm	75mm	90mm
Largeur de selle	143mm	143mm	143mm	143mm
Longueur de tige de selle	350mm	400mm	400mm	400mm
Angle tube de selle	75°	75°	75°	75°
Hauteur de douille de direction	95mm	105mm	115mm	125mm
Angle de direction	68°	68°	68°	68°
Longueur bases	420mm	420mm	420mm	420mm
Boîte de pédalier – axe roue avant	670mm	700mm	732mm	757mm
B-B Drop	23mm	23mm	23mm	23mm
Hauteur cadre à l’entrejambe	724mm	728mm	743mm	767mm
Longueur de fourche	522mm	522mm	522mm	522mm
Longueur tube horizontal	554mm	583mm	614mm	638mm
Longueur tube de selle	396mm	430mm	468mm	523mm
B-B Height (650x2.3)	329mm	329mm	329mm	329mm
B-B Height (650x2.6)	334mm	334mm	334mm	334mm
Stack	580mm	590mm	599mm	608mm
Reach	399mm	425mm	454mm	475mm
Chasse	97mm	97mm	97mm	97mm
Déport de fourche	42mm	42mm	42mm	42mm
Empattement	1089mm	1119mm	1151mm	1176mm
