Turbo Levo

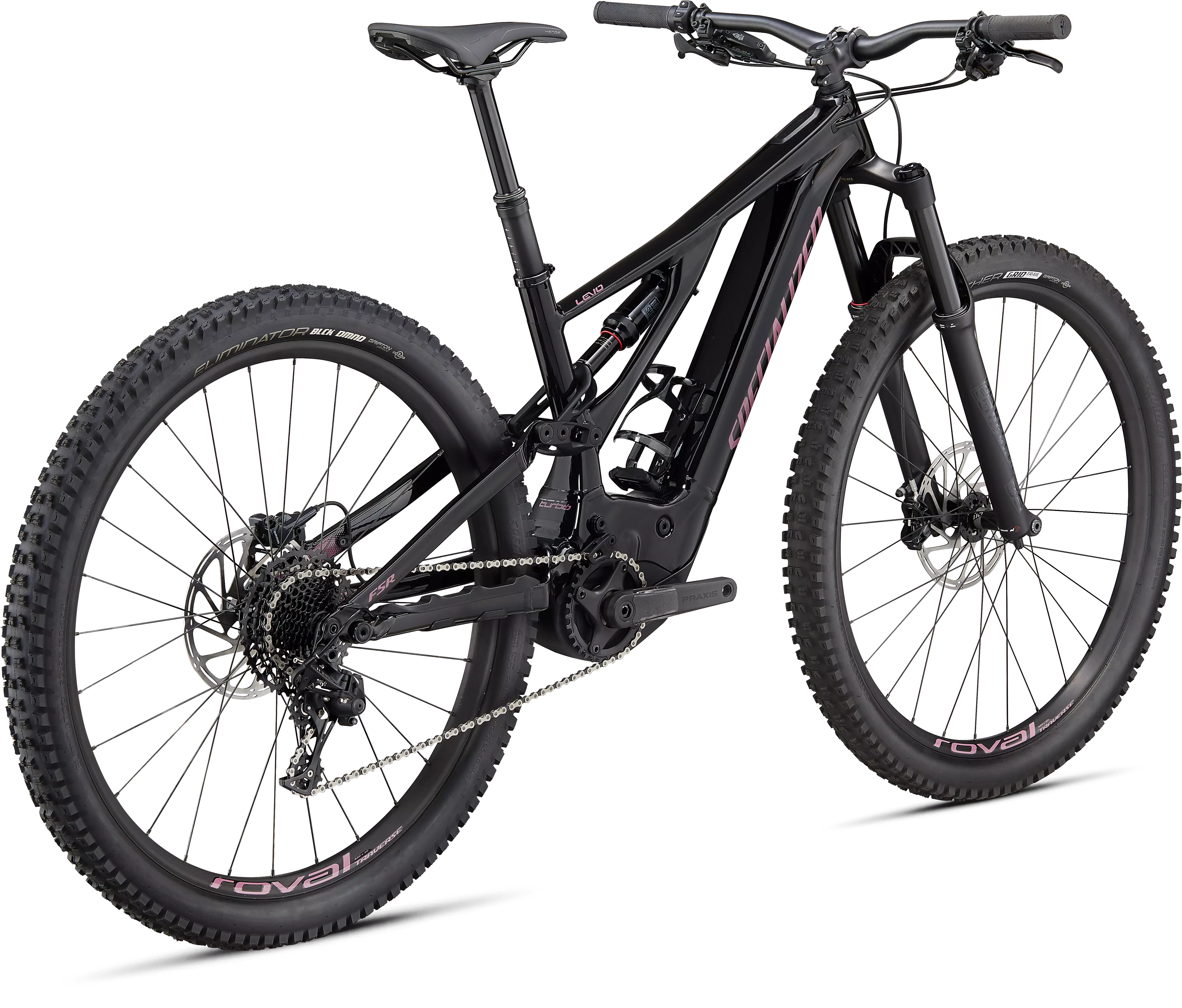

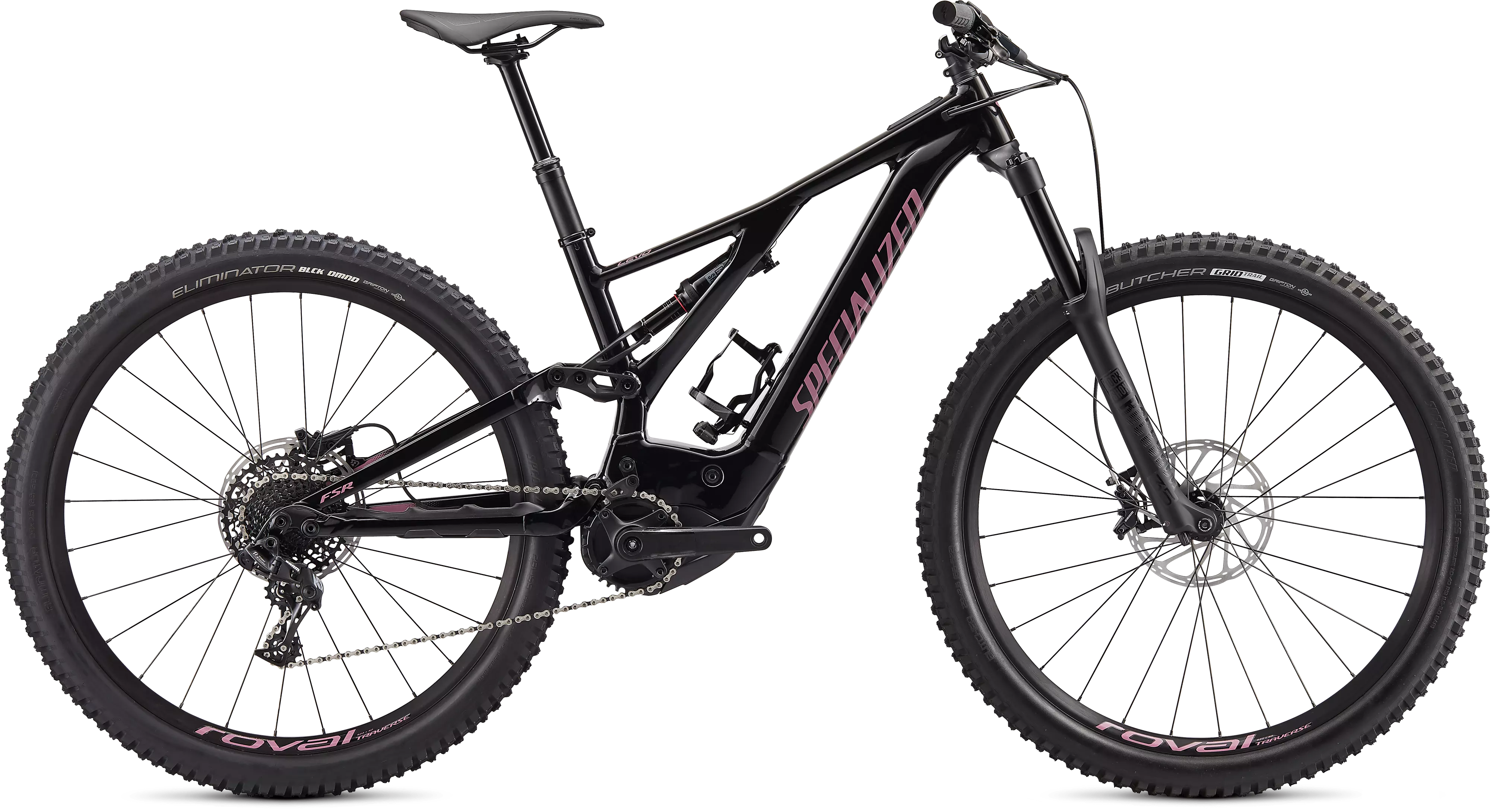

2020 Turbo Levo

The new Turbo Levo brings the most advanced eMTB frame, motor and battery technology to as many riders as possible. We’ve taken our advanced M5 alloy chassis and the smoothest and most powerful motor on the market, and paired them with the most value-packed drivetrain, suspension and brake components available. The result is a bike that puts plenty of high-dollar eMTBs to shame.

ROWDY DESCENTS. STEEP CLIMBS? HELL. YES.

The Turbo Levo is a fully-fledged progressive trail bike. We’ve lengthened the reach, kept the chainstays nice and short, and maintained a low center of gravity. Next, we slackened the head angle for more confident descents and steepened the seat angle to improve climbing efficiency. It’s dialed.

MORE POWER, MORE RANGE

The Levo’s Specialized 2.1 motor amplifies your pedaling input by a mind blowing 410%. Our M2 batteries provides you with plenty of range. What’s more, our Mission Control App can handle battery management automatically, ensuring your battery will last as long as you need it to. More power. More miles per ride. More awesome.

• M5 alloy Sidearm frame offers outstanding ride quality and control.

• Smoothest, most powerful motor on the market.

• 150mm of suspension front and rear, courtesy of RockShox.

Spécifications techniques

E-BIKE

UI/Remote

Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote

Battery

Specialized M2-500, integrated battery w/rock guard, 500Wh

Wiring Harness

Custom Specialized harness

Charger

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Motor

Specialized Turbo Full Power System 2.2 Motor

DRIVETRAIN

Chainrings

Praxis 32T, Steel, 104BCD

Rear Derailleur

SRAM NX, 11-speed

Chain

KMC e11S, 11-speed w/ Missing Link™

Shift Levers

SRAM S700, single-click lever

Cassette

SRAM PG-1130, 11-speed, 11-42t

Crankset

Praxis forged M30, custom offset

WHEELS

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"

Front Hub

Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes

Standard, Presta valve

Rear Tire

Eliminator, BLCK DMND Casing, 2Bliss Ready, 29x2.3"

Spokes

DT Swiss Industry

FRAMESET

Frame

Specialized M5 Premium Aluminum, 29 Trail Geometry, integrated down tube battery, enclosed internal cable, dropper post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel

Seat Binder

Specialized bolt-type, alloy, 38.6mm

Fork

RockShox 35 29, DebonAir spring, Motion Control damper, 51mm offset, 15x110mm thru-axle

BRAKES

Front Brake

SRAM Level T hydraulic disc, 4-Piston Caliper, 200mm

Rear Brake

SRAM Level T hydraulic disc, 2-Piston Caliper

COCKPIT

Stem

Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise

Saddle

Body Geometry Myth 155 S, Body Geometry Henge 143 M/L/XL, steel rails

SeatPost

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm

Handlebars

Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S 720mm, M-XL 750mm

Grips

Specialized Sip grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

Suspension

Rear Shock

RockShox Deluxe Select w/ custom air valve, 52.5x210mm

* Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.

Géométries

	S	M	L	XL
Crank Length	165mm	165mm	165mm	165mm
Seatpost Length	406mm	456mm	456mm	456mm
Handlebar Width	780mm	780mm	780mm	780mm
Stem Length	45mm	45mm	45mm	45mm
Saddle Width	155mm	143mm	143mm	143mm
Stack	606mm	606mm	634mm	647mm
Reach	415mm	435mm	455mm	480mm
Head Tube Length	95mm	95mm	125mm	140mm
Head Tube Angle	66°	66°	66°	66°
BB Height	347.5mm	347.5mm	347.5mm	347.5mm
BB Drop	27mm	27mm	27mm	27mm
Trail	111mm	111mm	111mm	111mm
Fork Length, Full	560mm	560mm	560mm	560mm
Fork Rake/Offset	51mm	51mm	51mm	51mm
Front Center	729mm	749mm	781mm	812mm
Chainstay Length	455mm	455mm	455mm	455mm
Wheelbase	1182mm	1202mm	1235mm	1266mm
Top Tube Length, Horizontal	577mm	600mm	631mm	664mm
Bike Standover Height	760mm	760mm	781mm	787mm
Seat Tube Length	380mm	410mm	455mm	505mm
Seat Tube Angle	75.04°	74.79°	74.48°	74.14°
