2014 Allez Comp Smartweld

0 Avaliações

Cor:

Gloss Black/Red/White/Blue Kl - Comp Sm

Qual é o meu tamanho?

Imperial

Metrico

Insere a tua altura, e iremos calcular o tamanho.

Altura:

Para um resultado mais correto, inclui o comprimento da tua canela.

Seleciona um Tamanho

Escolhe a cor e tamanho que desejas, para procurar no inventário da loja.

Indisponível

Este artigo não está disponível para Encontrar por perto

Enviar para -----

Detalhes do produto

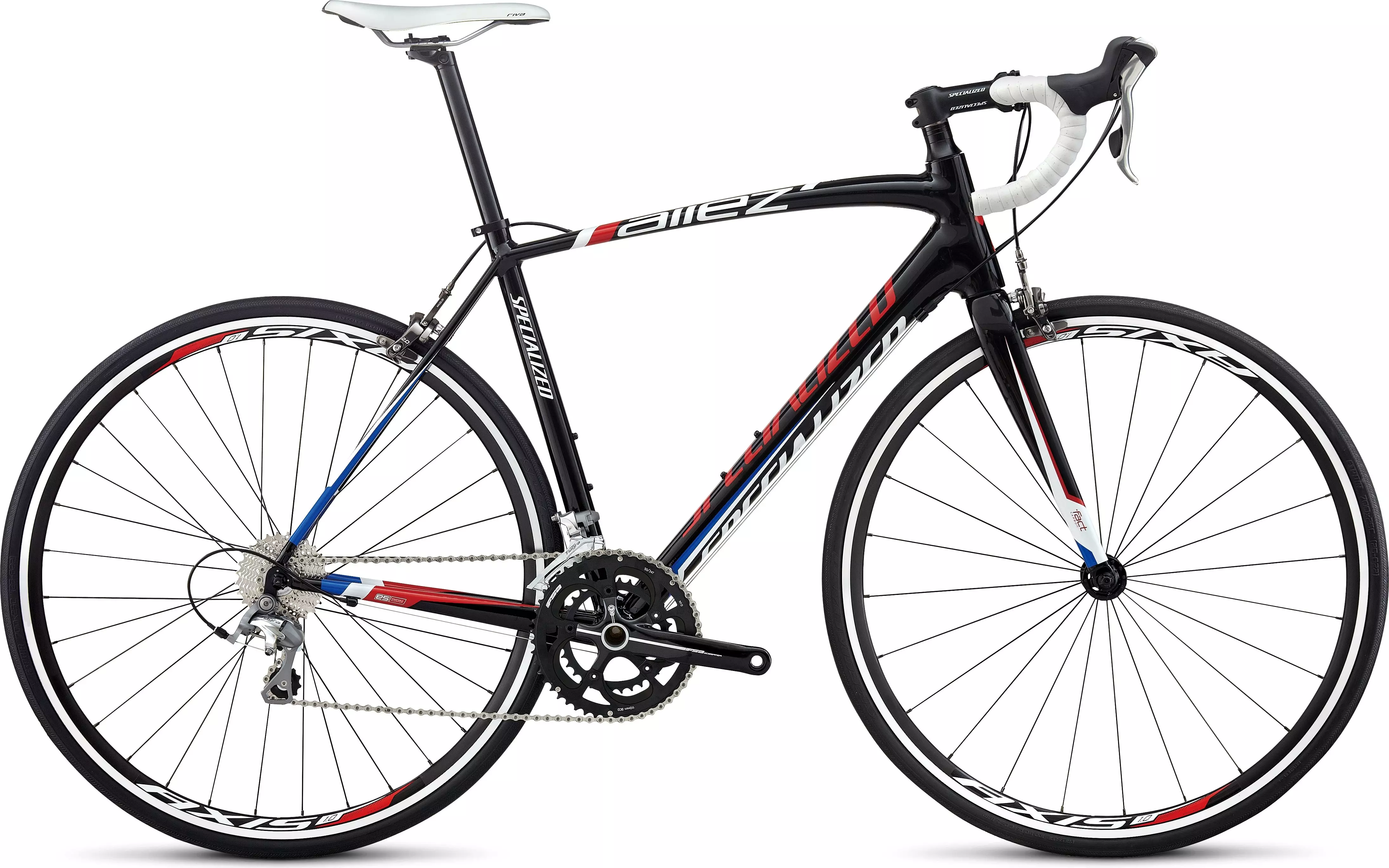

The Allez Comp Smartweld features an incredible E5 aluminum frame with Smartweld technology, a full monocoque Tarmac carbon fork, and a Shimano Tiagra drivetrain for a light, stiff and fast bike.

Race-inspired, smooth-welded, fully-manipulated E5 Premium Aluminum frame with Smartweld technology and tapered headtube is light and fast
Tarmac Comp full monocoque FACT carbon fork with tapered steerer is super light with great torsional rigidity for high-speed handling
AXIS 1.0 wheelset is significantly lighter than comparable-level wheelsets, these tough wheels roll smooth and fast
FSA Gossamer BB30 alloy crankset with mid-compact gearing is stiff and light for efficiency over any terrain
Shimano Tiagra shifters with STI technology for quick, crisp shifting whenever you need
Supportive Body Geometry Riva Road Gel saddle is the perfect combination of comfort and efficiency

Especificações Técnicas

FRAMESET

FRAME

Specialized E5 Premium Aluminum w/ Smartweld technology, fully-manipulated tubing w/ smooth welds, 1-3/8"" lower bearing, OSBB

FORK

Specialized Tarmac, FACT carbon full monocoque, carbon steerer/crown for 1-3/8"" lower bearing

HEADSET

1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings integrated w/ headset, 8mm cone spacer, w/ 20mm of carbon spacers

SEAT BINDER

Alloy, 31.8mm

WHEELS

FRONT WHEEL

AXIS 1.0

REAR WHEEL

AXIS 1.0

FRONT TIRE

Specialized Espoir Folding, 60TPI, aramid bead, double BlackBelt protection, 700x25c

REAR TIRE

Specialized Espoir Folding, 60TPI, aramid bead, double BlackBelt protection, 700x25c

INNER TUBES

Standard presta valve

DRIVETRAIN

SHIFT LEVERS

Shimano Tiagra STI

FRONT DERAILLEUR

Shimano Tiagra

REAR DERAILLEUR

Shimano Tiagra, 10-speed

CASSETTE

Shimano Tiagra, 10-speed, 12-28

CRANKSET

FSA Gossamer, 10-speed compact, alloy rings

CHAINRINGS

50/34

BOTTOM BRACKET

FSA, BB30

CHAIN

KMC X10

COCKPIT

HANDLEBARS

Specialized Comp, shallow bend

STEM

Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt, 31.8mm clamp

TAPE

Specialized S-Wrap, w/ bar shapers

SADDLE

Body Geometry Riva Road Gel, 143mm

SEATPOST

Specialized Sport, alloy, 2-bolt, 27.2mm

BRAKES

FRONT BRAKE

AXIS DC 2.0

REAR BRAKE

AXIS DC 2.0

BRAKE LEVERS

Shimano Tiagra

ACCESSORIES

PEDALS

Nylon flat test ride, loose ball, w/ reflectors

*Pesos baseados em quadros pintados de produção, conforme ilustrado. Os pesos reais variarão com base na cor, tamanho do quadro e variação do componente. As especificações estão sujeitas a alterações sem aviso prévio.

Geometria

	490.0	520.0	540.0	560.0	580.0	610.0
Ângulo do Tubo Vertical	75.5°	74°	73.5°	73.25°	73°	72.5°
Comprimento do Tubo de Direção	120mm	120mm	145mm	170mm	205mm	230mm
Espigão de Selim	300mm	300mm	350mm	350mm	350mm	350mm
Ângulo do Tubo de Direção	72.25°	73°	73°	73.5°	73.5°	74°
Comprimento da Escora Inferior	405mm	405mm	405mm	405mm	407mm	410mm
Tubo Superior, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front Center	576mm	576mm	583mm	591mm	605mm	613mm
Comprimento do Guiador	420mm	420mm	420mm	420mm	440mm	440mm
Altura do Tubo Horizontal ao Solo	741mm	777mm	798mm	816mm	836mm	854mm
Tubo Vertical - Centro do BB ao Topo	460mm	480mm	500mm	520mm	540mm	580mm
Rake da Forqueta	45mm	45mm	45mm	43mm	43mm	43mm
Drop do Eixo Pedaleiro	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Stack	523mm	523mm	547mm	574mm	606mm	631mm
Reach	380mm	385mm	387mm	395mm	402mm	408mm
Trail	62mm	57mm	57mm	56mm	56mm	53mm
Distância entre Eixos	970mm	970mm	978mm	986mm	1003mm	1013mm
Comprimento do Cranque	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Comprimento do Avanço	90mm	90mm	100mm	100mm	110mm	110mm
