S-Works Levo 4: E-MTB con assistenza SuperNatural e massima autonomia
Colore:
Taupe/Gunmetal Strata
Lo Specialized Science Club presenta la S-Works Levo 4, una mountain bike elettrica così avanzata che ti trasforma in un cyborg che pedala. Insieme diventate una forza soprannaturale capace di conquistare qualsiasi terreno off-road. L'assistenza alla pedalata, la trazione, il controllo e l'autonomia della Levo 4 sono i tuoi nuovi super poteri. Levo 4, Where Super Meets Natural.
Con un monitoraggio avanzato delle performance, una perfetta integrazione con le app partner e il controllo del sistema e-bike Turbo, l'app Specialized porta la tua esperienza di guida a un livello superiore.
Motore
All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power
Batteria
840wh battery
UI/Remoto

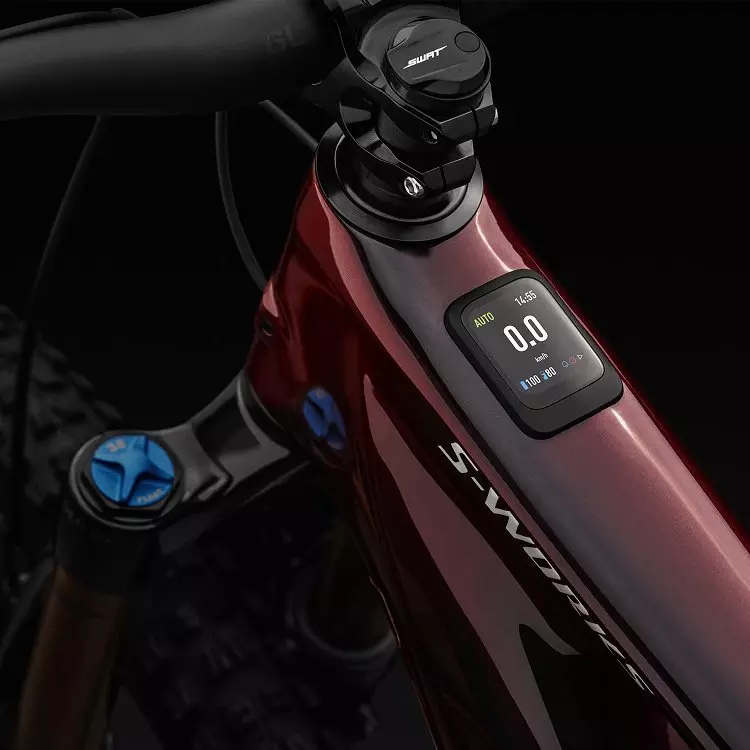

All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Caricatore
Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
Telaio
All new SW Levo 4 frame with carbon shock extension, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm
Collarino sella
Alloy, 38.6mm
Ammortizzatore posteriore
Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
Guarnitura
SRAM XX Carbon crank, 160mm, ISIS interface
Ingranaggi
SRAM 34t T-Type chainring, 104 BCD, steel
SWAT
SWAT internal downtube storage
Identificativo
218701
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
Peso
12.36 kg (27 lb, 4.0 oz)
Misura pesata
S4
*Pesi basati su telai verniciati di produzione come illustrato. I pesi effettivi varieranno in base al colore, alla dimensione del telaio e alla variazione dei componenti. Le specifiche sono soggette a modifiche senza preavviso.
S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|
Lunghezza Pedivella | 160mm | 160mm | 160mm | 160mm | 160mm |
Larghezza Manubrio | -mm | -mm | -mm | -mm | -mm |
Lunghezza attacco manubrio | -mm | -mm | -mm | -mm | -mm |
Larghezza sella | -mm | -mm | -mm | -mm | -mm |
Lunghezza reggisella | -mm | -mm | -mm | -mm | -mm |
Stack | 618mm | 626mm | 638mm | 652mm | 667mm |
Reach | 435mm | 455mm | 480mm | 505mm | 535mm |
Headtube Length | 95mm | 103mm | 117mm | 132mm | 149mm |
Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
Altezza movimento centrale | 350mm | 350mm | 350mm | 350mm | 350mm |
BB Drop | 29.5mm | 29.5mm | 29.5mm | 29.5mm | 29.5mm |
Trail | 132mm | 132mm | 132mm | 132mm | 132mm |
Lunghezza Forcella (intera) | 577mm | 577mm | 577mm | 577mm | 577mm |
Offset forcella / Rake | 44mm | 44mm | 44mm | 44mm | 44mm |
Avancorsa | 765mm | 789mm | 820mm | 851mm | 888mm |
Lunghezza Batticatena | 435mm | 435mm | 435mm | 435mm | 435mm |
Interasse | 1200mm | 1223mm | 1254mm | 1286mm | 1323mm |
Top-tube Length (horizontal) | 578mm | 599mm | 627mm | 655mm | 689mm |
Altezza Standover | 753mm | 754mm | 753mm | 758mm | 761mm |
Lunghezza piantone | 390mm | 405mm | 425mm | 445mm | 465mm |
Angolo Sella | 77° | 77° | 77° | 77° | 77° |
Saddle Height for Effective ST Angle | 690mm | 735mm | 780mm | 825mm | 870mm |
Max Seatpost Insertion | 274mm | 289mm | 313mm | 337mm | 357mm |
Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm |
Per gli avvisi di sicurezza, consulta la documentazione nella sezione Download manuali in questa pagina.
