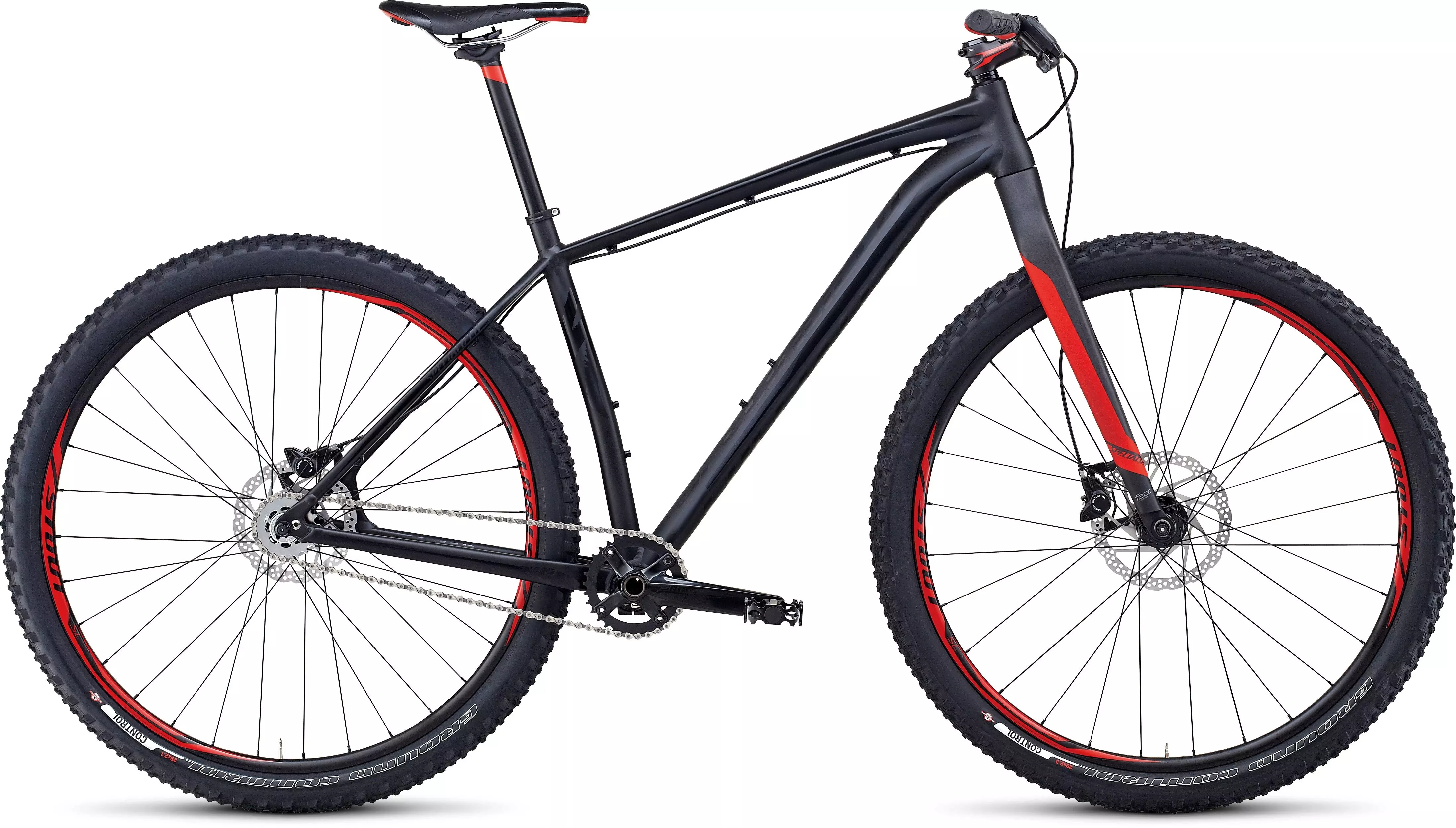

2014 Crave SL 29
0 Recenze
An all-new Crave frame, with the super-light Chisel fork, makes this singlespeed…
Barva:
Gloss Blk/Satin Blk/Red
Jaká je moje velikost?
Vyberte Velikost
Podrobnosti o produktu
An all-new Crave frame, with the super-light Chisel fork, makes this singlespeed specialist an incredible option for anyone looking to explore race courses with the simplicity of one gear.
New, fully butted, smooth-welded M4 Premium Aluminum frame is super-lightweight, stiff, and features XC 29er Geometry, integrated headset, tapered headtube for front-end stiffness, plus bridge-less seatstays for compliance over bumps
New, fully butted, smooth-welded M4 Premium Aluminum frame is super-lightweight, stiff, and features XC 29er Geometry, integrated headset, tapered headtube for front-end stiffness, plus bridge-less seatstays for compliance over bumps
Specialized Chisel rigid carbon fork with tapered steerer tube provides precise handling at the lightest possible weight
Specialized Chisel rigid carbon fork with tapered steerer tube provides precise handling at the lightest possible weight
Specialized Stout SL Disc 29" wheels feature double-wall rims with sealed bearings for lightweight, durable wheels
Shimano Deore hydraulic disc brakes use 180mm front rotor for increased braking power, while 160mm rear rotor keeps weight low. Shimano levers feature lever reach adjustment
Custom SRAM singlespeed specific crankset with 29er gearing and GXP bottom bracket offers lightweight and durable performance
Custom SRAM singlespeed specific crankset with 29er gearing and GXP bottom bracket offers lightweight and durable performance
Shimano Deore hydraulic disc brakes use 180mm front rotor for increased braking power, while 160mm rear rotor keeps weight low. Shimano levers feature lever reach adjustment
Specialized Stout SL Disc 29" wheels feature double-wall rims with sealed bearings for lightweight, durable wheels
Technické specifikace
FRAMESET
FRAME
New Specialized M4 Premium Aluminum, XC 29er Geometry, fully butted w/ smooth welds, tapered headtube and seat tube, forged post-mount 160mm disc dropouts, replaceable alloy derailleur hanger
HEADSET
1-1/8" upper and 1-1/2" lower threadless, Campy style, integrated full cartridge bearings
SEAT BINDER
Forged alloy, single bolt, 31.8mm
SUSPENSION
FORK
Specialized Chisel, carbon, monocoque, tapered carbon steerer, alloy dropouts, disc mount, OS28 hub compatible
WHEELS
RIMS
Disc 24", double wall, 23mm, sleeve joint, 28h
FRONT HUB
Forged alloy, double-sealed, ground race, QR, 28h
REAR HUB
Disc, alloy, Hi Lo flange, sealed bearings, steel cassette body, 28h
SPOKES
Stainless, 2.0, threadlock, 14g
FRONT TIRE
Specialized Ground Control, 60TPI, 2Bliss Ready, folding bead, 29x2.3"
REAR TIRE
Specialized Ground Control, 60TPI, 2Bliss Ready, folding bead, 29x2.1"
INNER TUBES
Standard, presta valve
DRIVETRAIN
CHAINRINGS
SRAM RED 22, 50/34
BOTTOM BRACKET
SRAM GXP, 68mm shell
CHAIN
KMC Z7
COCKPIT
STEM
Specialized 3D forged 6061 alloy, 4-bolt clamp, 6-degree rise, 60mm/70mm length, 31.8mm
HANDLEBARS
Specialized mini rise bar, double-butted 6061 alloy, 660/700mm wide, 12mm rise, 10-degree backsweep, 6-degree upsweep, 31.8mm clamp
SADDLE
Body Geometry Henge, steel rails, 143mm
SEATPOST
Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm
ACCESSORIES
PEDALS
Composite platform, w/ reflectors, 9/16"
*Hmotnosti jsou založeny na výrobě natřených rámu, jak je znázorněno na obrázku. Skutečné hmotnosti se budou lišit v závislosti na barevném provedení, velikosti rámu a variaci komponent. Specifikace se mohou změnit bez předchozího upozornění.
Geometrie
| 15.5 | 17.5 | 19 | 21 | 23 | |
|---|---|---|---|---|---|
| Délka horní trubky (horizontální) | 577mm | 604mm | 626mm | 650mm | 670mm |
| Délka horní trubky (aktuální) | 572mm | 584mm | 601mm | 622mm | 642mm |
| Délka sedlové trubky (od středu po vrchol) | 394mm | 445mm | 483mm | 533mm | 584mm |
| B-B Drop (vzdálenost mezi osami kol a středovým složením) | 63.5mm | 63.5mm | 63.5mm | 63.5mm | 63.5mm |
| Výška středového složení | 306.5mm | 306.5mm | 306.5mm | 306.5mm | 306.5mm |
| Rozvor | 1071mm | 1086mm | 1109mm | 1134mm | 1154mm |
| Výška rámu v rozkroku | 758.3mm | 790.5mm | 818.9mm | 853.2mm | 887.8mm |
| Stack (Výška od vrcholu hlavové trubky po středové složení) | 617mm | 626mm | 641mm | 655mm | 674mm |
| Dosah | 400mm | 412mm | 430mm | 450mm | 464mm |
| Délka hlavové trubky | 110mm | 100mm | 115mm | 130mm | 150mm |
| Úhel hlavové trubky | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° |
| Délka řetězové vzpěry | 442mm | 442mm | 442mm | 442mm | 442mm |
| Úhel sedlové trubky | 74° | 73° | 73° | 73° | 73° |
| Délka klik | 170mm | 175mm | 175mm | 175mm | 175mm |
| Šířka řídítek | 700mm | 700mm | 700mm | 700mm | 700mm |
| Délka představce | 60mm | 60mm | 70mm | 70mm | 90mm |
| Délka sedlovky | 350mm | 350mm | 400mm | 400mm | 400mm |
Manuály ke stažení
Bezpečnostní upozornění najdeš v sekci manuály ke stažení na této stránce.
