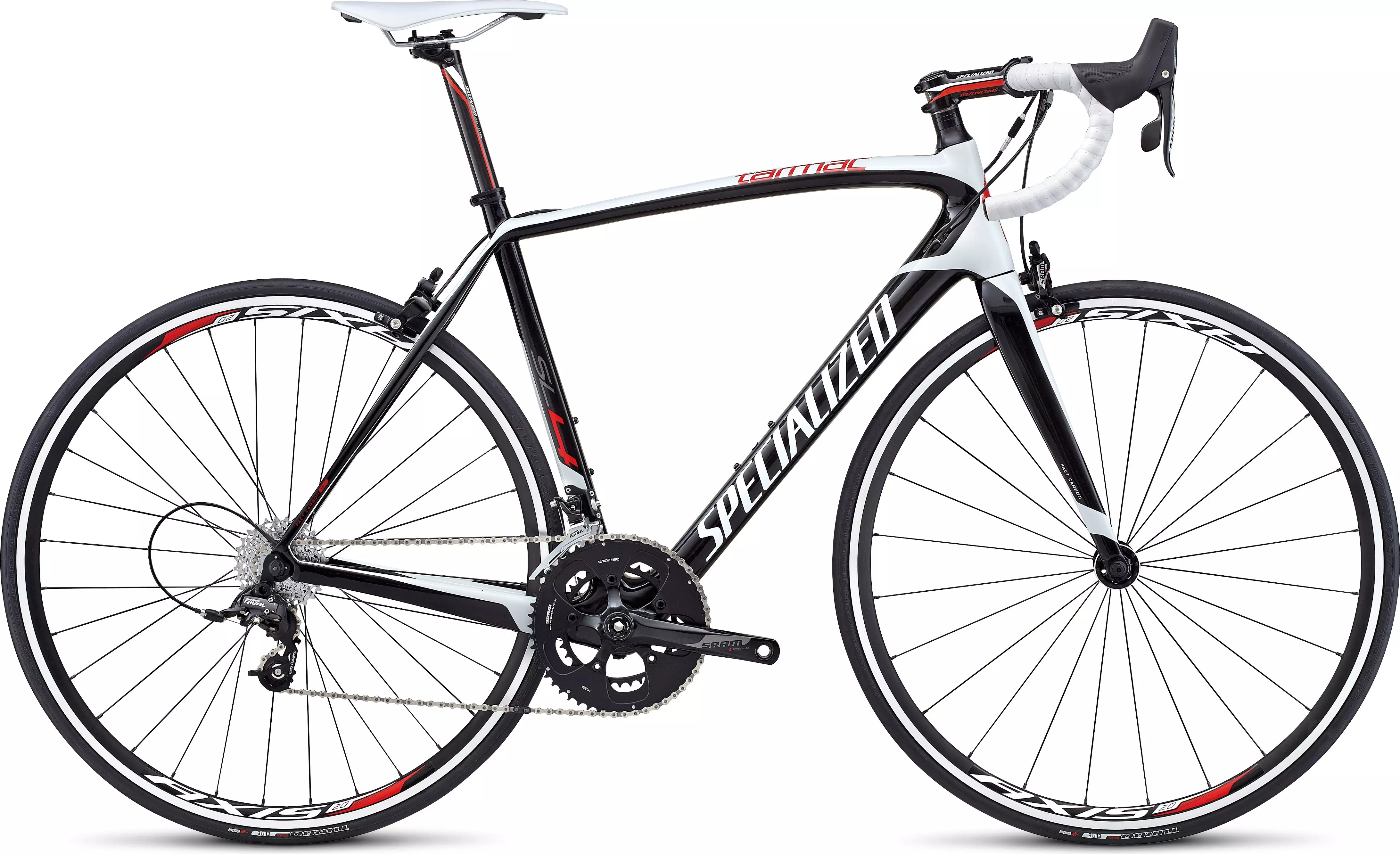

2014 Tarmac SL4 Elite Rival

0 Avis

Couleur:

Gloss White/Carbon/Red

Quelle est ma taille ?

Impériale

Métrique

Entrez vos mensurations et nous calculerons votre taille idéale.

Hauteur:

Pour un résultat plus précis, inclure la longueur de votre tibia.

Sélectionnez un(e) Taille

Choisissez la couleur et la grandeur que vous voulez pour pour le chercher dans l'inventaire du magasin le plus proche

Indisponible

Cet article est indisponible via Trouver en magasin

Livrer à -----

Caractéristiques du produit

The Tarmac SL4 is a pure and unbridled race machine. It climbs effortlessly, descends confidently, and sprints ferociously. It's the lightest, stiffest frame we make and it shows as soon as you push on the pedals. Bottom line, you'll be faster on this bike. There's a reason it's the weapon of choice for the Saxo-Tinkoff, Astana and Omega Pharma-Quick-Step Pro Tour teams.

Specialized SL4 FACT 9r carbon frame with uniquely shaped, tapered headtube and OSBB: now even stiffer and lighter for pure, unbridled speed and power, paired with a tapered, full-monocoque FACT carbon fork for ultimate steering precision
Specialized Turbo Elite 23c tires roll like a racing tire, but offer incredible durability and puncture resistance through BlackBelt protection

Spécifications techniques

FRAMESET

FRAME

Specialized SL4 FACT 9r carbon, FACT construction, compact race design, 1-3/8"" lower bearing, OSBB

FORK

Specialized FACT carbon full monocoque, OS race for 1-3/8"" bearing

HEADSET

1-1/8"" upper and 1-3/8"" lower, Cr-Mo cartridge bearings integrated w/ headset, 20mm cone spacer, w/ 20mm of spacers

SEAT BINDER

Forged alloy, 32.6mm

WHEELS

FRONT WHEEL

AXIS 2.0

REAR WHEEL

AXIS 2.0

FRONT TIRE

Specialized Turbo Elite, 60TPI, foldable aramid bead, BlackBelt protection, 700x23c

REAR TIRE

Specialized Turbo Elite, 60TPI, foldable aramid bead, BlackBelt protection, 700x23c

INNER TUBES

Standard presta valve

DRIVETRAIN

SHIFT LEVERS

SRAM S series, 10-speed

FRONT DERAILLEUR

SRAM Rival, braze-on, 10-speed

REAR DERAILLEUR

SRAM Rival, 10-speed

CASSETTE

SRAM PG 1030, 11-28

CRANKSET

SRAM S-550, alloy, BB30

CHAINRINGS

52/36

BOTTOM BRACKET

OS integrated, sealed bearings

CHAIN

SRAM PC 1031, w/ PowerLink

COCKPIT

HANDLEBARS

Specialized Tarmac Comp, alloy, 140mm drop, 85mm reach

STEM

Specialized Expert Pro-Set, 3D forged aluminum, 4-position adjustable, 4-bolt, 31.8mm

TAPE

Specialized Classic Wrap

SADDLE

Body Geometry Toupé Comp Gel, hollow Cr-Mo rails, 143mm

SEATPOST

Specialized Comp, carbon, 27.2mm

BRAKES

FRONT BRAKE

Mechanical

REAR BRAKE

Mechanical

BRAKE LEVERS

Mechanical

ACCESSORIES

PEDALS

Nylon flat test ride, loose ball, w/ reflectors

* Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.

Géométries

	490.0	520.0	540.0	560.0	580.0	610.0
Angle tube de selle	75.5°	74°	73.5°	73.25°	73°	72.5°
Hauteur de douille de direction	100mm	120mm	140mm	160mm	190mm	210mm
Longueur tube de selle - centre à sommet	300mm	300mm	350mm	350mm	350mm	350mm
Angle de direction	72.25°	73°	73°	73.5°	73.5°	74°
Longueur bases	405mm	405mm	405mm	405mm	407mm	410mm
Longueur tube horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Boîte de pédalier – axe roue avant	576mm	576mm	583mm	591mm	605mm	612mm
Largeur de cintre	400mm	420mm	420mm	420mm	440mm	440mm
Hauteur cadre à l’entrejambe	730mm	755mm	775mm	795mm	826mm	850mm
Longueur tube de selle - centre boîte de pédalier à sommet	460mm	490mm	510mm	530mm	550mm	580mm
Déport de fourche	45mm	45mm	45mm	43mm	43mm	43mm
B-B Drop	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Stack	504mm	526mm	543mm	564mm	591mm	612mm
Reach	386mm	386mm	387mm	395mm	402mm	408mm
Chasse	62mm	57mm	57mm	56mm	56mm	53mm
Empattement	970mm	970mm	978mm	986mm	1003mm	1013mm
Longueur manivelles	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Longueur de potence	75mm	90mm	100mm	100mm	110mm	110mm
