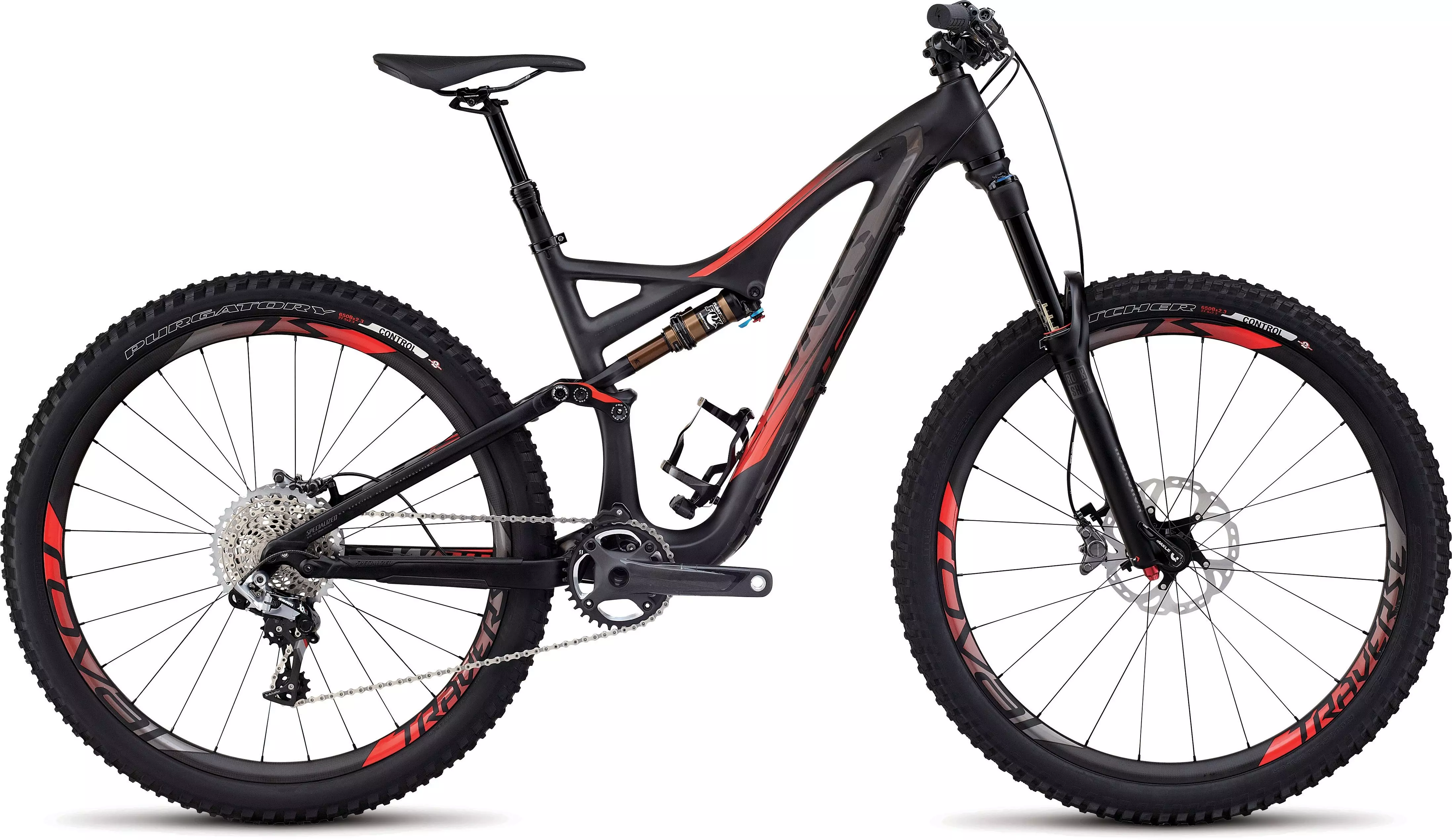

2015 S-Works Stumpjumper FSR EVO 650b

0 Avis

Couleur:

SATIN/GLOSS CARBON CHARCOAL/ROCKET RED

Quelle est ma taille ?

Impériale

Métrique

Entrez vos mensurations et nous calculerons votre taille idéale.

Hauteur:

Pour un résultat plus précis, inclure la longueur de votre tibia.

Sélectionnez un(e) Taille

Choisissez la couleur et la grandeur que vous voulez pour pour le chercher dans l'inventaire du magasin le plus proche

Indisponible

Cet article est indisponible via Trouver en magasin

Livrer à -----

Caractéristiques du produit

The world's most capable 650b trail bike, the full-FACT carbon S-Works Stumpjumper FSR Carbon 650b has 150mm of plush and efficient FSR suspension, a FOX CTD Factory shock with AUTOSAG, custom RockShox Pike RCT3 650b fork, and new carbon Roval Traverse Fattie wheelset.

S-Works All-Mountain carbon bar is 750mm wide for stable handling on rough terrain
SRAM's XX1 11-speed drivetrain provides the pinnacle in high-performance shifting
SRAM XX1 11-speed, trigger for precise shifting and improved efficiency
Custom FOX Float CTD Factory shock w/ AUTOSAG, Climb, Trail, Descend tunes for total control
Roval Traverse SL Fattie 650b carbon wheels w/ 30mm inner rim width for maximum stability
Internally routed Specialized Command Post IR w/ remote adjusts saddle height on-the-fly
The custom color—Rocket Red—is designed to naturally age over time. It will exhibit splashes of a dark rich color when exposed to prolonged direct sunlight. This finish is deliberate and therefore not covered under the traditional warranty policy.
Custom RockShox Pike RCT3 650b fork smooths the trail with 150mm of plush suspension
Shimano XTR Trail hydraulic disc brakes w/ Ice Tech rotors are lightweight and powerful
Specialized Butcher Control 2.3" tire features a DH-inspired tread for rough singletrack
Specialized Slaughter Control, 2Bliss Ready, 2.3" tire for fast-rolling performance with bite
FACT 9m carbon frame w/ 150mm of smooth FSR travel for the sport's most versatile trail 650b bike

Spécifications techniques

FRAMESET

FRAME

FACT 9m carbon, 650b EVO Geometry, FACT IS construction, M5 rear triangle, tapered headtube, PF30 BB, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel

SWAT

Bottle cage w/ SWAT Technology

HEADSET

1-1/8"" and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

Specialized 7050 alloy, single bolt, 34.9mm

SUSPENSION

REAR SHOCK

Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, Kashima coating, Climb, Trail, Descend settings and rebound adj., 194x51mm

FORK

Custom RockShox Pike RCT3 650b, Solo Air spring, tapered alloy steerer, w/ lockout, 2-stage compression, rebound adj., 15mm thru-axle, 150mm travel

WHEELS

RIMS

Roval Traverse SL Fattie 650b, carbon, 30mm inner width, 24/28h

FRONT HUB

Roval Traverse, alloy body, 15/20mm thru-axle, 24h

REAR HUB

Roval Traverse 142+, XX1 driver body, DT Swiss 6-degree quick engagement Star Ratchet, 12mm thru-axle, 28h

SPOKES

DT Swiss Revolution

FRONT TIRE

Specialized Butcher Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""

REAR TIRE

Specialized Slaughter Control, 60TPI, 2Bliss Ready, folding bead, 650bx2.3""

DRIVETRAIN

REAR DERAILLEUR

SRAM XX1, 11-speed

SHIFT LEVERS

SRAM XX1, 11-speed, trigger

CASSETTE

SRAM XX1, 11-speed, 10-42

CHAIN

SRAM PC-XX1, 11-speed, w/ PowerLink

CRANKSET

S-Works FACT carbon, XX1 style ring, OSBB, 34T

BOTTOM BRACKET

PF30, sealed cartridge

COCKPIT

SADDLE

Body Geometry Henge Expert, hollow Ti rails, 143mm

SEATPOST

Command Post IR w/ new SRL lever, 3-position height adjustable, alien head design, bottom mount cable routing, w/ remote adjust SRL, 30.9mm, S: 100mm travel, Others: 125mm

STEM

Syntace F109, 6-degree rise

HANDLEBARS

S-Works All-Mountain, low rise, carbon, 8-degree backsweep, 6-degree upsweep, 31.8mm

GRIPS

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL

BRAKES

FRONT BRAKE

Shimano XTR Trail, hydraulic disc, Ice Tech Ti-metal pads w/ alloy back/fin, Ice Tech rotor, S/M: 180mm, Others: 200mm

REAR BRAKE

Shimano XTR Trail, hydraulic disc, Ice Tech Ti-metal pads w/ alloy back/fin, Ice Tech rotor, S/M: 160mm, Others: 180mm

BRAKE LEVERS

Shimano XTR, carbon lever

ACCESSORIES

PEDALS

Resin test ride, w/ toe clips, CEN std.

* Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.

Géométries

	S	M	L	XL
Longueur tube (horizontal)	568mm	595mm	620mm	643mm
Seat Tube Angle (Effective)	74°	74°	74°	74°
Hauteur de la douille de direction	100mm	110mm	135mm	155mm
Top Tube Length (Actual)	530mm	555mm	579mm	603mm
Seat Tube Angle (Actual)	68.4°	68.8°	69.2°	69.7°
Seat Tube Length - Center to Top	396mm	430mm	468mm	523mm
Boîte de pédalier - sol	327mm	327mm	327mm	327mm
Empattement	1107mm	1137mm	1165mm	1193mm
Hauteur cadre à l’entrejambe	738mm	729mm	738mm	754mm
Stack	602mm	619mm	642mm	661mm
Reach	401mm	426mm	445mm	467mm
Angle de direction	68°	68°	68°	68°
Longueur bases	435mm	435mm	435mm	435mm
Longueur manivelles	170mm	175mm	175mm	175mm
Largeur de cintre	750mm	750mm	750mm	750mm
Longueur de potence	60mm	60mm	75mm	75mm
Longueur de tige de selle	380mm	430mm	430mm	430mm
