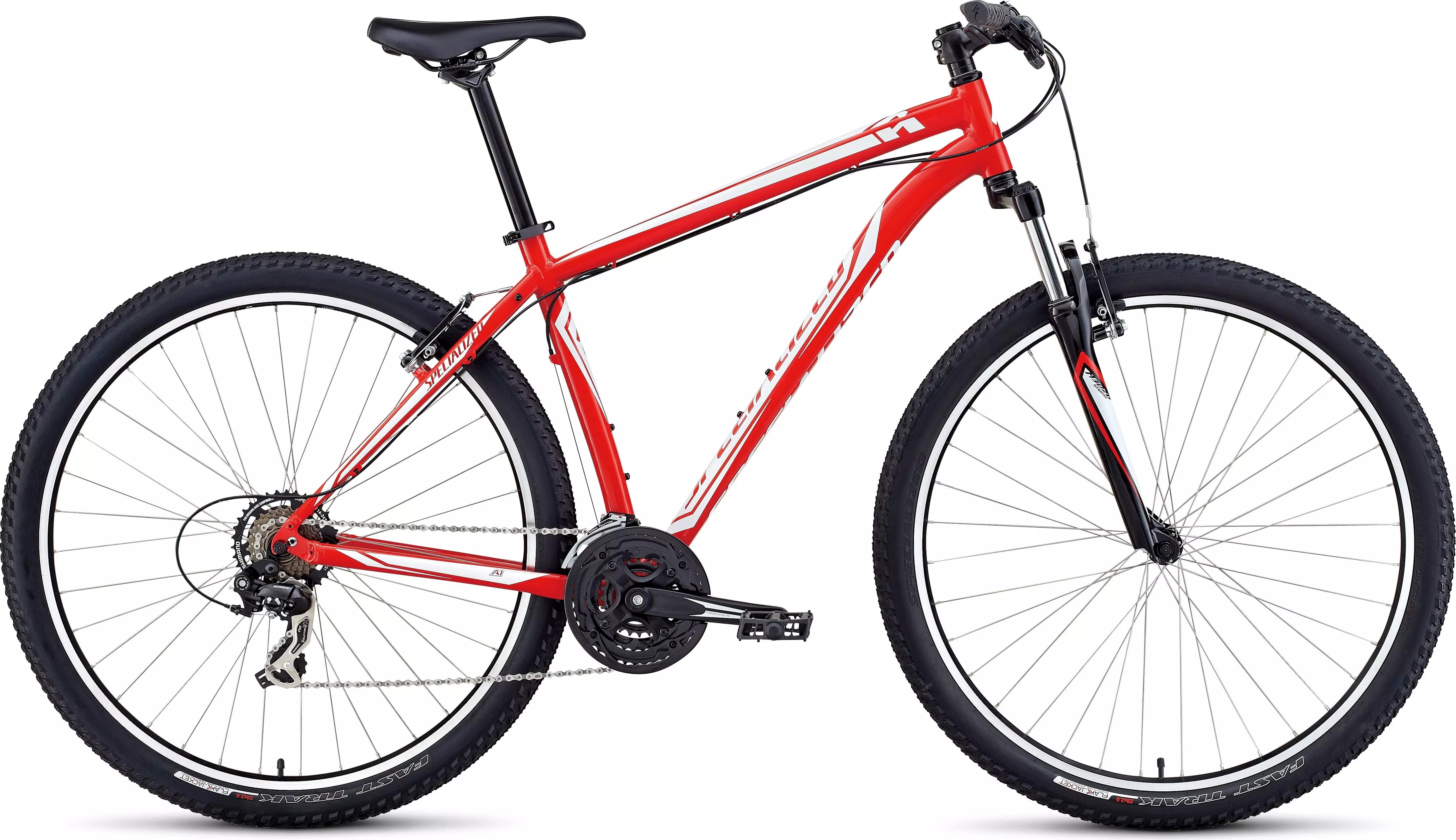

2014 Hardrock 29

0 Avis

Couleur:

Gloss Red/Wht

Taille:

One Size

Choisissez la couleur et la grandeur que vous voulez pour pour le chercher dans l'inventaire du magasin le plus proche

Indisponible

Cet article est indisponible via Trouver en magasin

Livrer à -----

Caractéristiques du produit

With a smooth SR Suntour fork featuring lockout, powerful brakes, and double-walled alloy wheels, the Hardrock is prepared for mountain trails and urban jungles.

A1 Premium Aluminum 29er frame with ORE downtube for a lighter, more compliant and durable bike, with disc mounts for upgrading
75mm-travel SR Suntour coil-sprung fork with preload adjustment and size-specific spring rates means the suspension is dialed for riders of all sizes
Light and durable double-wall 29" alloy rims are tough enough to handle the rough stuff
Specialized Fast Trak Sport tires use Adaptive Tread Technology for lower rolling resistance, but have plenty of grip for confidence on the trail
Shimano 7-speed, 14-34 freewheel offers a wide gear range while keeping weight low
Specialized Body Geometry Hardrock saddle has ample padding for comfort, and front/rear bumpers for durability

Spécifications techniques

FRAMESET

SEAT BINDER

Forged alloy, 34.9mm, QR, nylon washer

HEADSET

1-1/8"" threadless, loose ball

FRAME

Specialized A1 Premium Aluminum, 29er Geometry, ORE downtube, externally relieved headtube, forged dropouts, reinforced disc mount, replaceable alloy derailleur hanger

SUSPENSION

FORK

SR Suntour M3020, coil/MCU spring, steel steerer, preload adj., 1 pc. alloy V-brake only lower, 25.4mm steel stanchions, mini boot seals, 75mm travel

WHEELS

SPOKES

Stainless, 14g (2.0mm)

FRONT TIRE

Specialized Fast Trak Sport, 29x2.0"", wire bead, 40TPI

REAR TIRE

Specialized Fast Trak Sport, 29x2.0"", wire bead, 40TPI

RIMS

HR V-brake 29"", double-wall, CNC braking surface, 25mm, pin joint, 36h

FRONT HUB

V-brake, alloy, sealed, loose ball, steel axle, QR, 36h

REAR HUB

V-brake, alloy, sealed, loose ball, steel axle, QR, 36h

INNER TUBES

Standard Schrader valve

DRIVETRAIN

CHAIN

KMC Z7

FRONT DERAILLEUR

Shimano Tourney, 7-speed, 34.9mm clamp, top-swing, dual-pull

REAR DERAILLEUR

Shimano Tourney, 7-speed

CHAINRINGS

42/34/24, steel

BOTTOM BRACKET

Square taper, cartridge bearings, 68mm shell

SHIFT LEVERS

Shimano ST-EF51, 7-speed trigger, w/ integrated brake lever

CRANKSET

Alloy, square taper spindle

CASSETTE

Shimano, 7-speed freewheel, 14-34

COCKPIT

STEM

Alloy, 4-bolt clamp, 10-degree rise, 25.4mm

GRIPS

Specialized Body Geometry XCT, Kraton w/ gel, 132mm

SEATPOST

Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, 350mm/400mm

HANDLEBARS

Specialized flat bar, alloy, 640mm/660mm wide, 8-degree backsweep, 4-degree upsweep, 25.4mm

SADDLE

Specialized Body Geometry Hardrock, steel rails, 143mm

BRAKES

FRONT BRAKE

Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull

REAR BRAKE

Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull

BRAKE LEVERS

Shimano, included w/ shifter

ACCESSORIES

PEDALS

Composite platform, w/ reflectors, 9/16""

* Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.

Géométries

	15.5	17.5	19.0	21.0	23.0
Longueur tube (horizontal)	574mm	591mm	610mm	640mm	660mm
Seat Tube Angle (Effective)	74.25°	73°	73°	73°	73°
Top Tube Length (Actual)	551mm	552mm	568mm	596mm	631mm
Seat Tube Angle (Actual)	73°	72°	72°	72°	72°
Angle de tube de selle (effectif)	394mm	444mm	483mm	533mm	584mm
Boîte de pédalier - axe de roue	68.5mm	68.5mm	68.5mm	68.5mm	68.5mm
Boîte de pédalier - sol	301mm	301mm	301mm	301mm	301mm
Empattement	1072mm	1072mm	1091mm	1122mm	1142mm
Hauteur cadre à l’entrejambe	750mm	783mm	808mm	846mm	884mm
Stack	624mm	626mm	635mm	654mm	673mm
Reach	383mm	388mm	404mm	427mm	441mm
Longueur de douille de direction	100mm	100mm	110mm	130mm	150mm
Angle de direction	70.5°	71°	71°	71°	71°
Longueur bases	450mm	450mm	450mm	450mm	450mm
Longueur manivelles	170mm	175mm	175mm	175mm	175mm
Largeur de cintre	640mm	660mm	660mm	660mm	660mm
Longueur de potence	60mm	80mm	80mm	100mm	100mm
Longueur de tige de selle	350mm	350mm	400mm	400mm	400mm
