Demo 8 I Carbon

2018 Demo 8 I Carbon

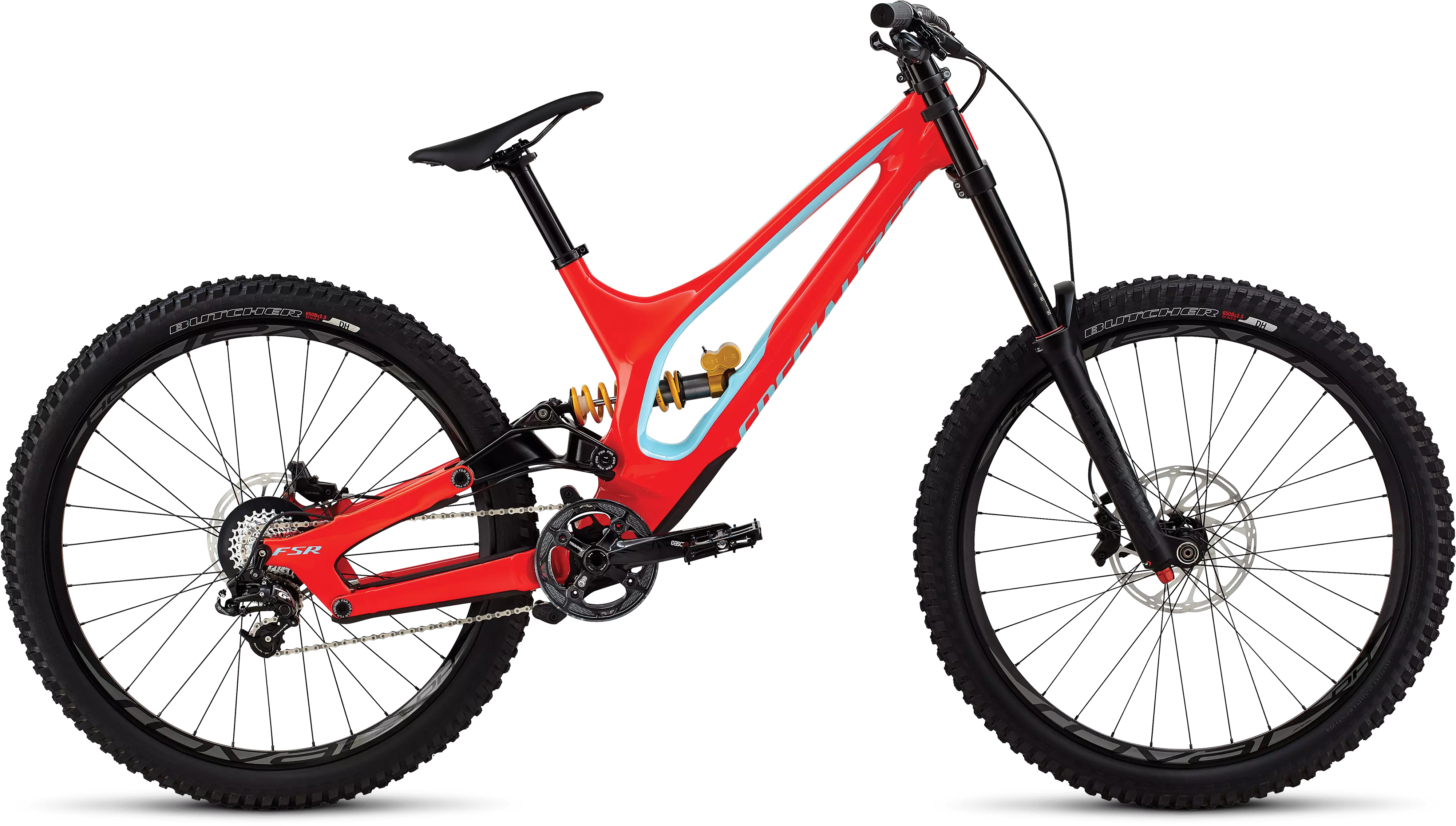

Name: Demo 8 I Carbon
Brand: Specialized
Price: 7579 CAD
Availability: OutOfStock
Rating: 0 (0 reviews)

Downhill racing is a whole different beast. With insane rock gardens, gnarly ruts and roots, crazy drops, and often uncontrollable speeds, you need to have as much confidence in your bike as you do in yourself. But thankfully, the Demo 8 I Carbon gives you the confidence you need to get down the run as quickly as possible.

When it comes to the stiffness, light overall weight, and strength required for downhill riding, you just can't beat a carbon fiber frame construction. That's why some of our best carbon fiber (FACT 10m) was used to create the acclaimed Demo 8 I Carbon.

It's also been built off of our S3 27.5 geometry, ensuring a roomy top tube for added control, ultra-short, nimble chainstays, a low bottom bracket that keeps you feeling planted, and a slack front end that provides the utmost in responsive handling at speed.

For the suspension, this Demo features 200mm up front via a RockShox BoXXer Team 27.5 fork and 200mm of travel at the rear controlled by a revolutionary, custom Öhlins TTX rear shock. Together, the combo ensures that you'll be able to rocket over any terrain with confidence.

And when you add in a build kit consisting of SRAM's powerful Guide R brakes, a durable one-by SRAM drivetrain, and our legendary Butcher & Slaughter DH tires, you start to get the picture of why our Demo 8s have won so many races.

Spécifications techniques

FRAMESET

FRAME

FACT 10m carbon, S3 Geometry, carbon front triangle and seatstay, new Team alloy link, FACT IS construction, BB30, full internal cable routing, 135mm dropouts, lipped and sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel

SEAT BINDER

Alloy, 36.9mm

WHEELS

FRONT HUB

Specialized disc, alloy flange & disc mount, sealed cartridge bearings, 20mm thru-axle, 32h

RIMS

Roval 27.5, alloy, 24mm internal width

INNER TUBES

Standard, Presta valve

FRONT TIRE

Butcher, DH casing, 27.5 b x2.5", 60 TPI, wire bead

REAR HUB

Specialized, sealed cartridge bearings, 12x135mm spacing, 32h

REAR TIRE

Butcher, DH casing, 27.5 b x2.3", 60 TPI, wire bead

SPOKES

DT Swiss Industry, stainless, 3-cross, 2.0"

SUSPENSION

FORK

RockShox BoXXer Team 27.5, coil spring, S: Extra soft spring, M: Soft spring, L: Medium spring, XL: Firm spring, 200mm of travel, Charger Damper, compression adjust, rebound adjust, alloy steerer, 48mm offset, Maxle Lite DH

REAR SHOCK

Custom Öhlins TTX, Twin-Tube design, high- and low-speed compression adjust, rebound adjust, 9.5x3"

DRIVETRAIN

CRANKSET

Custom SRAM Descendant, BB30, 7050 alloy arms w/ Gamut bashguard, 165mm

CHAIN

SRAM PC-1031, 10-speed w/ PowerLink

CASSETTE

SRAM PG-1030, 10 speed, 11-36 last three cogs removed

SHIFT LEVERS

SRAM X7, trigger

REAR DERAILLEUR

SRAM GX, Type 2.1, short cage

BOTTOM BRACKET

SRAM BB30, 83mm

CHAINRINGS

SRAM, 36T

COCKPIT

GRIPS

Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

HANDLEBARS

Specialized DH, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 800mm, 31.8mm clamp

STEM

Specialized Direct Mount DH Stem, two-piece, forged alloy, 45mm

SEATPOST

Specialized, 6061 alloy, 2-bolt clamp, 0mm setback, 30.9mm

SADDLE

Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm

ACCESSORIES

PEDALS

Specialized Bennies, 6061 alloy body, sealed cartridge bearings, 4.5mm removable pins

BRAKES

REAR BRAKE

SRAM Code R, 4-piston caliper, hydraulic disc, metallic pads, 180mm rotor

FRONT BRAKE

SRAM Code R, 4-piston caliper, hydraulic disc, metallic pads, 200mm rotor

* Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.

Géométries

	SHORT	MEDIUM	LONG	EXTRA LONG
Crank Length	165mm	165mm	165mm	165mm
Handlebar Width	800mm	800mm	800mm	800mm
Stem Length	45mm	45mm	45mm	45mm
Saddle Width	143mm	143mm	143mm	143mm
Seatpost Length	300mm	300mm	300mm	300mm
Stack	614mm	614mm	614mm	614mm
Reach	395mm	420mm	440mm	460mm
Head Tube Length	105mm	105mm	105mm	105mm
Head Tube Angle	63.5°	63.5°	63.5°	63.5°
BB Height	342mm	342mm	342mm	342mm
BB Drop	12mm	12mm	12mm	12mm
Trail	118mm	118mm	118mm	118mm
Fork Length, Full	590mm	590mm	590mm	590mm
Fork Rake/Offset	52mm	52mm	52mm	52mm
Front Center	754mm	779mm	799mm	819mm
Chainstay Length	430mm	430mm	430mm	430mm
Wheelbase	1183mm	1208mm	1228mm	1248mm
Top Tube Length, Horizontal	571mm	596mm	616mm	636mm
Bike Standover Height	698mm	698mm	698mm	698mm
Seat Tube Length	367mm	367mm	367mm	367mm
Seat Tube Angle	74°	74°	74°	74°
