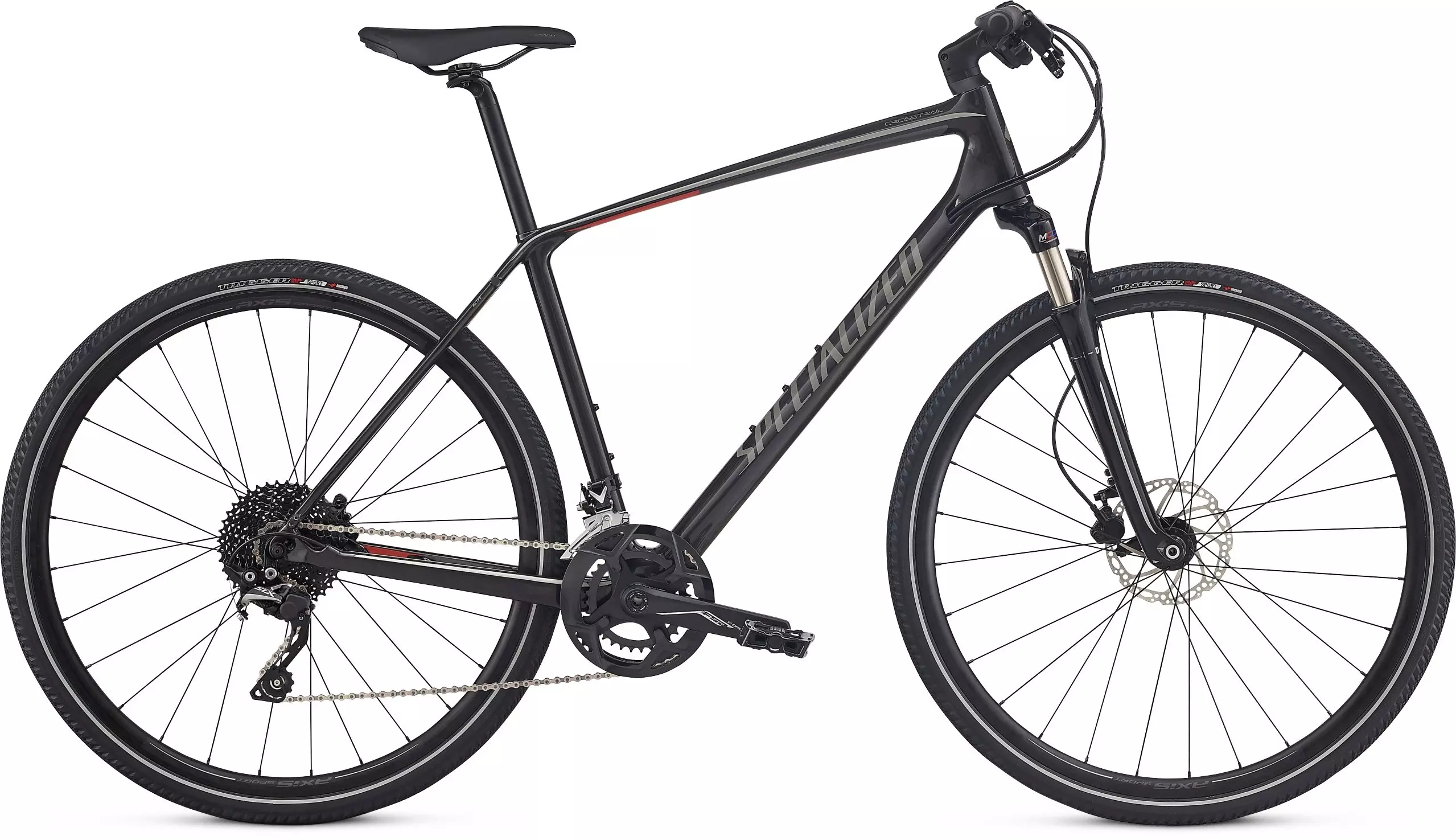

frCrossTrail Elite Carbon
1 999,00 $
Le plus important dans la pratique Fitness, c'est l'activité physique, pas le type de terrain. Alors, pour que vous puissiez aborder aussi bien le bitume que la terre, nous avons équipé notre Crosstrail Elite Carbon d'une fourche suspendue blocable au guidon et dotée de la technologie Fitness Brain pour une utilisation rapide, efficace et intuitive sur toutes les surfaces. Pour accompagner ce mélange de confort et de rapidité, le cadre est réalisé dans une fibre de carbone FACT 9r ultra légère avec une géométrie conçue pour que vous trouviez la bonne position la minute même où vous montez sur le vélo. Avec en plus un choix de composants orientés performances d'origine notamment Shimano, de puissants freins à disque hydrauliques TRP et des plots pour garde-boue/porte-bagages, vous commencerez très vite à rouler en toute sérénité, sur toutes les surfaces.
- Working with our Body Geometry team, we designed a frame that strikes the optimal balance between comfort and efficiency. The FACT 9r carbon fiber keeps the bike ultra-light and efficient, while the rack, fender, and disc mounts give you an incredibly versatile package.
- An SR Suntour NCX fork w/ Fitness BRAIN technology features 60mm of coil-sprung travel that takes the sting out of bumpy terrain, while an integrated remote lockout is coupled with our Fitness BRAIN technology to promote more climbing and pedaling efficiency.
- Braking duties are handled by TRP Flow Set Control hydraulic Disc Brakes to ensure effective, consistent, and reliable power through any kind of terrain or condition.
Spécifications techniques
Téléchargements manuels
Spécifications techniques
DRIVETRAIN
| CHAIN | KMC X10, 10-speed w/ Missing Link™ |
| BOTTOM BRACKET | 68mm, BSA |
| CRANKSET | FSA V-Drive, 2-piece |
| FRONT DERAILLEUR | microSHIFT XCD, 31.8mm clamp, 11-speed |
| SHIFT LEVERS | microSHIFT, Flow Set Control, 10-speed |
| CASSETTE | Sunrace, 10-speed, 11-40t |
| CHAINRINGS | 44/32T, alloy outer ring, steel inner ring |
| REAR DERAILLEUR | Shimano SLX, Shadow Plus, SGS cage, 10-speed |
SUSPENSION
| FORK | SR Suntour NCX w/ Specialized Fitness Brain technology, 60mm of travel, 1-1/8" steerer, 12mm thru-axle, fender mounts |
WHEELS
| FRONT HUB | Alloy, 12x100mm thru-axle, 6-bolt disc, sealed bearing, 28h |
| REAR HUB | Alloy, 135mm QR, 6-bolt disc, 11-speed freehub, loose ball bearing, 28h |
| INNER TUBES | Presta, 48mm valve |
| SPOKES | Stainless, 14g |
| RIMS | Axis Sport Disc |
| FRONT TIRE | Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm |
| REAR TIRE | Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm |
COCKPIT
| SADDLE | Specialized Canopy Comp, Hollow Cr-Mo rails |
| SEATPOST | Alloy, 2-bolt, 25mm offset, 27.2mm |
| STEM | Specialized Flowset, integrated, 3D forged alloy, 4-bolt, 12-degree rise, 31.8mm clamp |
| HANDLEBARS | Double-butted alloy, 9-degree backsweep, 31.8mm |
| GRIPS | Specialized Body Geometry Flow Set Control grips, lock-on |
BRAKES
| FRONT BRAKE | TRP Flow Set Control, hydraulic disc, metallic pads, post mount, 160mm rotor |
| REAR BRAKE | TRP Flow Set Control, hydraulic disc, resin pads, flat mount, 140mm rotor |
ACCESSORIES
| PEDALS | Specialized Fitness platform, alloy |
FRAMESET
| SEAT BINDER | Included w/ frame |
| FRAME | Specialized FACT 9r carbon, Fitness Geometry, internal cable routing, integrated headset, flat mount disc, rack mounts, Plug + Play fender mounts |
* Les caractéristiques sont sujettes à changements sans préavis.
Géométries
CrossTrail - Géométries
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Stem Length | 60mm | 75mm | 75mm | 90mm |
| Seatpost Length | 350mm | 350mm | 350mm | 350mm |
| Saddle Width | 155mm | 155mm | 155mm | 155mm |
| Handlebar Width | 660mm | 660mm | 660mm | 660mm |
| Reach | 390mm | 400mm | 412mm | 426mm |
| Top Tube Length, Horizontal | 571mm | 586mm | 604mm | 624mm |
| Stack | 592mm | 608mm | 627mm | 646mm |
| Wheelbase | 1068mm | 1078mm | 1097mm | 1118mm |
| Chainstay Length | 445mm | 445mm | 445mm | 445mm |
| Front Center | 631mm | 641mm | 660mm | 680mm |
| BB Drop | 65mm | 65mm | 65mm | 65mm |
| Seat Tube Angle | 73° | 73° | 73° | 73° |
| Head Tube Angle | 70° | 70.5° | 70.5° | 70.5° |
| Head Tube Length | 110mm | 125mm | 145mm | 165mm |
| Seat Tube Length, BB Center to Top | 372mm | 422mm | 472mm | 522mm |
| Fork Rake | 43mm | 43mm | 43mm | 43mm |
| Standover Height | 732mm | 769mm | 806mm | 840mm |
| Trail | 75mm | 75mm | 75mm | 78mm |
