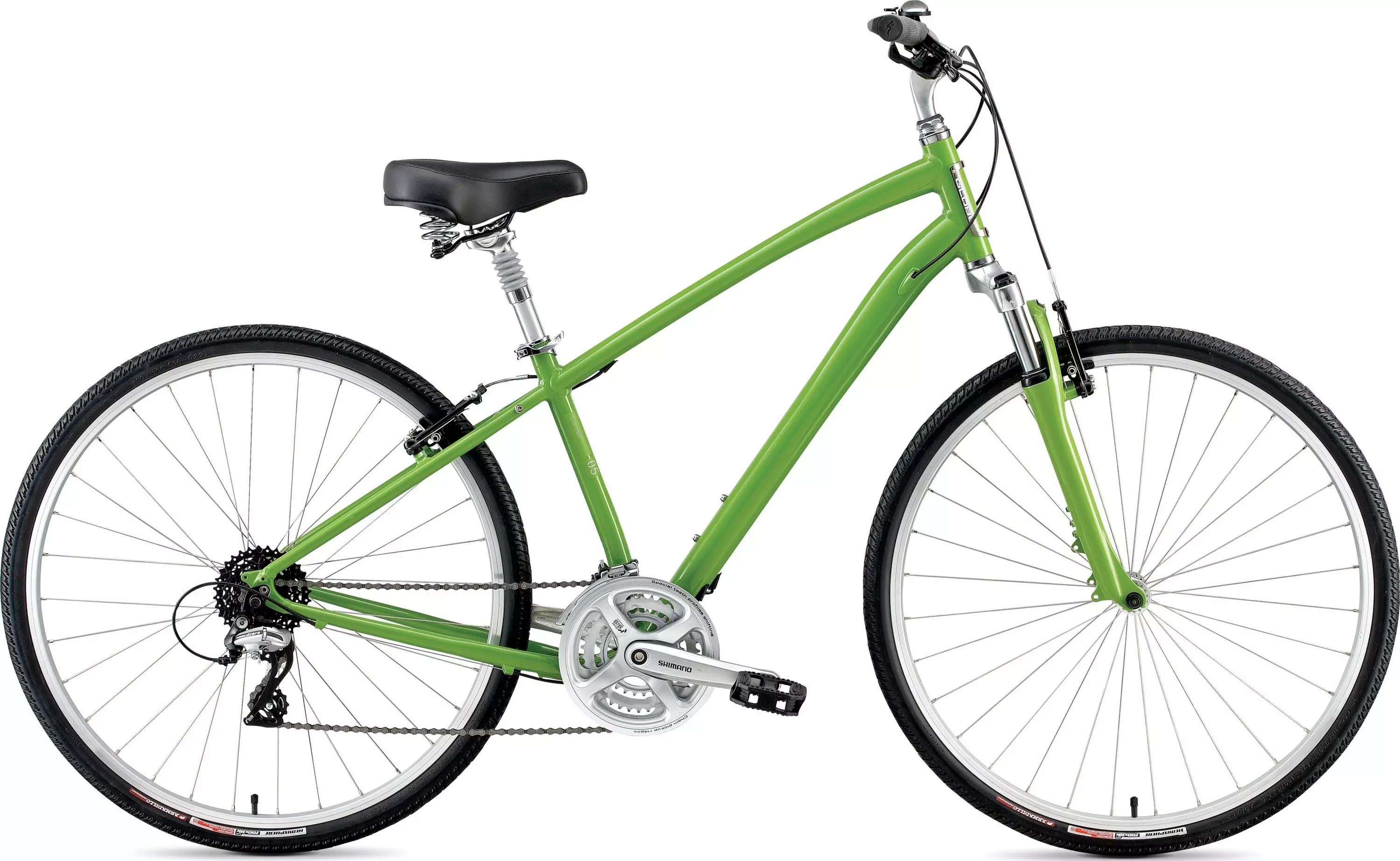

2010 Carmel 700 5
0 Avis
Riders looking for nothing more than carefree, open-air goodness will find the…
Couleur:
Green
Quelle est ma taille ?
Sélectionnez un(e) Taille
Caractéristiques du produit
Riders looking for nothing more than carefree, open-air goodness will find the plush, cruiser-style CARMEL is the perfect partner for beaches, bike paths, dirt and gravel trails.
Suspension seatpost takes the edge off bumpy roads
Body Geometry Comfort grips alleviate hand pain and tingling fingers
Shimano Acera 8-speed rear derailleur provides sure-fire shifts every time
Globe A1 Premium Aluminum frame with Ground Control geometry for an upright, stable seating position
Globe Comfort Plus saddle uses springs and dual-density foam with a wide platform for amazing comfort
63mm-travel suspension fork uses coil/MCU springs for a smooth ride and external preload adjustment for easy dial-in
Smooth-rolling Specialized Hemishphere 700c tires use tried and true Armadillo casing to all but eliminate punctures
Spécifications techniques
FRAMESET
FRAME
Globe A1 Premium Aluminum, ground control geometry, 700c low entry comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable hanger
FORK
SR Suntour NEX-4110V2, 63mm travel, 1pc. alloy lower, Hi-Ten stanchions and steerer, coil/mcu w/ preload adjust, spring assisted seals
HEADSET
1-1/8"" threaded, sealed loose ball bearings
SEAT BINDER
Globe Chevron forged alloy, chrome plated w/ QR
WHEELS
FRONT HUB
Forged alloy, double sealed, ground race, QR
REAR HUB
Forged alloy, double sealed, ground race, cassette, QR, 32h
SPOKES
1.8mm (15g) stainless
FRONT TIRE
Specialized Hemisphere Armadillo, 700x38c, 60TPI, wire bead
REAR TIRE
Specialized Hemisphere Armadillo, 700x38c, 60TPI, wire bead
INNER TUBES
Schraeder valve
RIMS
Globe 700c, double wall, pin joint, 32h w/CNC side wall
DRIVETRAIN
FRONT DERAILLEUR
Shimano FD-C102, 31.8mm clamp, top swing, dual pull
REAR DERAILLEUR
Shimano Acera, 8-speed
CASSETTE
SRAM PG-820, 8-speed, 11-32t
SHIFT LEVERS
Shimano SL-MC40, 8-speed, Rapid Fire
BOTTOM BRACKET
Cartridge bearing, square spindle with crank stop right side and capless bolts
CHAIN
KMC Z8, w/ reusable Missing Link
CRANKSET
Shimano FC-M191, w/ chainguard
CHAINRINGS
48 x 38 x 28t w/ chainguard
COCKPIT
TAPE
Body Geometry Comfort w/ integrated bell, closed end, 132mm
SEATPOST
Alloy suspension, 2-bolt head, 27.2mm w/ 3.8mm spring
HANDLEBARS
Aluminum Comfort riser bar, 25.4mm, 60mm rise, 620mm wide, 15 degree back sweep, 5 degree up
STEM
Ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp
SADDLE
Comfort Plus with dual density foam and springs for extra comfort
BRAKES
FRONT BRAKE
Alloy linear pull, 1pc. pad
REAR BRAKE
Alloy linear pull, 1pc. pad
BRAKE LEVERS
Alloy 4-finger, kraton lever pad, for Rapid Fire shifter
ACCESSORIES
PEDALS
Comfort pedal, composite body w/rubber top, sealed loose ball bearings
* Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.
Géométries
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Seat-Tube Angle | 70° | 69° | 69° | 69° |
| Head-Tube Length | 140mm | 160mm | 180mm | 200mm |
| Seat-Post Length | 0mm | 0mm | 0mm | 0mm |
| Head-Tube Angle | 69.5° | 69.5° | 69° | 69° |
| Chain-Stay Length | 500mm | 500mm | 500mm | 500mm |
| Top-Tube Length, Horizontal | 600mm | 615mm | 630mm | 645mm |
| Front-Center | 641mm | 644mm | 664mm | 679mm |
| Stand-Over Height | 721mm | 762mm | 805mm | 848mm |
| Seat-Tube Length, B-B Center to Top | 370mm | 425mm | 480mm | 535mm |
| Fork Rake | 40mm | 40mm | 40mm | 40mm |
| B-B Drop | 73mm | 73mm | 73mm | 73mm |
| Trail | 89mm | 89mm | 93mm | 93mm |
| Wheelbase | 1132mm | 1134mm | 1155mm | 1170mm |
Téléchargements manuels
Pour les avertissements de sécurité, veuillez consulter la documentation dans la section "Téléchargements de manuels" de cette page.
