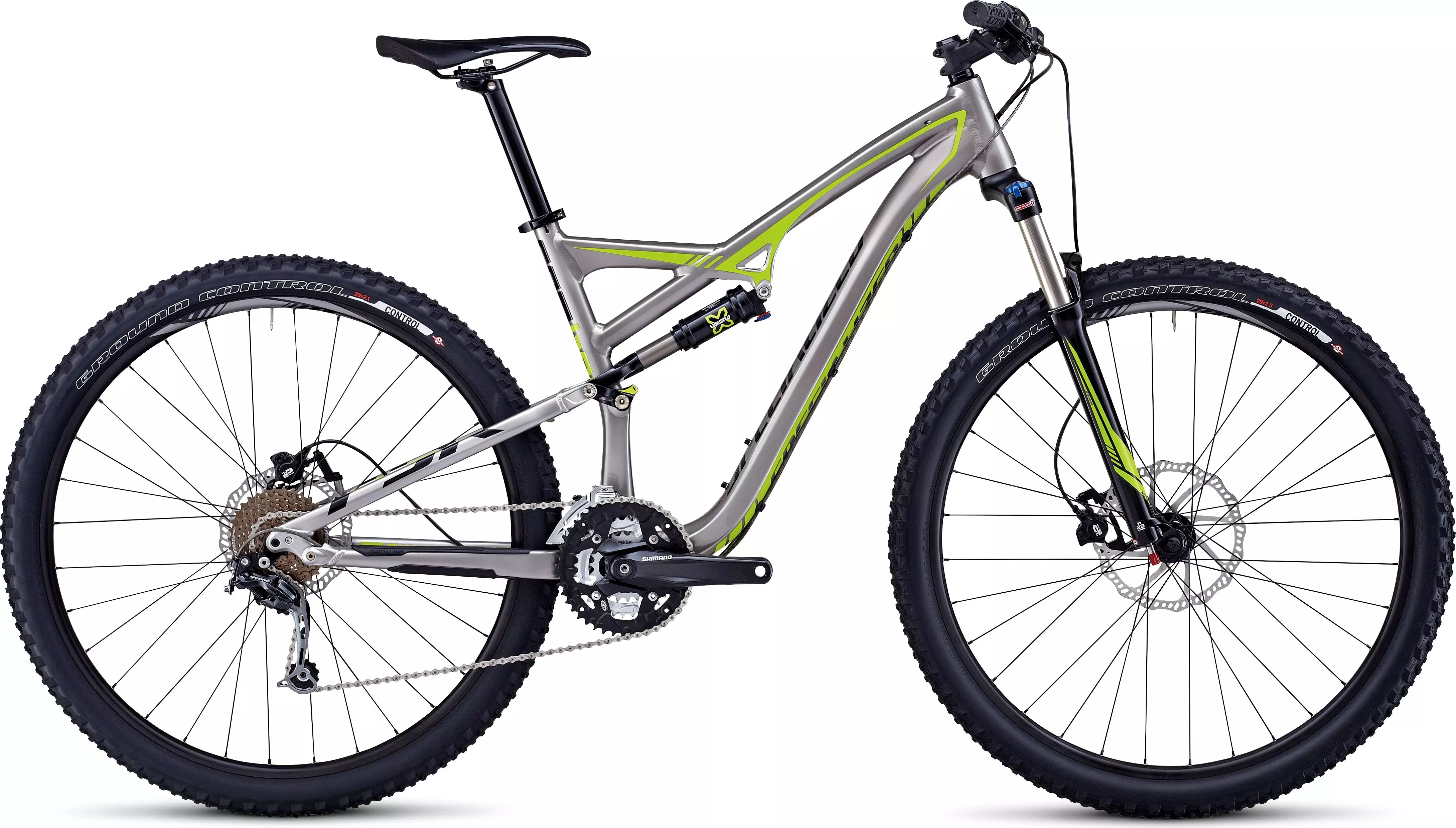

    2014 Camber 29

    0 Avis

    Le Camber FSR à 110mm de débattement présente un cadre d'alliage M5, une fourche…

    Couleur:

    Gloss Silver/Hyper/Black

    Quelle est ma taille ?

    Entrez vos mensurations et nous calculerons votre taille idéale.

    Hauteur:

    Pour un résultat plus précis, inclure la longueur de votre tibia.

    Sélectionnez un(e) Taille

    Choisissez la couleur et la grandeur que vous voulez pour pour le chercher dans l'inventaire du magasin le plus proche

    Indisponible

    Cet article est indisponible via Trouver en magasin

    Caractéristiques du produit

    Icon

    Le Camber FSR à 110mm de débattement présente un cadre d'alliage M5, une fourche à ressort Suntour XCR 29 et des freins hydrauliques Tektro Draco 2 pour une polyvalence accrue sur les sentiers.

    • Cintre Specialized XC Mini Riser largeur 700mm

    • Nouveau cadre FSR alu M5 avec géométrie spécifique 29", suspension FSR pivot sup. concentrique

    • Dérailleur AR Shimano Shadow 9V

    • Nouveau cadre FSR alu M5 avec géométrie spécifique 29", suspension FSR pivot sup. concentrique

    • Freins à disques hydrauliques Tektro Draco 2

    • Moyeu à disque Hi Lo à joue plus haute côté disque

    • Dérailleur AR Shimano Shadow 9V

    • Freins à disques hydrauliques Tektro Draco 2

    Spécifications techniques

    Icon

    FRAMESET

    FRAME

    M5 hydroformed tubing, 29"" geometry, tapered headtube, internal Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, bolt-on cable guides, 110mm travel

    SWAT

    Bottle cage w/ SWAT Technology compatible (not included)

    HEADSET

    1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

    SEAT BINDER

    7050 hard anodized alloy collar, QR, 34.9mm

    SUSPENSION

    REAR SHOCK

    X-Fusion O2 RL, air spring, and reb adj., 197x48mm

    FORK

    Suntour XCR 29, coil spring, tapered alloy steerer, lockout and reb adj., S: soft, M: standard, L/XL: hard, 110mm travel

    WHEELS

    RIMS

    Specialized, alloy disc, 24mm wide, 32h

    FRONT HUB

    Specialized Hi Lo disc, OS28 end caps, sealed cartridge bearings, QR, 32h

    REAR HUB

    Specialized disc, 4x-sealed cartridge bearings, 12mm thru-axle, 142mm spacing, 32h

    SPOKES

    Stainless, 2.0mm

    FRONT TIRE

    Specialized Ground Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, 60TPI

    REAR TIRE

    Specialized Ground Control, 2Bliss Ready, 29x2.1"", foldable aramid bead, 60 TPI

    DRIVETRAIN

    FRONT DERAILLEUR

    Shimano SLX M660, E-type for DMD, top-swing, bottom pull

    REAR DERAILLEUR

    Shimano Deore Shadow M592, 9-speed, SGS long cage

    SHIFT LEVERS

    Shimano Alivio, 9-speed, trigger

    CASSETTE

    Shimano HG-20, 9-speed, 11-34

    CHAIN

    KMC X9, 9-speed, nickel plate, reusable Missing Link

    CRANKSET

    Shimano Alivio, Octalink spline, replaceable rings, S: 170mm, Others: 175mm

    BOTTOM BRACKET

    Shimano BB-ES25, Octalink spline, cartridge bearings, 73mm shell

    COCKPIT

    SADDLE

    Body Geometry Rival, 143mm width

    SEATPOST

    Specialized 6061 alloy, 2-bolt micro-adjust setback, 30.9mm, S/M:350mm, others:400mm

    STEM

    Specialized Trail, 6061 alloy, 4-bolt, 8-degree rise, 31.8mm clamp

    HANDLEBARS

    Specialized XC Mini-Riser, 6000 butted alloy, 720mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm

    GRIPS

    Specialized Sip Grip, non-locking

    BRAKES

    FRONT BRAKE

    Tektro Draco 2, ceramic pads, Light Wave rotor, S/M: 180mm, Others: 200mm rotor

    REAR BRAKE

    Tektro Draco 2, ceramic pads, Light Wave rotor, S/M: 160mm, Others: 180mm rotor

    BRAKE LEVERS

    Tektro Draco 2, hydraulic disc

    * Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.

    Géométries

    Icon
    SMLXL
    Bottom Bracket Height - Low Setting335mm335mm335mm335mm
    Top Tube Length (Horizontal)555mm587mm612mm642mm
    Head Tube Height90mm100mm125mm150mm
    Head Tube Angle - Low Setting70°70°70°70°
    Seat Tube Angle (Actual) - Low Setting70°70°70°70°
    Seat Tube Angle (Effective) - Low Setting75°74.8°74.5°74.2°
    Top Tube Length (Actual)535mm562mm589mm621mm
    Seat Tube Length - Center to Top394mm430mm468mm523mm
    Wheel Base1100mm1131mm1156mm1186mm
    Standover Height745mm755mm758mm762mm
    Stack591mm600mm624mm647mm
    Reach400mm428mm445mm466mm
    Chainstay Length450mm450mm450mm450mm
    Crank Length170mm175mm175mm175mm
    Handlebar Width720mm720mm720mm720mm
    Stem Length60mm75mm90mm100mm
    Seatpost Length350mm350mm400mm400mm
    Géométries
