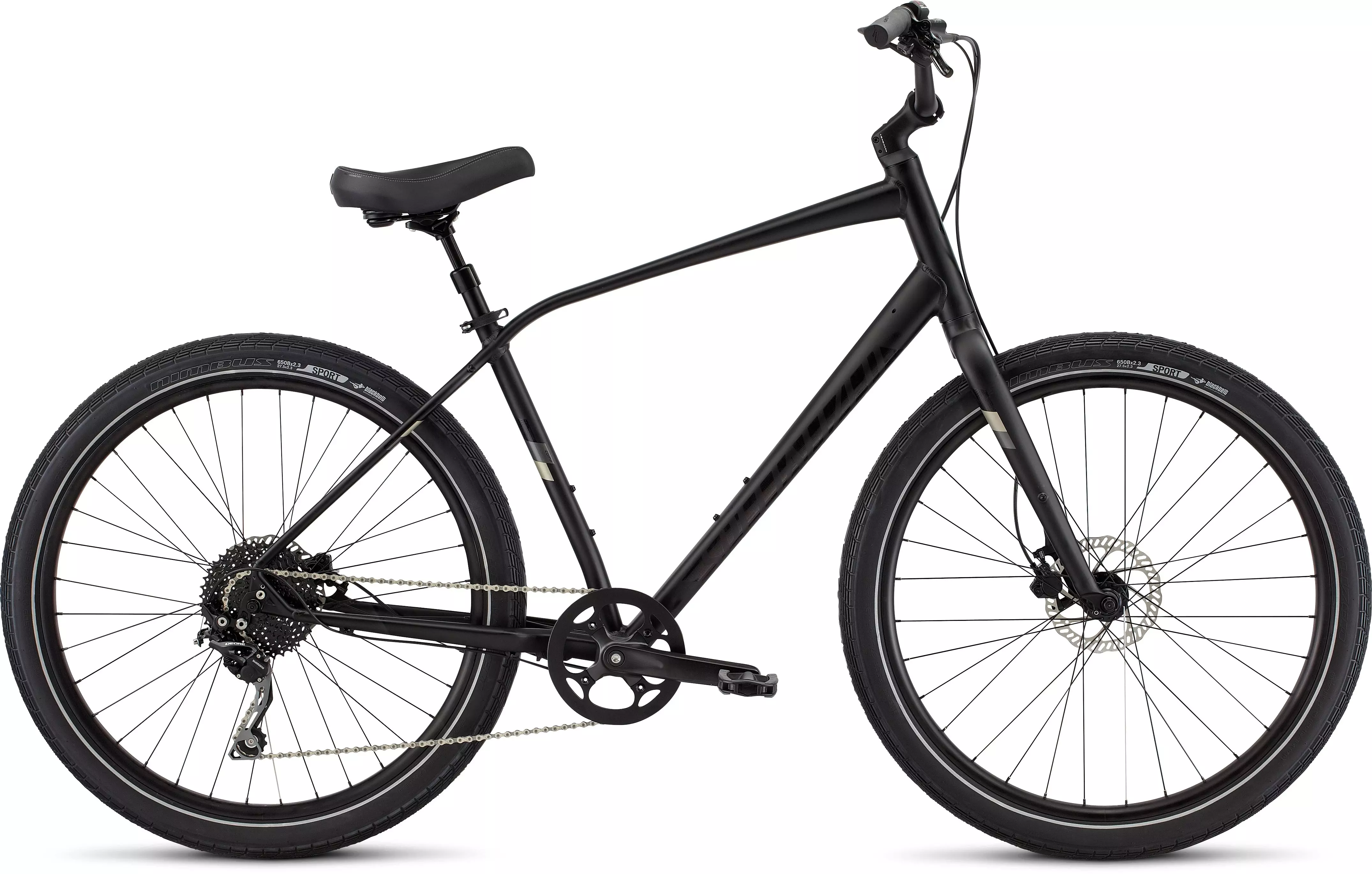

2018 Roll Comp X1
$1,149.00
0 Avis
Don't confuse simple with simpleminded—our Roll Comp X1 might take offence. That's…
Couleur:
Black/Charcoal/Titanium Reflective
Quelle est ma taille ?
Sélectionnez un(e) Taille
Indisponible
Cet article est indisponible via Trouver en magasin
Caractéristiques du produit
Don't confuse simple with simpleminded—our Roll Comp X1 might take offence. That's because we designed it to be the hassle-free, no-fuss, no- excuses bike to help you hit your fitness goals.
It's a tall order, sure, but with its one-by gearing, you'll never have to worry about weird gearing or dropping your chain. It's just one shifter to get you where you need to go. Pretty awesome, right?
Of course, there are more tricks up the Roll's sleeve, like hydraulic disc brakes that stop on a dime in any condition, a relaxed, upright geometry that strikes the pinnacle of comfort, and wide tires that give you all the grip and stability you need to get it done.
Wide diameter, 650bx2.3" Nimbus Sport Reflective tires provide excellent traction, stability, and cushioning, which creates a safer, more reliable, and more comfortable ride on either paved or dirt roads. Plus, the reflective accents of the tire are sure to increase your visibility to motorists in low-light conditions.
Equipped with our Body Geometry "The Cup" saddle, you can expect a supreme level of comfort anywhere you take the Roll. It delivers on these expectations by "cupping" your sit bones, which reduces pressure without feeling obtrusive or constraining.
A spring suspension seatpost takes the sting out of rough terrain, giving you an extra bit of "cushion" that'll have you riding longer and more comfortably.
Spécifications techniques
FRAMESET
FRAME
Specialized A1 Premium Aluminum, Ground Control Positioning, formed tubes, post mount disc, fender/rack mounts
SEAT BINDER
Quick-release clamp, 31.8mm
SUSPENSION
FORK
A1 Premium Aluminum, Cr-Mo steerer, post mount disc, fender/rack mounts
WHEELS
RIMS
Double wall, 32h front 36h rear, disc only
FRONT HUB
Alloy, 6-bolt disc, loose ball bearing, QR, 32h
REAR HUB
Alloy, 8/9-speed freehub, 6-bolt disc, loose ball bearings, quick-release, 36h
SPOKES
Stainless, 14g
FRONT TIRE
Nimbus Sport Reflective, 650bx2.3", 60 TPI w/ BlackBelt Protection
REAR TIRE
Nimbus Sport Reflective, 650bx2.3", 60 TPI w/ BlackBelt Protection
INNER TUBES
Schrader valve
DRIVETRAIN
REAR DERAILLEUR
Shimano Deore, Shadow Plus design, SGS cage, 10-speed
SHIFT LEVERS
Shimano Deore, 10-speed
CASSETTE
Sunrace, 10-speed, 11-40t
CHAIN
KMC X10, 10-speed w/ Missing Link™
CRANKSET
Forged alloy, square taper, 104BCD spider
CHAINRINGS
42T w/ chainguard
BOTTOM BRACKET
BSA, square taper, cartridge bearings
COCKPIT
STEM
Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
HANDLEBARS
Specialized Roll, 6061 alloy, 15-degree backsweep, 125mm rise, 31.8mm
GRIPS
Specialized Body Geometry Contour, lock-on
SADDLE
Body Geometry The Cup, 6-degree rise, elastomer base, steel rails, SWAT™ compatible mounts, 245mm
SEATPOST
Spring suspension, alloy, 27.2mm, 2-bolt clamp
BRAKES
REAR BRAKE
Tektro Auriga, hydraulic disc, organic pads, 160mm rotor
FRONT BRAKE
Tektro Auriga, hydraulic disc, organic pads, 160mm rotor
ACCESSORIES
PEDALS
Specialized City, platform
* Les poids sont basés sur les cadres peints en production comme illustré. Les poids réels varieront en fonction de la couleur, de la taille du cadre et de la variation des composants. Les spécifications sont sujet à changement sans préavis.
Géométries
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Longueur manivelles | 165mm | 170mm | 175mm | 175mm |
| Largeur de cintre | 680mm | 680mm | 680mm | 680mm |
| Longueur de potence | 60mm | 60mm | 60mm | 60mm |
| Largeur de selle | 245mm | 245mm | 245mm | 245mm |
| Longueur de tige de selle | 350mm | 350mm | 350mm | 350mm |
| Stack | 586mm | 619mm | 647mm | 670mm |
| Reach | 346.2mm | 352.3mm | 370.4mm | 392mm |
| Longueur de douille de direction | 155mm | 185mm | 215mm | 240mm |
| Angle de direction | 68° | 69° | 69° | 69° |
| Boîte de pédalier - sol | 285mm | 285mm | 285mm | 285mm |
| B-B Drop | 70mm | 70mm | 70mm | 70mm |
| Chasse | 84mm | 77mm | 77mm | 77mm |
| Longueur de fourche | 420mm | 420mm | 420mm | 420mm |
| Déport de fourche | 55mm | 55mm | 55mm | 55mm |
| Boîte de pédalier – axe roue avant | 618mm | 626mm | 654mm | 685mm |
| Longueur bases | 480mm | 480mm | 480mm | 480mm |
| Empattement | 1089mm | 1097mm | 1126mm | 1156mm |
| Longueur tube horizontal | 595mm | 615mm | 645mm | 676mm |
| Hauteur cadre à l’entrejambe | 730mm | 787mm | 824mm | 850mm |
| Longueur de tube de selle | 375mm | 440mm | 480mm | 520mm |
| Angle de Tube de selle | 67° | 67° | 67° | 67° |
Téléchargements manuels
Pour les avertissements de sécurité, veuillez consulter la documentation dans la section "Téléchargements de manuels" de cette page.
