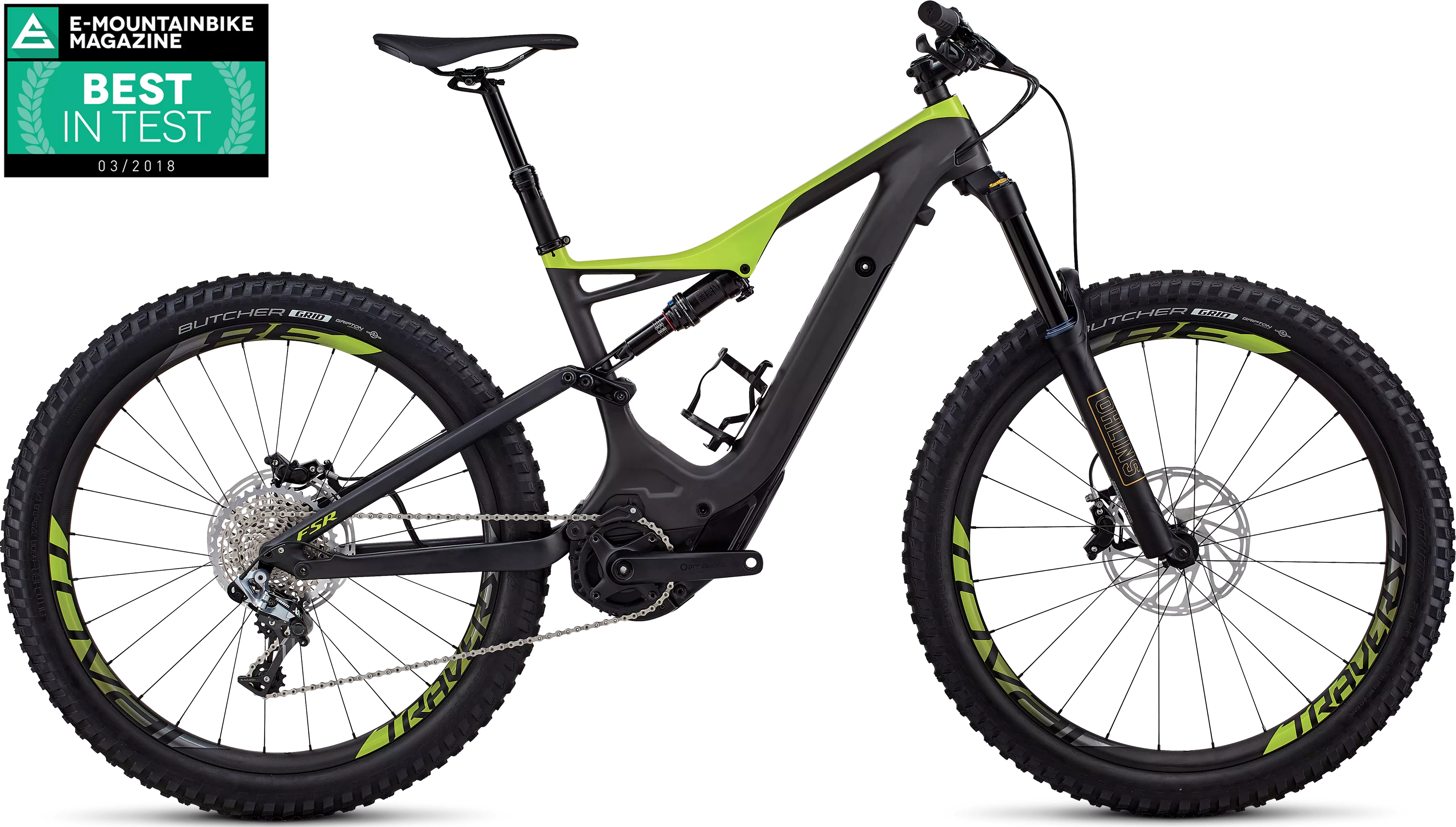

2018 Men's S-Works Turbo Levo FSR Carbon 6Fattie/29

0 Omdömen

Färg:

Carbon/Hyper

Vad är min storlek?

Imperial

Metrisk

Skriv in din längd så beräknar vi din storlek

Längd:

För mer precist resultat, inkludera din smalbenslängd

Välj en Storlek

Välj den färg och storlek du önskar för att söka efter lagersaldo i en butik nära dig.

Ej tillgänglig

Artikeln är inte tillgänglig för ”Hitta nära mig”

Leverans till -----

Produktinformation

Tekniska specifikationer

FRAMESET

FRAME

S-Works FACT 11m carbon, 6Fattie/29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 135mm of travel

FORK

Öhlins RXF 36, 29/6Fattie, Twin-Tube design, air spring w/ adjustable 3rd chamber, adjustable high and low speed compression, adjustable rebound, 15x110mm thru-axle, 51mm offset, 150mm of travel

SEAT BINDER

Alloy, 34.9mm, titanium bolt

WHEELS

RIMS

Roval Traverse SL 27.5, hookless carbon, 38mm inner width, 24/28h, tubeless ready, hand-built

FRONT HUB

Roval Traverse, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h

REAR HUB

Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

SPOKES

DT Swiss Revolution

FRONT TIRE

Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.8"

REAR TIRE

Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.8"

INNER TUBES

27.5 x 2.3" / 3.0", 40mm Presta valve

SUSPENSION

REAR SHOCK

RockShox Monarch RT3, Rx Trail Tune, AUTOSAG, rebound and 3-position compression adjust, 197x48mm

DRIVETRAIN

REAR DERAILLEUR

SRAM XX1, 11-speed

SHIFT LEVERS

SRAM XX1, 11-speed

CASSETTE

SRAM XG1199, XD, 11-speed, 10-42t

CHAIN

SRAM XX1, 11-speed w/ PowerLink

CRANKSET

Custom alloy crankarms

CHAINRINGS

Forged steel, 32T

COCKPIT

STEM

Syntace F109, 6-degree rise, 31.8mm clamp

HANDLEBARS

Specialized Trail, FACT carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm

GRIPS

Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

SADDLE

Body Geometry Henge Expert, hollow Ti rails, 143mm

SEATPOST

Command Post IRcc, 12-position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm of travel

BRAKES

FRONT BRAKE

SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm

REAR BRAKE

SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm

E-BIKE

MOTOR

Specialized 1.3, custom Rx Trail-tuned motor, 250W Nominal

UI/REMOTE

Trail Handlebar Remote, motor mode switch & walk-assist

BATTERY

Specialized M1-504, integrated Trail Display, ANT+/Bluetooth® module, 504Wh, Mission Control App connectivity

CHARGER

Custom charger, 42V4A w/ Rosenberger plug

WIRING HARNESS

Custom Specialized wiring harness

ACCESSORIES

PEDALS

Specialized Platform, Cr-Mo axle

*Vikter baserade på produktion av målade ramar som avbildas. Faktiska vikter kommer att variera beroende på färgsättning, ramstorlek och komponentvariation. Specifikationer kan ändras utan förvarning.

Geometri

	S	M	L	XL
Crank Length	165mm	165mm	165mm	165mm
Handlebar Width	780mm	780mm	780mm	780mm
Stem Length	50mm	60mm	60mm	60mm
Saddle Width	143mm	143mm	143mm	143mm
Seatpost Length	380mm	420mm	420mm	420mm
Seat Tube Length, Center to Top	396mm	435mm	468mm	520mm
Seat Tube Angle, Actual	69°	69°	69°	69°
Seat Tube Angle, Effective	73.3°	73.6°	73.9°	74.2°
Standover Height	753mm	762mm	772mm	780mm
Stack	598mm	603mm	630mm	649mm
Reach	386mm	411mm	430mm	456mm
Head Tube Length	100mm	130mm	150mm	95mm
Head Tube Angle	66.1°	66.1°	66.1°	66.1°
BB Height	340mm	340mm	340mm	340mm
BB Drop	18mm	18mm	18mm	18mm
Chainstay Length	459mm	459mm	459mm	459mm
Wheelbase	1157mm	1185mm	1215mm	1250mm
Top Tube Length, Horizontal	554mm	581mm	611mm	644mm
