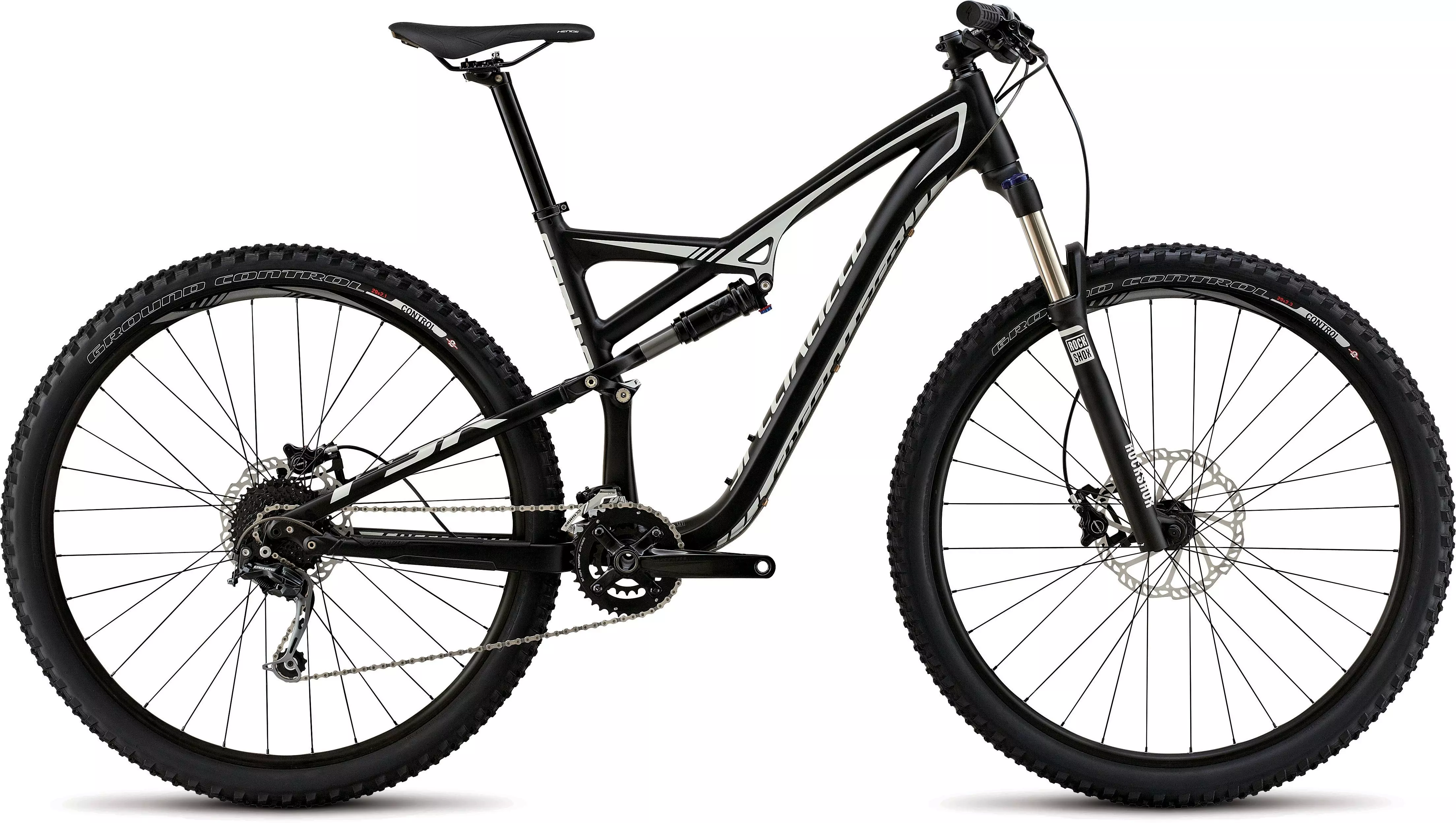

2015 Camber 29

0 Omdömen

The 110mm-travel Camber 29 utilizes an M5 alloy frame, RockShox XC32 air-sprung fork,…

Färg:

SATIN BLACK/DIRTY WHITE

Vad är min storlek?

Imperial

Metrisk

Skriv in din längd så beräknar vi din storlek

Längd:

För mer precist resultat, inkludera din smalbenslängd

Välj en Storlek

Produktinformation

The 110mm-travel Camber 29 utilizes an M5 alloy frame, RockShox XC32 air-sprung fork, and custom Tektro Gemini Comp hydraulic disc brakes for a versatile trail package.

Lightweight and compliant alloy seatpost
Custom SRAM crankset for stiff, yet lightweight pedaling performance
Fast-rolling and versatile Specialized Ground Control tires
RockShox XC32 110mm-travel fork provides plush XC traction and control
Specialized XC mini-rise handlebar for precise handling and control
M5 alloy FSR frame w/ 29er geometry, 110mm travel, and internal cable routing for a premium ride
Tektro Gemini Comp hydraulic disc brakes w/ reach adjust levers for total control
Custom X-Fusion 02 RL shock for supple yet efficient trail performance
Alex 29 rims are lightweight and durable for smooth handling at speed
Shimano Deore rear derailleur is tough, lightweight, and delivers pinpoint shifts

Tekniska specifikationer

FRAMESET

FRAME

M5 hydroformed tubing, 29"" geometry, tapered headtube, threaded BB, internal Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, bolt-on cable guides, 110mm travel

HEADSET

1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings

SEAT BINDER

Specialized 7050 alloy, single bolt, 34.9mm

SUSPENSION

REAR SHOCK

Custom X-Fusion 02 RL, air sleeve, w/ lockout, rebound adjust, 197x48mm

FORK

RockShox XC32 29, Solo Air spring, tapered alloy steerer, w/ lockout, rebound adjust, 110mm travel

WHEELS

RIMS

Alex, 29"" disc, alloy, 24mm inner width, 32h

FRONT HUB

Specialized Hi Lo disc, OS28 end caps, sealed cartridge bearing, QR, 32h

REAR HUB

Specialized Hi Lo disc, 4 sealed cartridge bearings, 12mm thru-axle, 32h

SPOKES

Stainless, 14g

FRONT TIRE

Specialized Ground Control, 60TPI, 2Bliss Ready, folding bead, 29x2.3""

REAR TIRE

Specialized Ground Control, 60TPI, 2Bliss Ready, folding bead, 29x2.1""

INNER TUBES

Ultralight, presta valve

DRIVETRAIN

FRONT DERAILLEUR

SRAM X5, S3 low direct mount

REAR DERAILLEUR

Shimano Deore Shadow, 9-speed, SGS long cage

SHIFT LEVERS

Shimano Alivio, 9-speed, trigger

CASSETTE

SRAM PG 920, 9-speed, 11-34

CHAIN

SRAM PC 1031, 10-speed, w/ PowerLink, nickel finish

CRANKSET

Custom SRAM S-1250, GXP spindle, 36/22

BOTTOM BRACKET

SRAM GXP XR, 73mm

COCKPIT

SEATPOST

Alloy, 2-bolt, 12.5mm offset, 30.9mm, anti-corrosion hardware

STEM

Specialized Trail, forged alloy, 4-bolt, 8-degree rise

HANDLEBARS

Specialized XC, mini rise, 6000 butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm

GRIPS

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, Others: XL

SADDLE

Body Geometry mountain, hollow Cr-Mo rails, 143mm

BRAKES

FRONT BRAKE

Tektro Gemini Comp, hydraulic disc, resin/metallic pads, S/M: 180mm rotor, Others: 200mm

REAR BRAKE

Tektro Gemini Comp, hydraulic disc, resin/metallic pads, S/M: 160mm rotor, Others: 180mm

BRAKE LEVERS

Tektro Gemini Comp, alloy lever, w/ reach adjust

ACCESSORIES

PEDALS

Resin test ride, w/ toe clips, CEN std.

*Vikter baserade på produktion av målade ramar som avbildas. Faktiska vikter kommer att variera beroende på färgsättning, ramstorlek och komponentvariation. Specifikationer kan ändras utan förvarning.

Geometri

	S	M	L	XL
Bottom Bracket Height - Low Setting	335mm	335mm	335mm	335mm
Top Tube Length (Horizontal)	555mm	587mm	612mm	642mm
Head Tube Height	90mm	100mm	125mm	150mm
Head Tube Angle - Low Setting	70°	70°	70°	70°
Seat Tube Angle (Actual) - Low Setting	70°	70°	70°	70°
Seat Tube Angle (Effective) - Low Setting	75°	74.8°	74.5°	74.2°
Top Tube Length (Actual)	535mm	562mm	589mm	621mm
Seat Tube Length - Center to Top	394mm	430mm	468mm	523mm
Wheel Base	1100mm	1131mm	1156mm	1186mm
Standover Height	745mm	755mm	758mm	762mm
Stack	591mm	600mm	624mm	647mm
Reach	400mm	428mm	445mm	466mm
Chainstay Length	450mm	450mm	450mm	450mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	720mm	720mm	720mm	720mm
Stem Length	60mm	75mm	90mm	100mm
Seatpost Length	350mm	350mm	400mm	400mm
