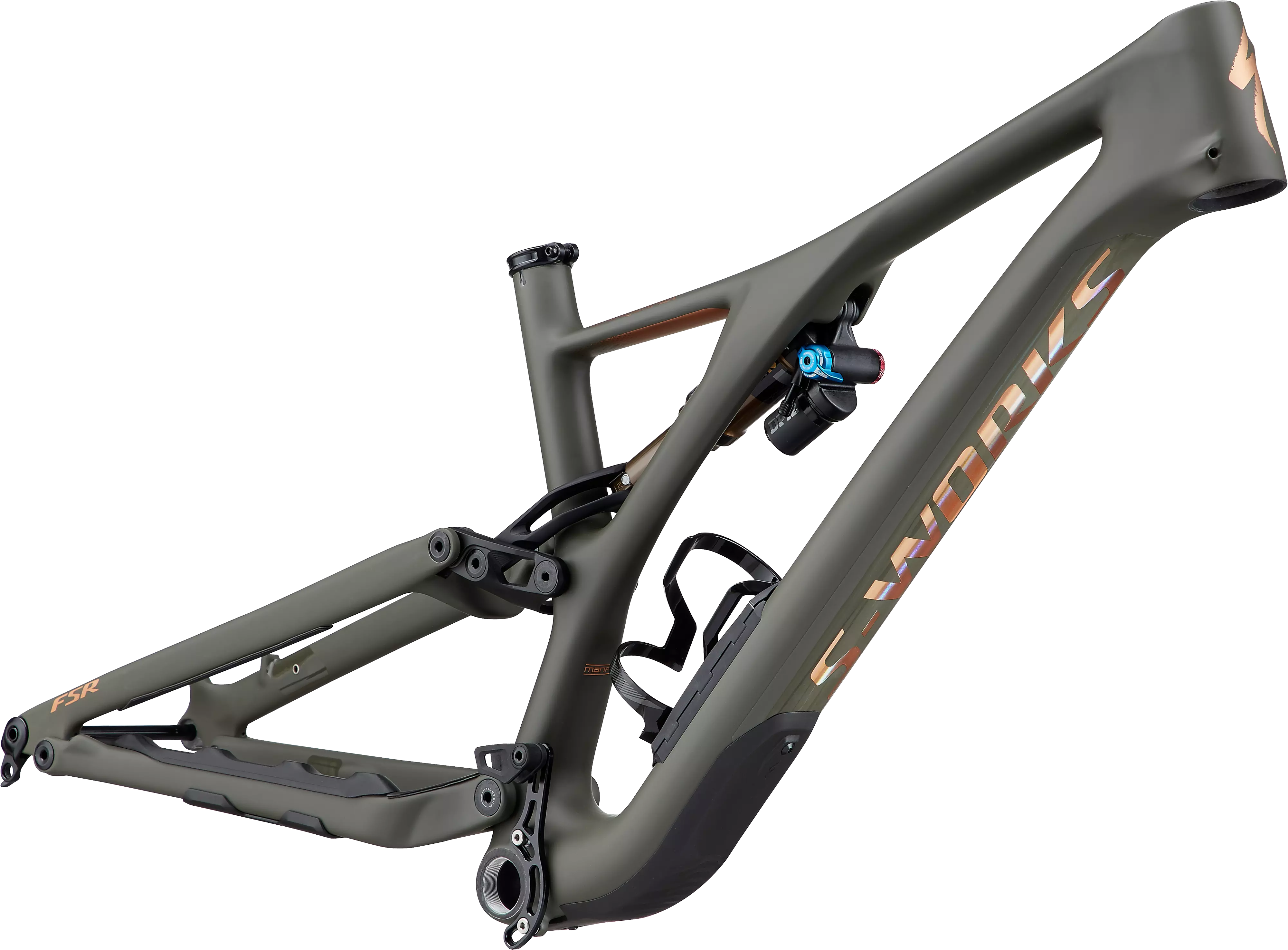

2020 S-Works Stumpjumper 27.5 Frameset
0 리뷰
The Stumpjumper’s asymmetric “sidearm” design has earned glowing reviews the world…
컬러:
SATIN OAK GREEN / BRONZE FOIL
나의 사이즈 알아보기
사이즈 선택
Product Details
The Stumpjumper’s asymmetric “sidearm” design has earned glowing reviews the world over. Why? Because it creates one of the lightest, and yet most capable, trail bikes anywhere. Paired with top-shelf FOX suspension, you have the foundation for the perfect build.
THE ULTIMATE RIDE
The innovative sidearm design makes a lighter, better-handling bike. By directly connecting all three mounting points of the rear-end and shock to the frame, we’ve increased both stiffness and performance over bumps. End result? Total control.
LIGHTWEIGHT, CAPABLE…AND STUNNING
Our carbon frame melds 150mm of smooth and deep suspension with smart features, including our integrated SWAT™ box downtube storage and painless cable routing. No proprietary bullshit and a threaded bottom bracket also mean that this frame is 100% hassle free.
• Innovative chassis delivers 150mm of smooth suspension and unrivaled handling.
• Top-tier suspension courtesy of FOX FLOAT DPX2 Factory rear shock.
기술적 특징
Frameset
Frame
FACT 11m carbon chassis and rear-end, asymmetrical design, 27.5 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Seat Binder
Specialized bolt-type, alloy, 38.6mm
Suspension
Rear Shock
FOX FLOAT DPX2 Factory, Rx Trail Tune, EVOL Air sleeve, Kashima coat, 3-position adjustment w/ Open Mode adjustment, 210x52.5mm
* 무게는 그림과 같이 도색된 프레임 기준입니다. 색상, 프레임 크기, 구성 요소의 차이에 따라 실제 무게는 달라질 수 있습니다. 사양은 사전 통보 없이 변경될 수 있습니다.
지오메트리
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 581mm | 592mm | 596mm | 623mm | 637mm |
| Reach | 405mm | 415mm | 435mm | 455mm | 480mm |
| Head Tube Length | 100mm | 105mm | 110mm | 140mm | 155mm |
| Head Tube Angle | 66.5° | 65.5° | 65.5° | 65.5° | 65.5° |
| BB Height | 325mm | 336mm | 336mm | 336mm | 336mm |
| BB Drop | 28mm | 21mm | 21mm | 21mm | 21mm |
| Trail | 103mm | 112mm | 112mm | 112mm | 112mm |
| Fork Length, Full | 522mm | 542mm | 542mm | 542mm | 542mm |
| Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm | 46mm |
| Front Center | 696mm | 726mm | 748mm | 780mm | 812mm |
| Chainstay Length | 432mm | 432mm | 432mm | 432mm | 432mm |
| Wheelbase | 1127mm | 1157mm | 1179mm | 1212mm | 1243mm |
| Top Tube Length, Horizontal | 544mm | 570mm | 595mm | 627mm | 660mm |
| Bike Standover Height | 742mm | 739mm | 743mm | 758mm | 774mm |
| Seat Tube Length | 380mm | 380mm | 410mm | 455mm | 505mm |
| Seat Tube Angle | 76.5° | 75.3° | 75° | 74.6° | 74.2° |
