0 리뷰
새로운 트레일이나 주말 라이딩 장소를 찾는다면, 터보 리보 FSR 콤프( Turbo Levo FSR Comp ) 6Fattie/29는 라이딩에 있어…

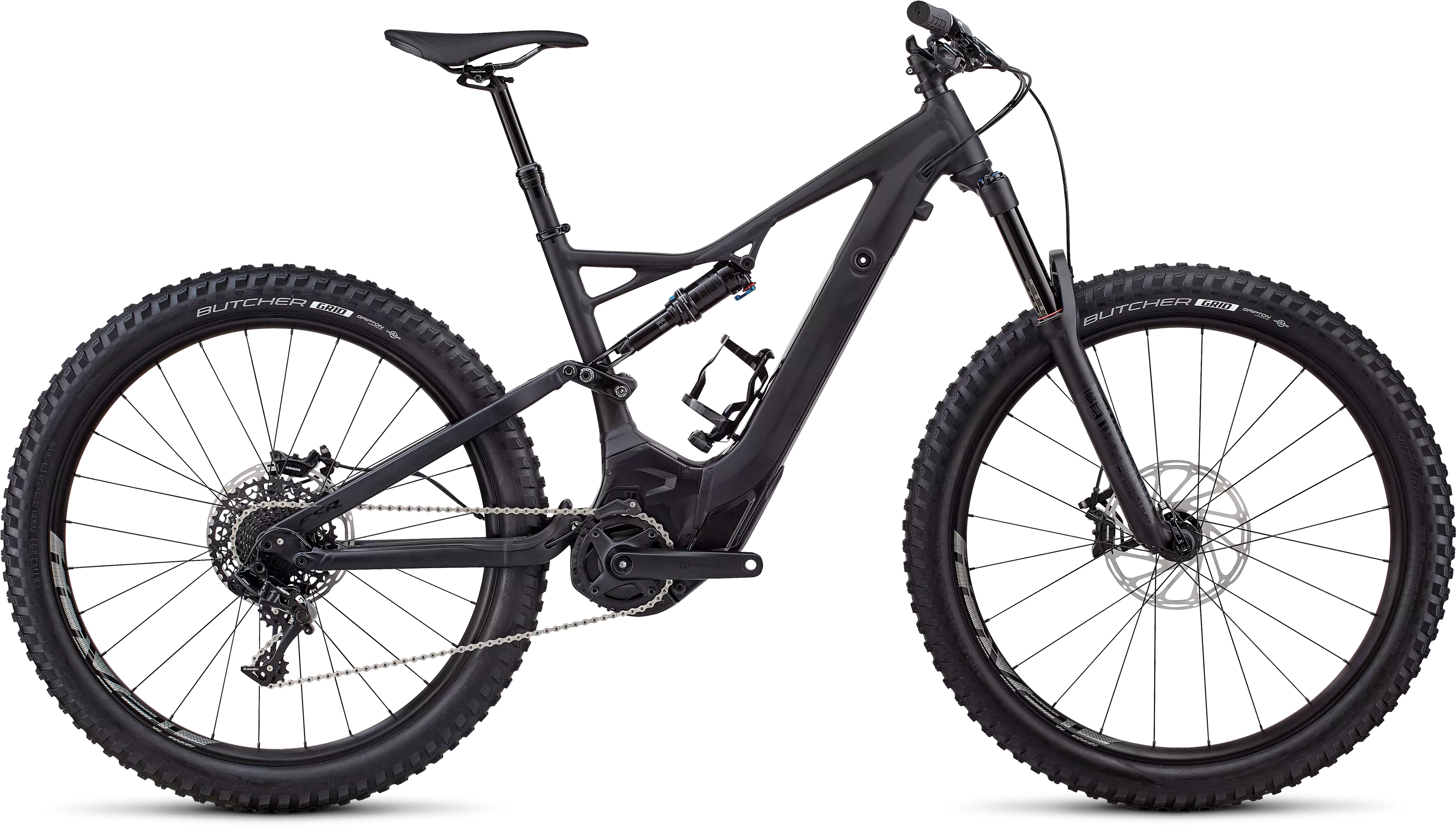

새로운 트레일이나 주말 라이딩 장소를 찾는다면, 터보 리보 FSR 콤프( Turbo Levo FSR Comp ) 6Fattie/29는 라이딩에 있어 완벽한 성능과 힘을 제공하는 모델이 될 것입니다.
가장 큰 특징으로는 긴 탑튜브와 짧아진 체인스테이, 안정성을 위한 바텀 브라켓까지, 산악자전거의 장점을 모두 갖췄다는 사실입니다. 여기에 180mm의 앞뒤 트래블을 장착해 어떤 트레일도 완벽하게 소화할 수 있습니다.
M5 알루미늄 프레임과 더불어, 터보 1.3 모터를 통해 이전 모델과 비교해 15%의 힘을 더 전달해주는 효율적이고 파워풀한 터보 기술과 배터리가 사용됩니다. 스페셜라이즈드만의 Rx 트레일 튜닝모터는 부드럽고 조용하게 힘을 전달해 라이더는 거의 힘을 들이지 않고도 오르막을 정복할 수 있을 뿐만 아니라, 동일한 페달링으로 당신이 필요한 만큼의 힘을 즉각적으로 사용가능합니다. 이는 시판되는 모터 중 유일한 것입니다.
다운튜브와 결합된 배터리는 충전이나 교체시 쉽게 탈착 가능합니다. 수명이 길어 장거리 라이딩에도 용이하고, 트레일에 적합할 뿐더러 무게 감소에도 기여합니다. 라이더는 터보 기술을 십분 활용하기 위해 미션콘트롤(Mission Control ) 앱을 사용할 수 있습니다. 앱은 당신에게 필요한 라이딩 정보와 바에서 손을 떼지 않고도 모드 전환이 가능한 트레일 리모트, 또한 모터가 얼만큼의 힘을 사용하는 지 보여주는 파워 미터도 제공합니다.
내구성이 좋은 빌드 킷을 사용합니다. 150mm 락샥 레빌레이션(RockShox Revelation) RC 업 프론트, 스램(SRAM) Guide RE 브레이크, 그리고 스램 GX 그룹셋이 변속 및 구동계를 이루고 있습니다. 또한, 새로운 6Fattie 휠 시스템으로 꺾임을 줄이고 접지력, 활강성, 그리고 트레일에서의 즐거움을 극대화 시켜줍니다. 또한 코스에 따라 29인치 휠(별매)과 광폭타이어를 사용하는 6Fattie 휠 중에 하나를 선택할 수도 있습니다.
180mm 트래블을 포함하는 프레임은 M5 프리미엄 알루미늄으로 구성되어 강성, 가벼움, 반응성 모두 우수합니다. 프레임 설계는 3인치 광폭타이어를 사용하는 6Fattie 지오메트리에서 유래해 낮은 바텀 브라켓, 넓은 탑 튜브, 그리고 짧은 체인스테이가 사용됩니다. 케이블은 가변 싯포스트인 커맨드 포스트(Command Post) 리모트를 포함해 모두 내장됐고, ,배터리는 다운 튜브와 완전히 결합되며 모터는 브레이스 마운트에 고정됩니다.
The frame was constructed from our M5 Premium Aluminum, which is equal parts, strong, lightweight, and incredibly responsive. The design of the frame itself revolves around our Trail 6Fattie Geometry that includes all of our trail hallmarks, like a low-slung bottom bracket, roomy top tube, and ultra-short chainstays. Cable routing is all internal, including that of the Command Post IR, while the battery is fully integrated in the down tube and the motor is secured by a forged brace mount.
트레일을 위해 튜닝된 커스텀 터보 1.3 Rx 모터는 터보 1.2 모터에 비해 전력 효율이 15% 더 좋아졌습니다. 이로써 전기 자전거 모터 기술에서 선두주자로 자리매김하게 됐습니다. 이 모터는 전기자전거 경쟁자들은 흉내낼 엄두조차 내지 못하는 순간 가속, 열 제어, 더블프리휠 설계로 최고 속력에 도달하거나 최대 파워에서도 기어 박스를 해제할 수 있고, 조용함과 부드러움이 지속됩니다.
The custom Specialized 1.3 Rx Trail-tuned motor is built for the Levo and features a 15% power increase and a significant efficiency increase compared to the Specialized 1.2 motor. This successfully places it at the top of e-bike motor technology. It has many other features that no other e-bike can touch, like instant engagement, fantastic heat management, a double freewheel design that disengages the gear box when you hit top speed, and silent, smooth, and consistent output—even at max power.
터보 M1-504 배터리는 통합 트레일 디스플레이와 ANT+/Bluetooth® 모듈 및 미션 콘트롤(Mission Control) 앱 연결을 지원합니다. 트레일에 최적화된 504Wh의용량을 자랑하며 다운튜브와 완벽하게 결합되어 있습니다.
The Specialized M1-504 battery features an integrated Trail Display and ANT+/Bluetooth® module with Mission Control App connectivity. It also houses 504Wh of trail-taming juice, and it's neatly integrated into the down tube.
FRAME
Specialized M5 Premium Aluminum, 6Fattie/29 Trail Geometry, integrated down tube battery, enclosed internal cable, Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 135mm of travel
FORK
RockShox Revelation RC 6Fattie/29, 51mm offset, 34mm stanchions, 150mm of travel
SEAT BINDER
Alloy, 34.9mm
REAR SHOCK
RockShox Monarch RT, Rx Trail Tune, AUTOSAG, rebound and 2-position compression adjust, 197x48mm
RIMS
Roval Traverse 27.5, hookless alloy, 38mm inner width, tubeless ready, 24/28h
FRONT HUB
Specialized, sealed cartridge bearings, 15x110mm thru-axle, 24h
REAR HUB
Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
SPOKES
DT Swiss, stainless
FRONT TIRE
Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.8"
REAR TIRE
Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.8"
INNER TUBES
27.5 x 2.3" / 3.0", 40mm Presta valve
REAR DERAILLEUR
SRAM GX, long cage, 11-speed
SHIFT LEVERS
SRAM GXe, one-click lever
CASSETTE
SRAM PG-1130, 11-speed, 11-42t
CHAIN
KMC X11ET, 11-speed w/ Missing Link™
CRANKSET
Custom alloy crankarms
CHAINRINGS
Forged steel, 32T
STEM
Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm width
GRIPS
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Command Post IRcc, 12-position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm of travel
FRONT BRAKE
SRAM Guide RE, 4-piston caliper, hydraulic disc, 200mm
REAR BRAKE
SRAM Guide RE, hydraulic disc, 200mm
MOTOR
Specialized 1.3, custom Rx Trail-tuned motor, 250W Nominal
UI/REMOTE
Trail Handlebar Remote, motor mode switch & walk-assist
BATTERY
Specialized M1-504, integrated Trail Display, ANT+/Bluetooth® module, 504Wh, Mission Control App connectivity
CHARGER
Custom charger, 42V4A w/ Rosenberger plug
WIRING HARNESS
Custom Specialized wiring harness
PEDALS
Specialized Platform, Cr-Mo axle
* 무게는 그림과 같이 도색된 프레임 기준입니다. 색상, 프레임 크기, 구성 요소의 차이에 따라 실제 무게는 달라질 수 있습니다. 사양은 사전 통보 없이 변경될 수 있습니다.
S | M | L | XL | |
---|---|---|---|---|
Crank Length | 165mm | 165mm | 165mm | 165mm |
Handlebar Width | 780mm | 780mm | 780mm | 780mm |
Stem Length | 45mm | 60mm | 60mm | 60mm |
Saddle Width | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 380mm | 420mm | 420mm | 420mm |
Seat Tube Length, Center to Top | 396mm | 435mm | 468mm | 520mm |
Seat Tube Angle, Actual | 69° | 69° | 69° | 69° |
Seat Tube Angle, Effective | 73.3° | 73.6° | 73.9° | 74.2° |
Standover Height | 753mm | 762mm | 772mm | 780mm |
Stack | 598mm | 603mm | 630mm | 649mm |
Reach | 386mm | 411mm | 430mm | 456mm |
Head Tube Length | 100mm | 130mm | 150mm | 95mm |
Head Tube Angle | 66.1° | 66.1° | 66.1° | 66.1° |
BB Height | 340mm | 340mm | 340mm | 340mm |
BB Drop | 18mm | 18mm | 18mm | 18mm |
Chainstay Length | 459mm | 459mm | 459mm | 459mm |
Wheelbase | 1157mm | 1185mm | 1215mm | 1250mm |
Top Tube Length, Horizontal | 554mm | 581mm | 611mm | 644mm |
안전한 사용법 확인
