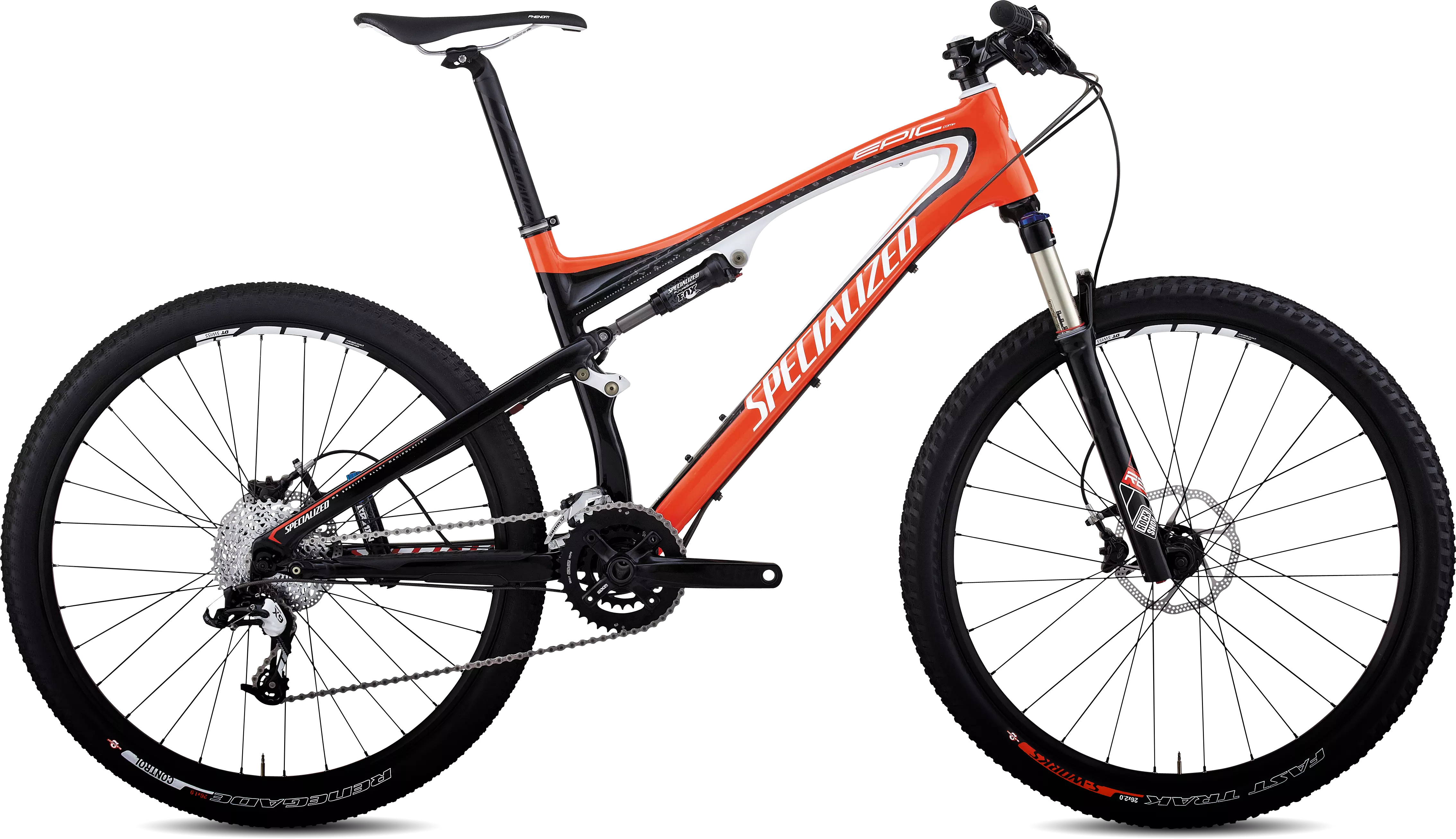

2012 Epic Comp Carbon

프레임

FACT 9m carbon front triangle, FACT IS construction, gussetless TT (S/M), M5 aluminum chainstays/seatstays, tapered HT, carbon PF30 BB, 135mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 100mm travel

헤드셋

1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower bearing for tapered integrated HT, cartridge bearings

시트 바인더

36.9mm clamp size, 7050 hard anodized alloy collar, single bolt

리어 샥

Fox/Specialized remote Mini-Brain w/new 2012 tune, inertia valve, w/ Brain Fade adjust, 187x47mm

포크

RockShox Reba RL, tapered alloy steerer, LO and reb adj. standard drop-outs, 100mm travel

림

Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h

앞 허브

Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 28h

뒤 허브

Specialized Hi Lo disc, laser-etched logo, double-sealed cartridge bearing, QR, 32h

스포크

DT Swiss Industry 2.0, (14g) stainless

앞 타이어

S-Works Fast Trak, 120 TPI, 2Bliss ready aramid bead, dual-compound, 26x2.0""

뒤 타이어

Specialized Renegade Control, 60 TPI, 2Bliss ready aramid bead, dual compound, 26x1.9""

튜브

Ultralight presta valve

앞 드레일러

SRAM X7, 10-speed, S3 direct mount for DMD, bottom-pull

뒤 드레일러

SRAM X9, 10-speed, mid cage

변속 레버

SRAM X7, 10-speed, aluminum trigger, w/MatchMaker clamp

카세트/스프라켓

SRAM PG-1030 10-speed, 11-36t

체인

KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates

크랭크셋

Custom SRAM S-1250, 7050 alloy arms, 10-speed XC double, PF30 spindle, S: 170mm, Others: 175mm

체인링

38/24

버텀 브라켓

SRAM PF30, OS press-in bearing, sealed cartridge

시트포스트

2014 butted alloy, single bolt setback, 30.9mm, 400mm

스템

Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 75mm, M: 90mm, L: 105mm, XL: 105mm

핸들바

Specialized XC flat, 2014 butted alloy, 680mm wide, 8º back sweep, 31.8mm

그립

Specialized lock-on, S/M: Grappler, Others: Grappler XL

안장

Specialized Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm width

앞 브레이크

Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, 160mm HS-1 rotor

뒤 브레이크

Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, 160mm HS-1 rotor

브레이크 레버

Custom Avid Elixir R SL hydraulic, tool-less reach adj., w/MatchMaker clamp

페달

Resin Test Ride Pedals with toe clips, CEN std.
