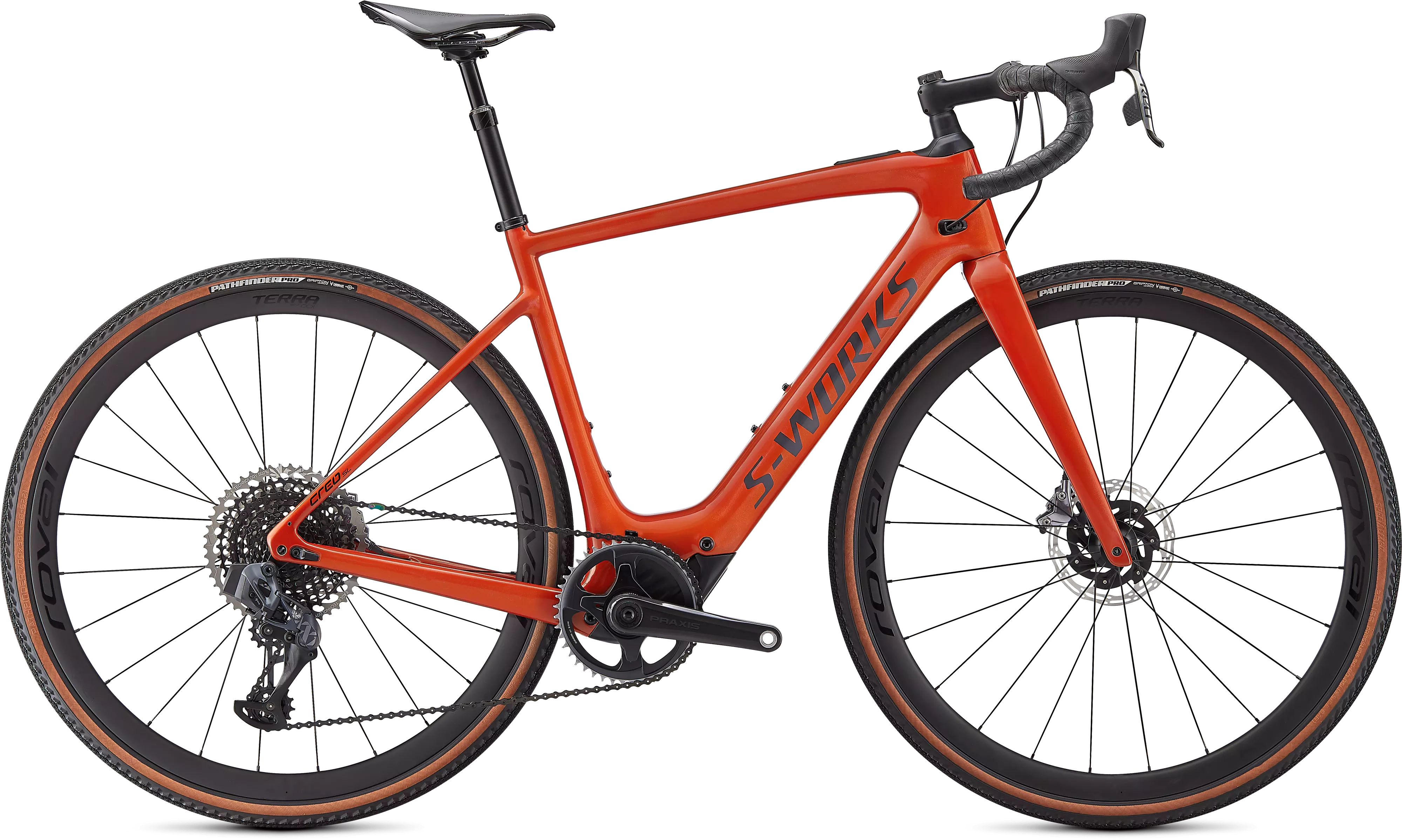

2021 S-Works Turbo Creo SL Carbon EVO

¥1,705,000

0 レビュー

グラベルライドがここまで魅力的なのはなぜでしょう?窮屈な街中の道や渋滞から逃れられるから?タイヤが砂利を踏みつける音が耳に心地よいから?それとも、冒険心が掻き立てられるから?その理由は何であれ、Turbo…

カラー:

Gloss Redwood/Satin Carbon

私にぴったりなサイズは?

身長を入力してバイクサイズを算出する。

身長:

すねの長さを測る

サイズを選ぶ

製品の詳細

Icon

グラベルライドがここまで魅力的なのはなぜでしょう?窮屈な街中の道や渋滞から逃れられるから?タイヤが砂利を踏みつける音が耳に心地よいから?それとも、冒険心が掻き立てられるから?その理由は何であれ、Turbo Creo SL EVOなら、森の奥まで突き進み、グラベルロードを軽快に下り、次なる冒険へと出かけられます。Creo SLと同じモーター、バッテリー、フレームを採用していますが、そのタイヤクリアランスを活かし、冒険にいつでも出られるようにするコンポーネントを搭載しているので、気の赴くままに走り出せます。あなたはあなたのまま、さらに速く走れるようになるのです。

他のS-Works バイクと同様、S-Works Turbo Creo SL Carbon EVOは最上級グレードのモデルです。FACT 11r フレームに、油圧式ダンパー仕様のFuture Shock 2.0、1xのSRAM Red AXS eTap、SRAM XX1 Eagleリアディレーラー、驚異的なギアレンジを誇る10-50t カセットを搭載します。Roval Terra CLX EVO ディスクカーボンホイールセットには、路面を問わず高い安心感と速さをもたらす38cのPathfinder Pro 2Bliss Ready タイヤを組み合わせました。さらに、16度のフレア形状が特徴の Easton EC70 AXカーボンハンドルバー、S-Works Future Stem、Easton EA70AXドロッパーシートポスト、スペシャライズド Body Geometry Power Expert サドルで各部を固めています。



このバイクに乗り出したらきっと止まりたくなくなるため、レンジエクステンダーが付属します。

※MY21年モデルより、Road Remoteを装備しハンドルから手を放さずにアシストモードの変更が可能になりました。

  • The Creo SL is the lightest e-bike in its class—literally kilograms lighter than the competition. Not only does the lightweight and stiff FACT 11r carbon frame inspire dancing on the pedals and diving into corners, but it also reduces overall system weight and increases the range.

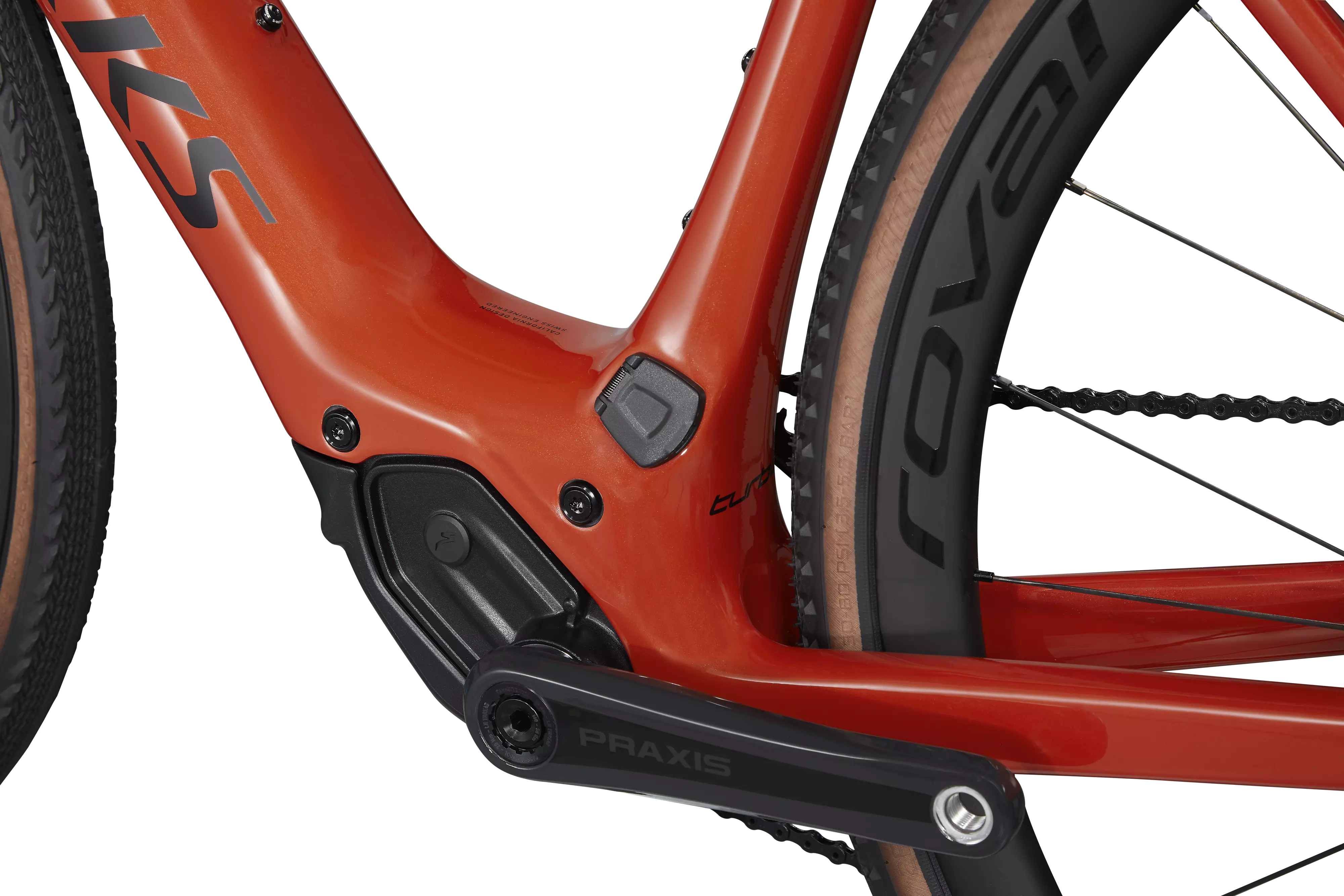

  • The lightweight SL 1.1 motor doubles your effort with as much as 240 watts of silent and powerful assistance to amplify your ride. The motor’s responsive torque curve delivers power perfectly in-tune with your normal riding cadence and leaves no resistance when riding unassisted.

  • Battery anxiety? Not on the Creo SL. With up to 80 miles of range from the internal battery, the Creo SL eats up big miles and long days. Our included range extender provides up to 40 additional miles of mountain-flattening power.

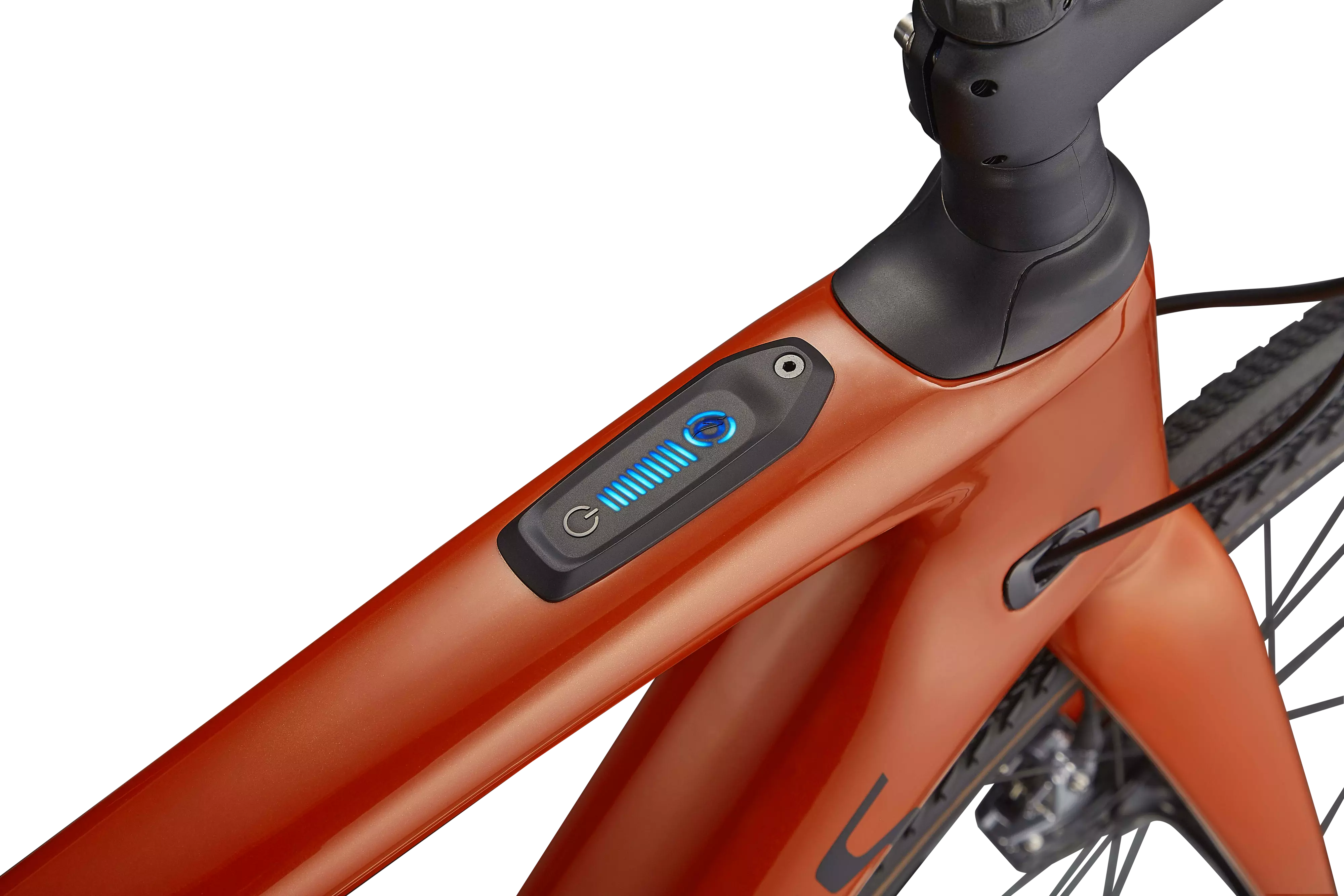

  • By connecting with our Mission Control App, you're able to tune the SL 1.1 motor to your riding style, record rides, and monitor the battery. The app can handle battery management automatically too, ensuring the battery will last as long as you need it to. The motor even has a built-in power meter that transmits to any ANT+ head unit. Don’t want to connect? No worries— the Turbo Connect Unit (TCU) on the top tube gives you all the control you need to ride.

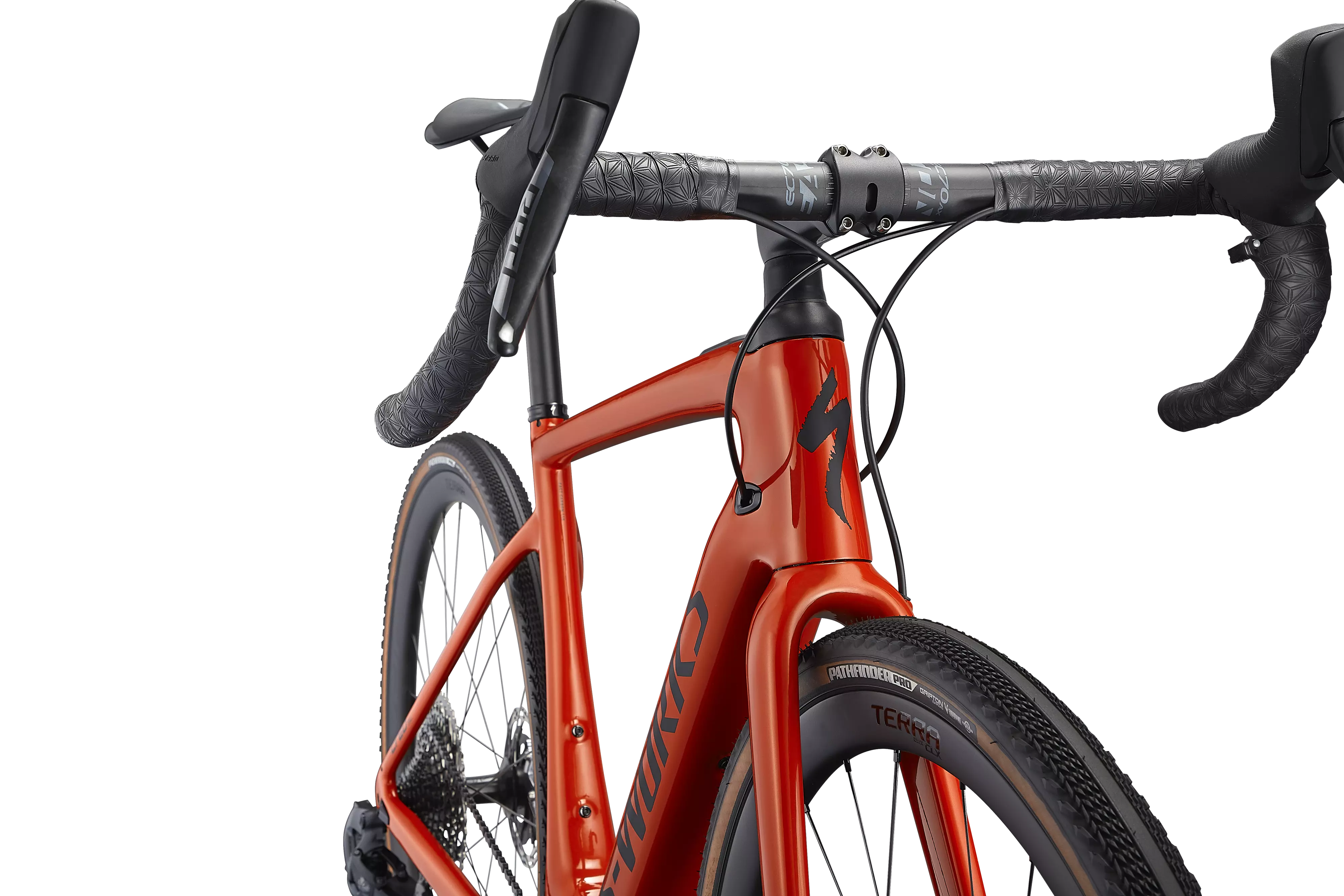

  • With the Future Shock 2.0, you'll feel a reduction in fatigue and an increase in speed, no matter the terrain. The 2.0 iteration gives you more control via a knob atop the stem. This knob adjusts compression from fully-open to stiff, while hydraulically-damped internals control rebound. The new Smooth Boot, top cap, and Future Stem also enhance the aesthetic, so you get a clean transition from head tube to stem.

  • We’ve learned there can be more difference between two male cyclists than between a male and female. Gender alone doesn’t provide enough data to specialize. It means that separating bikes as male or female is arbitrary and outdated. With this in mind, we've developed a geometry that's best-fit for all riders. One that's comfortable and snappy on the road, yet features all of the attributes you'd want from a proper gravel bike—a long wheelbase, raked-out fork, and low bottom bracket that keeps the Turbo Creo SL EVO stable at high speeds and delivers control in corners.

技術仕様

Icon

E-Bike

Motor

Specialized SL 1.1, custom lightweight motor

Battery

Specialized SL1-320, fully integrated, 320Wh

UI/Remote

Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®

Charger

Custom charger, 48V System w/ SL system charger plug

Wiring Harness

Custom Specialized wiring harness w/ chargeport

Frameset

Frame

FACT 11r carbon, Open Road Geometry, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, Boost™ 12x148mm

Seat Binder

Specialized Alloy, 30.8mm

Suspension

Fork

Future Shock 2.0 w/ Smooth Boot, Boost™ 12x110mm thru-axle, flat-mount disc

Brakes

Front Brake

SRAM RED eTAP AXS, hydraulic disc

Rear Brake

SRAM RED eTAP AXS, hydraulic disc

Drivetrain

Shift Levers

SRAM RED eTap AXS

Rear Derailleur

SRAM XX1 Eagle AXS

Cassette

SRAM XG-1295 Eagle, 12-speed, 10-50t

Chain

SRAM XX1 Eagle, 12-speed

Crankset

Praxis Carbon/M30 Spindle Interface

Chainrings

SRAM X-SYNC, 44T

Wheels & Tires

Rear Wheel

Roval Terra CLX EVO, 30mm inner width carbon rim, 32mm depth, Roval AFD hub, 24h, DT Swiss Aerolite spokes

Front Tire

Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c

Front Wheel

Roval Terra CLX EVO, 30mm inner width carbon rim, 32mm depth, Roval AFD hub, 24h, DT Swiss Aerolite spokes

Rear Tire

Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c

Inner Tubes

Presta valve, 48mm

Cockpit

Stem

S-Works Future Stem w/ Integrated Computer mount

Handlebars

Easton EC70 AX Carbon, 16-degree flare

Tape

Supacaz Super Sticky Kush

Saddle

Body Geometry S-Works Power, carbon fiber rails, carbon fiber base

SeatPost

Easton EA70AX Dropper seat post

Accessories

SWAT

Fender Clamp Adaptor

* 重量は、写真のように塗装されたフレームの生産に基づいています。実際の重量は、カラーウェイ、フレームサイズ、コンポーネントのバリエーションにより異なります。仕様は予告なしに変更されることがあります。

ジオメトリー

Icon
XSSMLXLXXL
Crank Lengthmm
Handlebar Widthmm
Stem Lengthmm
Saddle Widthmm
Seatpost Lengthmm
Stack573mm575mm592mm615mm643mm675mm
Reach363mm373mm379mm384mm391mm399mm
Head-Tube Length145.5mm145.5mm163.5mm185.5mm217mm250mm
Head-Tube Angle71.5°72°72.5°73°73°73°
B-B Height264.5mm264.5mm267mm267mm269.5mm269.5mm
B-B Drop80.5mm80.5mm78mm78mm75.5mm75.5mm
Trail68mm60mm56mm53mm53mm52mm
Fork Length (full)390mm390mm390mm390mm390mm390mm
Fork Rake/Offset50mm50mm50mm50mm50mm50mm
Front-Center586mm592mm598mm605mm621mm636mm
Chain-Stay Length426mm426mm426mm427mm427mm428mm
Wheelbase999mm1005mm1012mm1020mm1036mm1052mm
Top-Tube Length (horizontal)527mm539mm548mm566mm581mm605mm
Bike Stand-Over Height728mm731mm759mm782mm810mm840mm
Seat-Tube Length415mm447.5mm477.5mm502.5mm527.5mm557.5mm
Seat-Tube Angle74°74°74°73.5°73.5°73°
ジオメトリー

マニュアルのダウンロード

Icon
Download Icon
Li Ion Battery UN38.3 Test Summary
Download Icon
Turbo Creo SL User Manual (JP)
Download Icon
Turbo Creo SL User Manual (EN/FR/DE/CZ/PL/SK)
Download Icon
Turbo Creo SL User Manual (EN/IT/SP/PT/KR/CNT/JP)
Download Icon
Turbo Creo SL User Manual (NL/DK/NO/SE/SL/HR/RU)
Download Icon
Specialized Bicycle Owner's Manual (All Languages)
Download Icon
Charger User Manual (SBC-C04 / SBC-C05 / SBC-C06 / SBC-C07)
Download Icon
SPECIALIZED STEM ACCESSORY MOUNT GUIDE
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_US
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_AU-NZ
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_CA
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_JP
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_CNT
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_CH
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_CZ_SK
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_SL
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_HR
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_DE
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_DK
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_FI
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_ES
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_PT
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_FR
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_GB
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_IT
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_NL
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_NO
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_PL
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_LATAM
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_KOR
Download Icon
SPECIALIZED_TURBO_ROAD_GRAVEL_ASSEMBLY_GUIDE_CNS
Download Icon
Range Extender (SBC-B16) User Manual
Download Icon
RIDING_WITH_FRAME_FIXED_CARGO_AND_THE_FUTURE_SHOCK_ADDENDUM.pdf
Download Icon
CREO SL - ROAD REMOTE INSTALLATION GUIDE
Download Icon
Future Shock Front Suspension (2.0 damper/1.5 undamped) User Manual
Download Icon
EU DECLARATION OF CONFORMITY - TURBO BATTERIES
Download Icon
ARTICLE 10 - TECHNICAL INFORMATION ON BATTERY PERFORMANCE & DURABILITY

安全性についての注意事項はこのページのマニュアルダウンロードセクションよりご確認ください。
