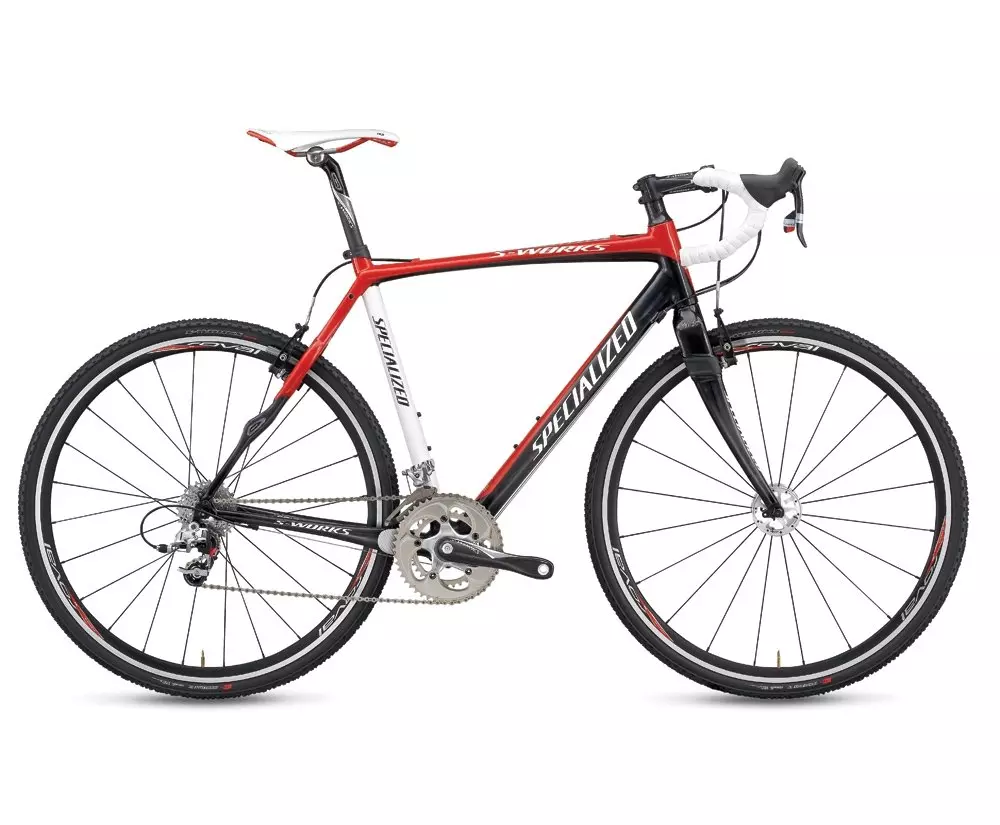

2009 S-Works TC

FRAME

S-Works FACT 10m carbon, Az1 construction, semi-compact Tricross design, Zertz inserts, OS BB, rack and fender fittings

FORK

S-Works FACT carbon, monocoque construction, full carbon legs, crown and steerer w/ Speed Zertz, rack and fender fittings

HEADSET

S-Works Mindset, 1-1/8"" integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, 20mm carbon cone w/ one 10mm and two 5mm carbon spacers

SEAT BINDER

S-Works CNC alloy w/ brake stop, 32.6mm

FRONT TIRE

S-Works Houffalize CX, 700x32c, dual-compound tread, aramid bead, 127TPI

REAR TIRE

S-Works Houffalize CX, 700x32c, dual-compound tread, aramid bead, 127TPI

INNER TUBES

Specialized standard presta tube

RIMS

Roval Pavé SL, E5 alloy mid-profile, machined brake surface

FRONT HUB

Roval Pave SL, 20 hole, cold forged alloy five-spoke high flange, adjustable alloy axles, Roval QR

REAR HUB

Roval Pave SL, 24 hole, cold forged alloy five-spoke high flange, adjustable alloy axles, Roval QR

SPOKES

DT aero butted

FRONT DERAILLEUR

SRAM Red, 34.9mm clamp, bottom pull

REAR DERAILLEUR

SRAM Red

SHIFT LEVERS

SRAM Red Double Tap

CASSETTE

SRAM OG 1090, 10-speed 11-26t, Ti/carbon

CHAIN

SRAM 1090R, 10-speed

CRANKSET

S-Works FACT carbon, integrated oversize design

CHAINRINGS

48 x 34t

BOTTOM BRACKET

S-Works oversize integrated

STEM

S-Works Pro-Set, 3D forged, carbon/alloy face plate w/ Ti bolts, carbon top cap, 4-position adjustable

HANDLEBARS

S-Works SL FACT carbon handlebar, short-reach drop, 31.8mm

TAPE

Body Geometry cork ribbon

SADDLE

Body Geometry Phenom SL, super light foam, carbon reinforced base, hollow Ti rails, microfiber cover

SEATPOST

S-Works SL, FACT carbon w/ Zertz insert, 27.2mm

FRONT BRAKE

Forged linear pull brakes w/ cartridge pads

REAR BRAKE

Forged linear pull brakes w/ cartridge pads

BRAKE LEVERS

SRAM Force, 10-speed Double Tap

PEDALS

Silver cage, black body, w/ toe clip and strap
