S-Works Tarmac SL2 Module

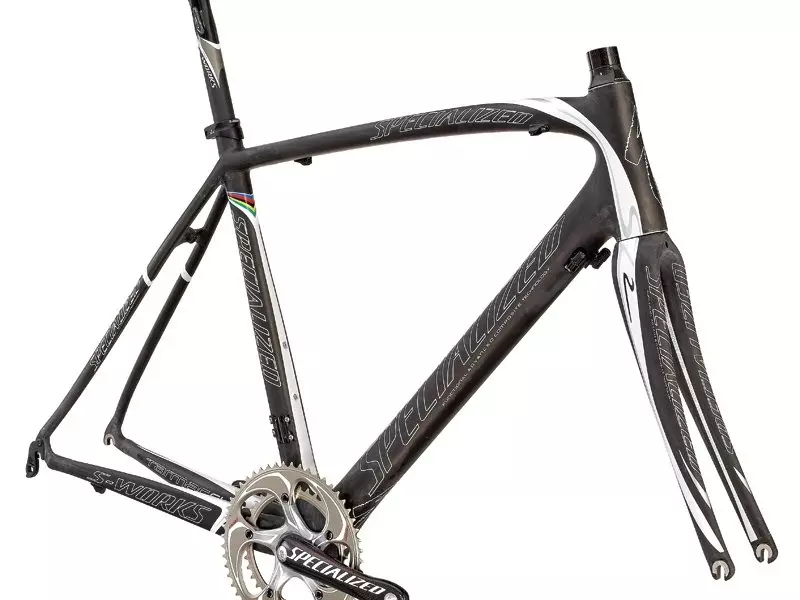

2008 S-Works Tarmac SL2 Module
技術仕様
FRAMESET
FRAME
S-Works FACT 11r carbon, FACT IS construction, compact race design
FORK
S-Works FACT monocoque carbon fork, full carbon legs, crown and steerer, 1.5"" crown bearing race
SEAT BINDER
S-Works CNC alloy binder, 32.6mm clamp
HEADSET
S-Works Mindset, 1 1/8"" integrated threadless, sealed cartridge ceramic bearings w/ stainless steel races, carbon 20mm cone w/ one 10mm and two 5mm carbon spacers
DRIVETRAIN
CRANKSET
S-Works FACT carbon crankset, integrated oversize design
BOTTOM BRACKET
S-Works, oversized integrated
ドライブトレイン
チェーンリング
53x39T(Module),50x34T(Module Compact)
* 重量は、写真のように塗装されたフレームの生産に基づいています。実際の重量は、カラーウェイ、フレームサイズ、コンポーネントのバリエーションにより異なります。仕様は予告なしに変更されることがあります。
ジオメトリー
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Ground-Top | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Seat-Tube Angle | 57° | 62° | 57° | 56° | 53° | 56° |
| Head-Tube Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Head-Tube Angle | 576° | 576° | 583° | 591° | 605° | 612° |
| Chain-Stay Length | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| Top-Tube Length, Horizontal | 74mm | 75.5mm | 73.5mm | 73.25mm | 72.5mm | 73mm |
| Front-Center | 100mm | 120mm | 145mm | 170mm | 205mm | 230mm |
| Handle-Bar Width | 300mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Stand-Over Height | 100mm | 90mm | 110mm | 120mm | 120mm | 130mm |
| Seat-Tube Length, B-B Center to Top | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Fork Rake | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
| B-B Drop | 72.25mm | 73mm | 73mm | 73.5mm | 73.5mm | 74mm |
| Stack | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Reach | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Trail | 730mm | 755mm | 777mm | 800mm | 833mm | 860mm |
| Wheelbase | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
