Roubaix Comp Frameset

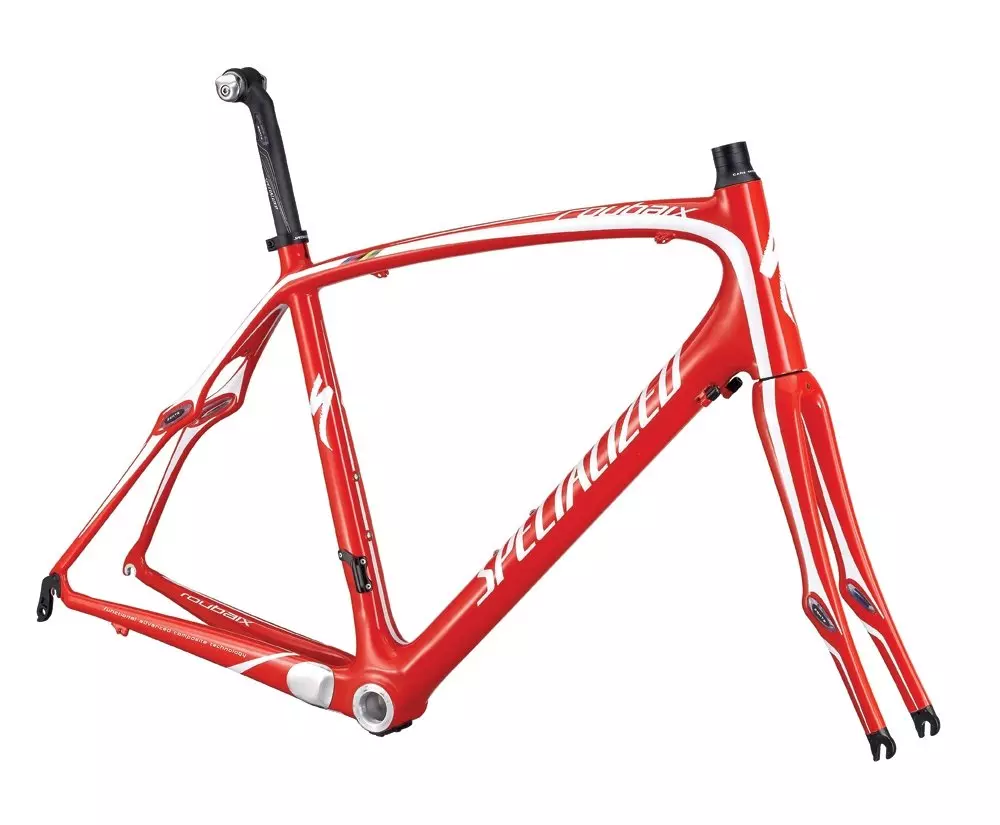

2009 Roubaix Comp Frameset
SERIOUSLY SMOOTH AND SERIOUSLY FAST. When the new Roubaix isn't silencing the cobbles and stealing the podium of races by the same name, it's busy turning your next 100 miles in to the "Big Easy."
技術仕様
FRAMESET
FRAME
Specialized FACT 7r carbon, triple monocoque construction, compact race design, Zertz inserts
FORK
Specialized FACT carbon, monocoque construction, OS race for 1-3/8"" bearing, full carbon legs, crown and steerer w/ Zertz inserts.
HEADSET
Specialized Mindset Plus, 1-1/8"" integrated threadless, sealed cartridge bearings, 20mm alloy cone w/ one 10mm and two 5mm alloy spacers
SEAT BINDER
Specialized CNC alloy, 32.6mm
COCKPIT
SEATPOST
Specialized Pro SL, FACT carbon w/ Zertz insert, 27.2mm
* 重量は、写真のように塗装されたフレームの生産に基づいています。実際の重量は、カラーウェイ、フレームサイズ、コンポーネントのバリエーションにより異なります。仕様は予告なしに変更されることがあります。
ジオメトリー
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Ground-Top | 73mm | 73mm | 71.5mm | 71.5mm | 70mm | 70mm |
| Seat-Tube Angle | 59° | 59° | 59° | 56° | 53° | 56° |
| Head-Tube Angle | 582° | 588° | 595° | 606° | 621° | 628° |
| Chain-Stay Length | 49mm | 49mm | 49mm | 49mm | 49mm | 49mm |
| Top-Tube Length, Horizontal | 74mm | 75.5mm | 73.5mm | 73.25mm | 72.5mm | 73mm |
| Front-Center | 125mm | 145mm | 165mm | 190mm | 225mm | 245mm |
| Handle-Bar Width | 0mm | 0mm | 0mm | 0mm | 0mm | 0mm |
| Seat-Tube Length, B-B Center to Top | 412mm | 412mm | 415mm | 415mm | 418mm | 420mm |
| Fork Rake | 983mm | 989mm | 1000mm | 1010mm | 1029mm | 1038mm |
| B-B Drop | 72mm | 72mm | 72mm | 72.5mm | 72.5mm | 73mm |
| Stack | 440mm | 475mm | 495mm | 515mm | 535mm | 565mm |
| Reach | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Trail | 715mm | 737mm | 755mm | 776mm | 802mm | 827mm |
