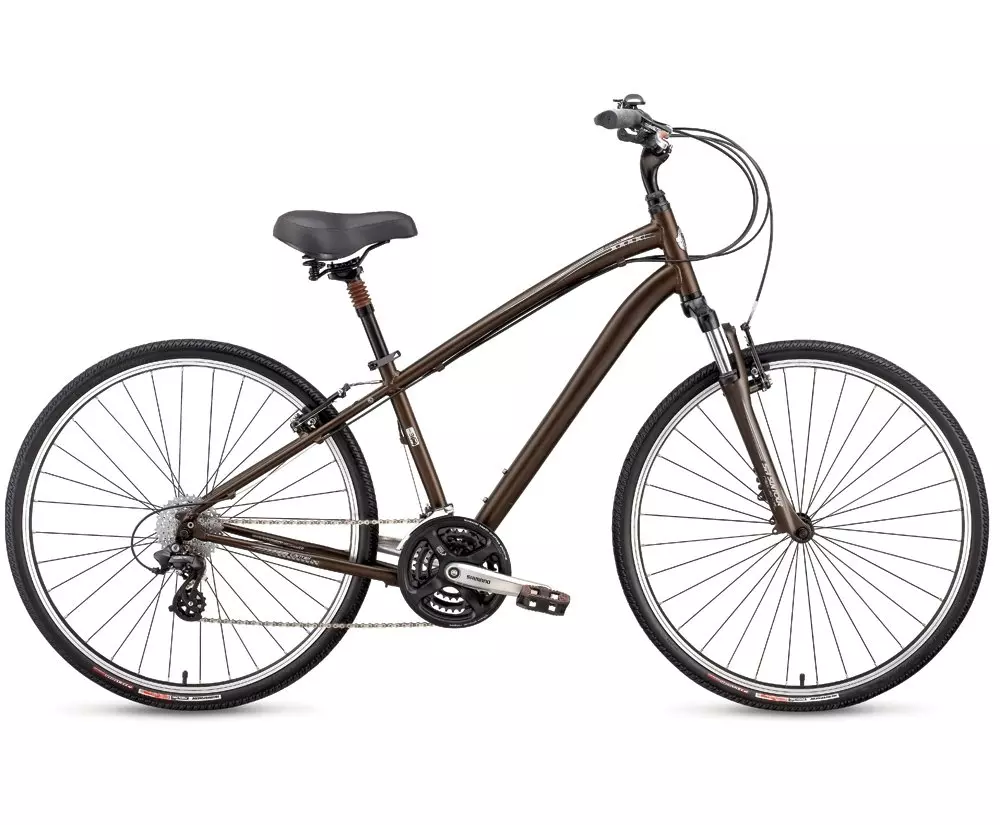

2009 Globe Carmel 3 700c
0 レビュー
The Carmel is a no-brainer. Zero intimidation factor. All fun. Anyone and everyone…
カラー:
Satin Bronze
私にぴったりなサイズは？
サイズを選ぶ
製品の詳細
The Carmel is a no-brainer. Zero intimidation factor. All fun. Anyone and everyone who's looking for unsurpassed comfort, easy travels and feeling like a kid again will love this bike.
A1 Premium Aluminum フレームは、アップライトで快適な乗車姿勢が得られるGround Controlジオメトリーを採用。足つき性を高めた設計により停止と走り出しが容易
日本国内取扱いサイズ：S,M,L,XL
A1 Premium Aluminum フレームは、アップライトで快適な乗車姿勢が得られるGround Controlジオメトリーを採用。足つき性を高めた設計により停止と走り出しが容易
A1 Premium Aluminum フレームは、アップライトで快適な乗車姿勢が得られるGround Controlジオメトリーを採用。足つき性を高めた設計により停止と走り出しが容易
日本国内取扱いサイズ：S,M,L,XL
技術仕様
FRAMESET
FRAME
Globe A1 Premium Aluminum, ground control geometry, 700c comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable 98954020 hanger
HEADSET
Specialized 1-1/8"" threaded, loose ball
SEAT BINDER
Specialized alloy w/ QR
SUSPENSION
FORK
SR Suntour NEX-4110-700, 63mm, 1pc. alloy lower, Hi-Ten stanchions and steerer, coil/mcu w/ preload adj., spring assisted seals
WHEELS
FRONT TIRE
Specialized Hemisphere, 700x1.95"", 60TPI, wire bead, Armadillo casing
REAR TIRE
Specialized Hemisphere, 700x1.95"", 60TPI, wire bead, Armadillo casing
INNER TUBES
Specialized schraeder valve
RIMS
Specialized Globe, 700c, 32h, double wall w/ machine sidewalls, 32h
FRONT HUB
Specialized, forged alloy, double sealed, polished races, 32h, steel QR
REAR HUB
Specialized, forged alloy, double sealed, ground race, cassette, QR, 32h
SPOKES
1.8mm (15g) stainless
DRIVETRAIN
FRONT DERAILLEUR
Shimano FD-C102, 31.8mm clamp, top swing, dual pull
REAR DERAILLEUR
Shimano Acera
SHIFT LEVERS
Shimano SL-MC40, 8-speed, rapid fire
CASSETTE
Shimano HG-40, 8-speed, 11-32t
CHAIN
KMC X8 w/ reuseable Missing Link
CRANKSET
Shimano FCM-151 w/ chainguard
CHAINRINGS
48 x 38 x 28t
BOTTOM BRACKET
FSA BB-7420, cartridge bearings, 68mm x 122.5mm for 47.5mm chain line
COCKPIT
STEM
Globe ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp
HANDLEBARS
Globe comfort riser bar, 25.4mm, 40mm rise, 620mm wide, 15 degree back sweep, 5 degree up
GRIPS
Men's Body Geometry Comfort w/ integrated bell, closed end, 132mm
SADDLE
Specialized Comfort Plus w/ springs
SEATPOST
Alloy suspension, 27.2mm, two bolt head w/ preload adjust
BRAKES
FRONT BRAKE
Alloy linear pull w/ adj. housing, 1pc. pad
REAR BRAKE
Alloy linear pull w/ adj. housing, 1pc. pad
BRAKE LEVERS
Tektro alloy 4-finger, kraton lever pad, for rapid fire shifter
ACCESSORIES
PEDALS
Composit comfort pedal w/ Kraton top
* 重量は、写真のように塗装されたフレームの生産に基づいています。実際の重量は、カラーウェイ、フレームサイズ、コンポーネントのバリエーションにより異なります。仕様は予告なしに変更されることがあります。
ジオメトリー
| S | M | L | WS | XL | WM | |
|---|---|---|---|---|---|---|
| Ground-Top | 73mm | 73mm | 73mm | 73mm | 73mm | 73mm |
| Seat-Tube Angle | 89° | 89° | 93° | 89° | 93° | 89° |
| Head-Tube Length | 170mm | 170mm | 170mm | 170mm | 170mm | 170mm |
| Head-Tube Angle | 640° | 645° | 664° | 640° | 674° | 645° |
| Chain-Stay Length | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| Top-Tube Length, Horizontal | 70mm | 69mm | 69mm | 69mm | 70mm | 69mm |
| Front-Center | 150mm | 160mm | 170mm | 170mm | 190mm | 180mm |
| Handle-Bar Width | 350mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| Stand-Over Height | 35mm | 35mm | 35mm | 35mm | 35mm | 35mm |
| Seat-Tube Length, B-B Center to Top | 500mm | 500mm | 500mm | 500mm | 500mm | 500mm |
| Fork Rake | 1131mm | 1136mm | 1155mm | 1131mm | 1165mm | 1135mm |
| B-B Drop | 69.5mm | 69.5mm | 69mm | 69.5mm | 69mm | 69.5mm |
| Stack | 363mm | 411mm | 475mm | 363mm | 551mm | 437mm |
| Reach | 600mm | 615mm | 630mm | 600mm | 640mm | 615mm |
| Trail | 756mm | 777mm | 783mm | 480mm | 837mm | 496mm |
| Wheelbase | 620mm | 620mm | 620mm | 620mm | 620mm | 620mm |
マニュアルのダウンロード
安全性についての注意事項はこのページのマニュアルダウンロードセクションよりご確認ください。
