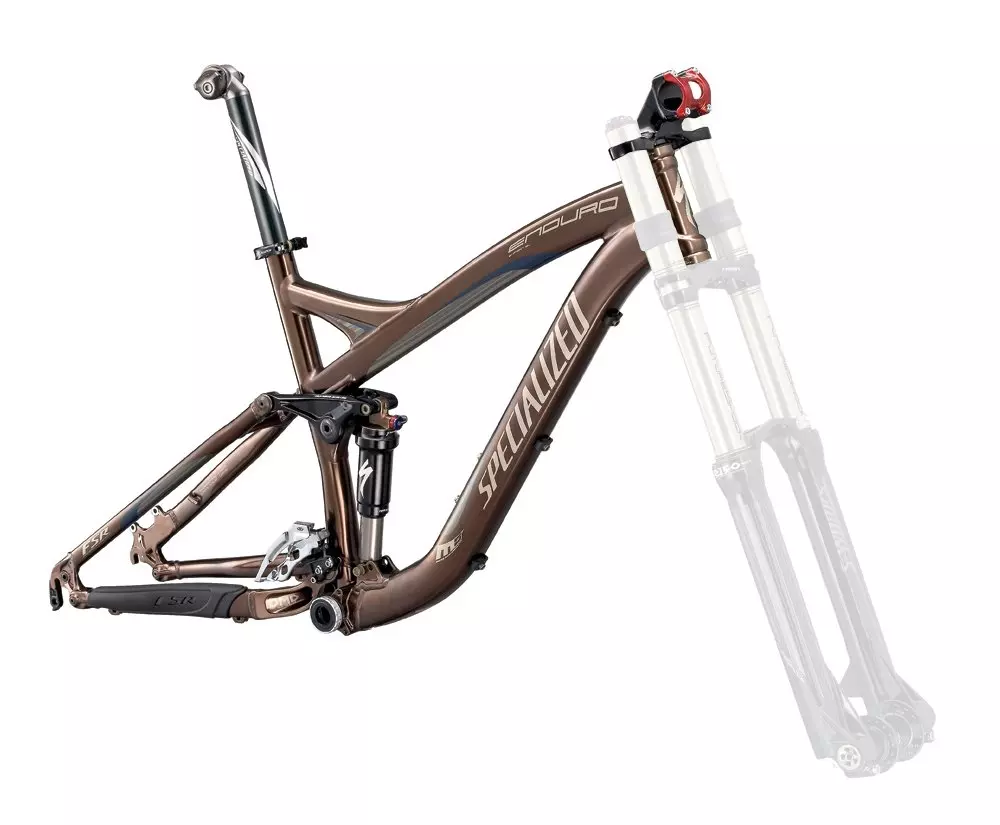

2009 Enduro SL Expert Frame
0 レビュー
THE ENDURO® SL'S 27 POUNDS of All Mountain grit, pedaling efficiency and six inches…
カラー:
Anodized Brown
私にぴったりなサイズは？
サイズを選ぶ
製品の詳細
THE ENDURO® SL'S 27 POUNDS of All Mountain grit, pedaling efficiency and six inches of travel let you climb without crying and rail in the technical terrain. If you want to ride the whole mountain and really own it, the Enduro SL is your best bike.
0技術仕様
FRAMESET
FRAME
Enduro M5 Manipulated Alloy, fully manipulated frame w/ ORE TT and DT, forged HT, sealed cartridge bearing pivots, ISCG mount adj. geometry, replaceable derailleur hanger, 150mm travel
HEADSET
1-1/8"" Threadless, 10mm insertion alloy cups, sealed cartridge bearing
SEAT BINDER
7050 hard annodized alloy collar w/ QR, 34.9mm clamp ID, black
SUSPENSION
REAR SHOCK
Specialized AFR Shock w/ Spike valve, air spring, adj. rebound and low speed compression, 7.875x2.25""
COCKPIT
STEM
Specialized adjustable rise, 31.8mm clamp, 3D forged w/ CNC finish
SEATPOST
2014 butted alloy, single bolt setback, 30.9x350/400mm
DRIVETRAIN
FRONT DERAILLEUR
Shimano M770 XT, DMD, top swing, dual pull
* 重量は、写真のように塗装されたフレームの生産に基づいています。実際の重量は、カラーウェイ、フレームサイズ、コンポーネントのバリエーションにより異なります。仕様は予告なしに変更されることがあります。
ジオメトリー
| S | M | L | XL | |
|---|---|---|---|---|
| Bottom Bracket Height - Low Setting | 356mm | 356mm | 356mm | 356mm |
| Top Tube Length (Horizontal) | 559mm | 591mm | 620mm | 647mm |
| Head Tube Height | 102mm | 108mm | 128mm | 150mm |
| Head Tube Angle - Low Setting | 67° | 67° | 67° | 67° |
| Seat Tube Angle (Actual) - Low Setting | 71.9° | 71.9° | 71.9° | 71.9° |
| Seat Tube Angle (Effective) - Low Setting | 74° | 74° | 74° | 74° |
| Top Tube Length (Actual) | 545mm | 574mm | 602mm | 630mm |
| Head Tube Angle - High Setting | 67.9° | 67.9° | 67.9° | 67.9° |
| Bottom Bracket Height - High Setting | 367mm | 367mm | 367mm | 367mm |
| Seat Tube Angle (Actual) - High Setting | 72.8° | 72.8° | 72.8° | 72.8° |
| Seat Tube Angle (Effective) - High Setting | 73.1° | 73.1° | 73.1° | 73.1° |
| Seat Tube Length - Center to Top | 421mm | 444mm | 483mm | 533mm |
| Wheel Base | 1115mm | 1147mm | 1177mm | 1205mm |
| Standover Height | 742mm | 748mm | 762mm | 782mm |
| Chainstay Length | 421mm | 421mm | 421mm | 421mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 660mm | 660mm | 660mm | 660mm |
| Stem Length | 60mm | 80mm | 80mm | 100mm |
| Seatpost Length | 350mm | 350mm | 400mm | 400mm |
