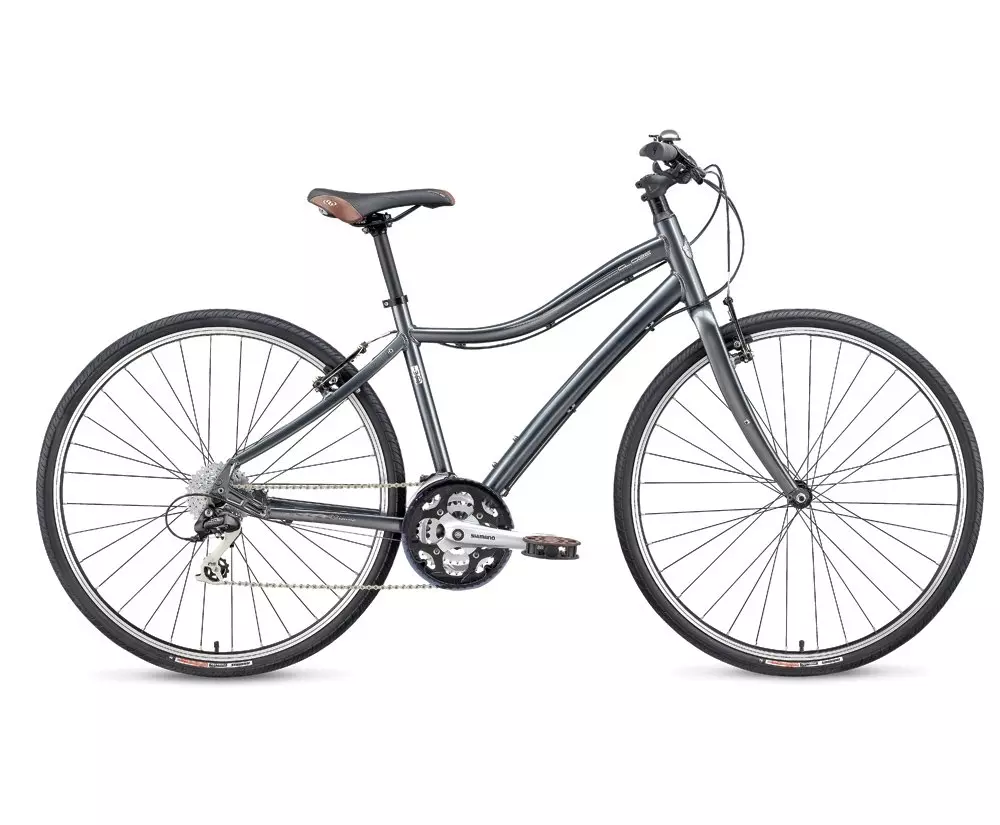

Women's Globe Vienna 3
Part No.

Women's Globe Vienna 3

Part No.  22685
Women's Globe Vienna 3
Technical Specifications
The multi-tool of city bikes—as versatile, efficient and economical as they come. Once you realize your college 10-speed isn't what it used to be, go for this simple, clean and reliable bike built for your everyday commute, fitness break or casual loop.
  • The lightweight A1 Premium Aluminum trekking frame features ergonomic and stable geometry with low standover height for added security.
  • The A1 Premium Aluminum fork is designed for light weight and precise steering.
  • Women's Body Geometry Comfort grips with integrated bell prevent hand pain and let others know you're coming.
  • The Shimano Alivio rear derailleur gives precise gear changes.
  • A Body Geometry Sonoma saddle reduces pressure on sensitive tissue.

Technical Specifications

SEAT BINDER Specialized forged alloy
HEADSET Specialized 1 1/8"" threadless, semi integrated, Campy style
FRAME Globe A1 Premium Aluminum trekking design, low standover TT, women's geometry, fully manipulated tubing w/ fender and rack braze-ons, integrated kickstand mount
FRONT HUB Specialized, forged alloy, double sealed, ground race, steel QR, 32h
REAR HUB Specialized, forged alloy, double sealed, ground race, cassette, QR, 32h
INNER TUBES Specialized schraeder valve
SPOKES 1.8mm (15g) stainless
RIMS Specialized/Alex Globe, 700c, pinned, double wall w/ CNC sidewalls, 32h
FRONT TIRE Specialized Nimbus, 700x35c, 60TPI, Flak Jacket
REAR TIRE Specialized Nimbus, 700x35c, 60TPI, Flak Jacket
BOTTOM BRACKET FSA BB-7420, cartrdge bearings, 68mm x 122.5mm for 47.5mm chain line
CHAIN KMC X8 w/ reuseable Missing Link
CRANKSET Shimano FC-M36108 w/ chainguard
CASSETTE SRAM PG-830, 8-speed, 11-32t
SHIFT LEVERS Shimano Rapid Fire, 8-speed
FRONT DERAILLEUR Shimano FD-M310, 31.8mm clamp, top swing, dual pull
CHAINRINGS 48A x 38S x 28S
SADDLE Specialized Sonoma, Body Geometry, 155mm width, front and rear bumpers
SEATPOST Specialized alloy two bolt, micro adjust, 27.2mm
GRIPS Women's Body Geometry Comfort w/ integrated bell, closed end, 132mm
HANDLEBARS Globe alloy riser, 25.4mm, 25mm rise, 620mm wide, 8 degree back sweep, 8 degree up
STEM Globe 3D forged, 10 degree rise, 25.4mm clamp
BRAKE LEVERS BL-42 for Revo shifter
FRONT BRAKE Alloy linear pull w/ adj. housing, 1pc. pad
REAR BRAKE Alloy linear pull w/ adj. housing, 1pc. pad
PEDALS Globe, Body Geometry, anti-slip composite, 9/16""
FORK Globe A1 Premium Aluminum steerer and blades


Geometry Chart

Vienna - Geometry

  45W 49W 53W 57W
Handle-Bar Width 350mm 350mm 350mm 350mm
Reach 545mm 555mm 570mm 585mm
Wheelbase 620mm 620mm 620mm 620mm
Stack 420mm 450mm 490mm 520mm
Seat-Tube Length, B-B Center to Top 450mm 450mm 450mm 450mm
Head-Tube Length 170mm 170mm 175mm 175mm
Ground-Top 65mm 65mm 65mm 65mm
Top-Tube Length, Horizontal 76mm 75mm 74mm 73mm
Front-Center 160mm 170mm 190mm 210mm
Head-Tube Angle 637° 643° 652° 651°
Fork Rake 1079mm 1085mm 1094mm 1093mm
Trail 700mm 703mm 723mm 739mm
Stand-Over Height 75mm 75mm 90mm 90mm
Chain-Stay Length 51mm 51mm 51mm 51mm
Seat-Tube Angle 82° 82° 82° 75°
B-B Drop 69mm 69mm 69mm 70mm
