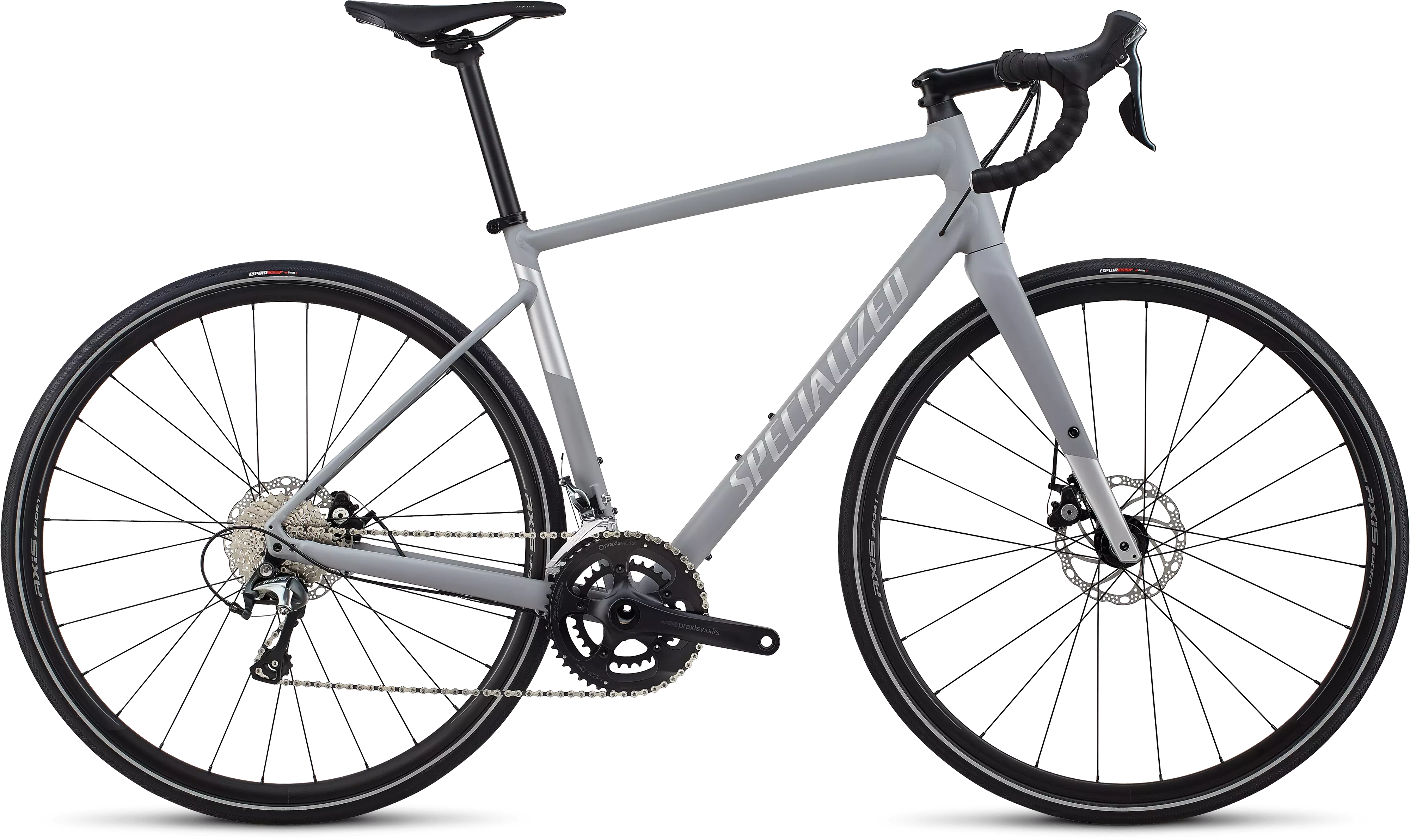

Women's Diverge E5 Elite
Overview
Technical Specifications
Geometry
Rider Reviews
Back To Top

Technical Specifications

FRAMESET
FRAME Specialized E5 Premium Aluminum, Open Road Geometry, threaded BB, 12x142mm thru-axle, flat mount disc
SUSPENSION
FORK Specialized FACT carbon, flat-mount disc, 12x100mm thru-axle
COCKPIT
SEAT BINDER Alloy rack mount seat collar, 31.8mm
STEM Specialized, 3D forged alloy, 4-bolt, 7-degree rise
HANDLEBARS Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
TAPE Specialized S-Wrap
SADDLE Women's Body Geometry Myth Sport, 155mm, Thin, steel rails
SEATPOST Alloy, 2-bolt clamp
WHEELS & TIRES
FRONT WHEEL Axis Sport Disc
REAR WHEEL Axis Sport Disc
FRONT TIRE Specialized Espoir Sport Reflect, 700x30mm, 60 TPI, double BlackBelt protection
REAR TIRE Specialized Espoir Sport Reflect, 700x30mm, 60 TPI, double BlackBelt protection
INNER TUBES 700x28/38mm, 48mm Presta valve
DRIVETRAIN
FRONT DERAILLEUR Shimano Tiagra, braze-on
REAR DERAILLEUR Shimano Tiagra, long cage, 10-speed
SHIFT LEVERS Shimano Tiagra
CASSETTE Shimano Tiagra, 10-speed, 11-32t
CHAIN KMC X10, 10-speed w/ Missing Link™
CRANKSET Praxis Alba 2D
CHAINRINGS 48/32T
BRAKES
FRONT BRAKE Tektro Mira, flat mount, mechanical disc
REAR BRAKE Tektro Mira, flat mount, mechanical disc
ACCESSORIES
PEDALS Nylon, 105x78x28mm, loose balls w/ reflectors
* Specifications are subject to change without notice
Manual Downloads
2018 Rider/Bike Weight Limits and Terrain Conditions
Specialized Bicycle Owner's Manual (All Languages)
Trainer Usage Addendum to the Bicycle Owner's Manual
Specialized Bicycle Owner's Manual Addendum: Riding With Kids
Specialized Bicycle Owner's Manual (English)
Specialized Limited Warranty Policy for Bicycles

Diverge - Geometry

Geometry

44 48 52 54 56
  44 48 52 54 56
Crank Length 165mm 165mm 170mm 170mm 172.5mm
Stem Length 70mm 80mm 90mm 90mm 100mm
Seatpost Length 350mm 350mm 350mm 400mm 400mm
Saddle Width 155mm 155mm 155mm 155mm 155mm
Handlebar Width 360mm 380mm 400mm 400mm 420mm
Reach 357mm 365mm 372mm 378mm 384mm
Top Tube Length, Horizontal 516mm 524mm 532mm 549mm 561mm
Stack 553mm 554mm 560mm 577mm 598mm
Wheelbase 1000mm 1007mm 1007mm 1014mm 994mm
Chainstay Length 422mm 422mm 422mm 424mm 424mm
Front Center 587mm 593mm 598mm 600mm 604mm
BB Drop 85mm 85mm 85mm 85mm 85mm
BB Height 265mm 265mm 265mm 265mm 265mm
Seat Tube Angle 73.5° 73.5° 74° 74° 74°
Head Tube Angle 70.5° 70.8° 71° 71.9° 72.5°
Seat Tube Length 370mm 405mm 440mm 473mm 500mm
Head Tube Length 125mm 125mm 130mm 143mm 163mm
Bike Standover Height 691mm 712mm 734mm 761mm 783mm
Fork Rake/Offset 50mm 50mm 55mm 55mm 55mm
Fork Length, Full 390mm 390mm 390mm 390mm 390mm
Trail 58mm 62mm 62mm 64mm 66mm
Geometry Chart
