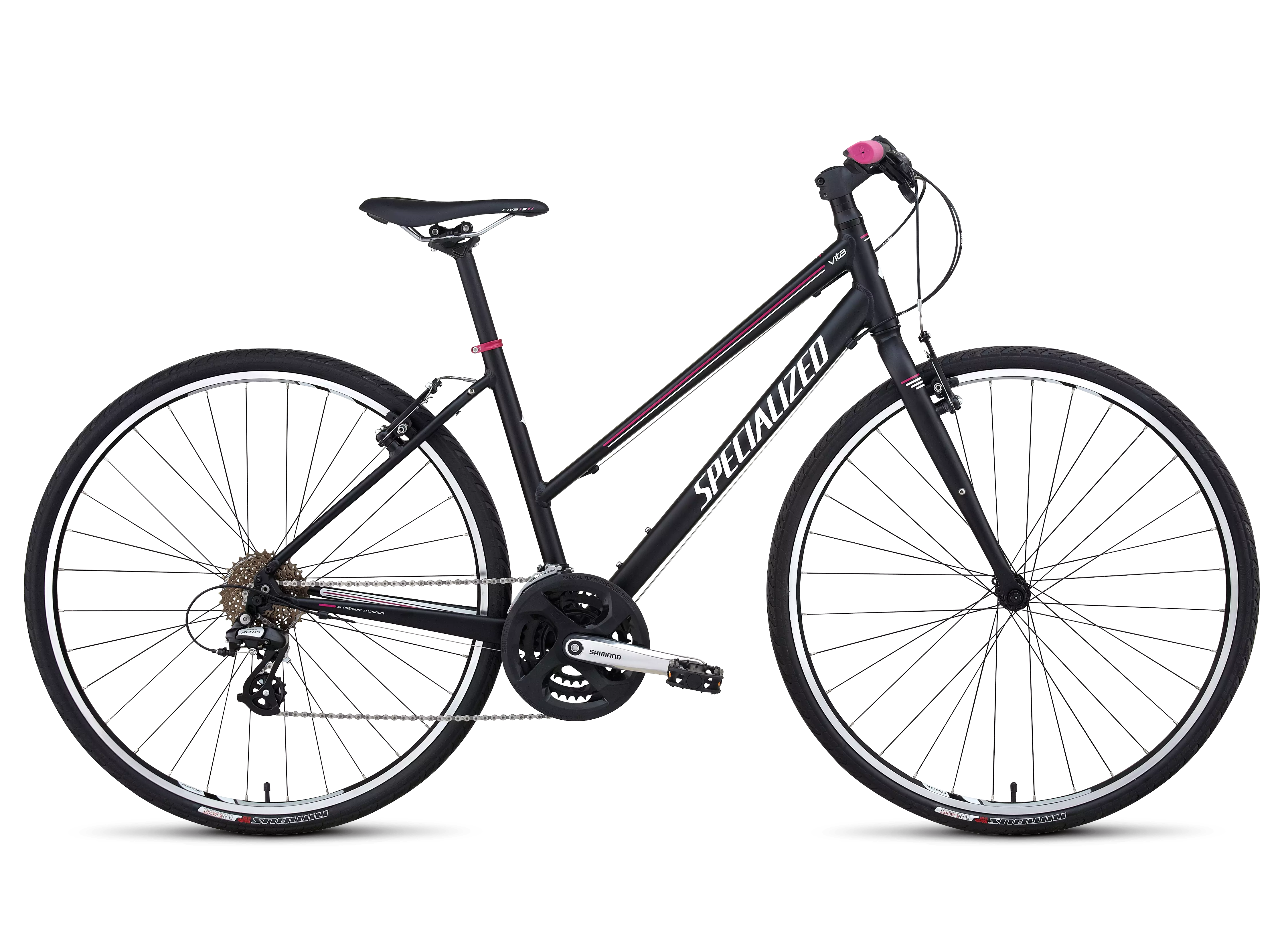

The Vita enjoys the pure speed of an A1 aluminum road bike with the comfort and confidence that comes from a step through frame designed to meet the unique needs of woman riders. The flat bar is perfect for exercising, commuting, or hitting the open road, and the 3x8 Shimano drivetrain means smooth, fast, and efficient performance.
  • Body Geometry Riva women's saddle features generous padding for all-day performance and comfort
  • Shimano Altus triple crankset plus 8-speed drivetrain for wide-range gearing and spot-on shifting, plus chainguard for peace of mind
  • Super light, women's A1 Premium Aluminum fully manipulated frame with fitness geometry and integrated headset, paired with straight blade steel fork offers a great ride and versatility with rack/fender mounts
  • Flak Jacket protection and a grooved tread make the Specialized Nimbus tires perfect for city or open road use
  • Double-wall, machined rims for strength and reliable braking, plus alloy, sealed cassette hub with stainless spokes
  • Women's Body Geometry Contour gel grips lock on and help alleviate hand pain and tingling fingers, while flat alloy handlebars add comfort and confidence to your ride

Technical Specifications

FRAMESET
SEAT BINDER Alloy clamp, 31.8mm
HEADSET 1-1/8"" FSA integrated cartridge lower, external sealed upper bearing
FORK Specialized Hi-Ten steel fork
FRAME Specialized A1 Premium Aluminum step-through, fully manipulated women's tubesets, women's fitness geometry, integrated lower bearing, fender/rack eyelets
WHEELS
FRONT HUB Double sealed, ground race, dual lock nuts w/ 17mm contact side, 5mm QR
REAR HUB Double-sealed, loose ball, dual-lock nuts
INNER TUBES Specialized Schrader valve
SPOKES Stainless 2.0mm
RIMS Alex alloy double-wall, CNC Sidewalls, 32 holes
FRONT TIRE Specialized Nimbus w/ Flak Jacket, 26TPI, 700x32c
REAR TIRE Specialized Nimbus w/ Flak Jacket, 26TPI, 700x32c
DRIVETRAIN
BOTTOM BRACKET Cartridge bearing, square spindle w/ crank stop right side, capless bolts
CHAIN KMC X-8, reusable Missing Link
CRANKSET Shimano FC-M131 triple, 8-speed, w/ chainguard
CASSETTE Shimano, 8-speed, 11-32
SHIFT LEVERS Shimano EF-51, EZ Fire
FRONT DERAILLEUR Shimano FDM-191, top-swing, dual-pull
CHAINRINGS 48/38/28, w/ chainguard
REAR DERAILLEUR Shimano Altus
COCKPIT
SADDLE BodyGeometry Women's Riva, steel rails, 155mm
TAPE BodyGeometry Women's Contour grip
SEATPOST Alloy, 2-bolt head, 27.2mm
HANDLEBARS Specialized alloy flat bar, 25.4mm, 6-degree backsweep
STEM Melt-forged alloy, 4-bolt, 20-degree rise, 25.4mm clamp
BRAKES
BRAKE LEVERS Shimano EF-51 2-finger, brake & shift Lever
FRONT BRAKE Die cast alloy, linear pull
REAR BRAKE Die cast alloy, linear pull
ACCESSORIES
PEDALS Nylon flat pedal

Geometry

Geometry Chart

Vita - Geometry

SM MD LG
  SM MD LG
Stem Length 75mm 90mm 100mm
Crank Length 170mm 170mm 170mm
Handle-Bar Width 580mm 580mm 580mm
Wheelbase 1052mm 1053mm 1057mm
Seat-Tube Length, B-B Center to Top 395mm 440mm 475mm
Head-Tube Length 130mm 150mm 165mm
Top-Tube Length, Horizontal 535mm 550mm 565mm
Front-Center 616mm 617mm 622mm
Head-Tube Angle 70° 71° 71°
Fork Rake 51mm 51mm 51mm
Trail 73mm 67mm 67mm
Stand-Over Height 619mm 628mm 628mm
Chain-Stay Length 445mm 445mm 445mm
Seat-Tube Angle 74.5° 74° 73°
B-B Drop 70mm 70mm 70mm
Seat-Post Length 300mm 350mm 350mm
