Vienna Deluxe 1
$660.00
Part No.

Vienna Deluxe 1

$660.00
Part No.  22564
load-spinner
Vienna Deluxe 1
Overview
Technical Specifications
Geometry
Reviews

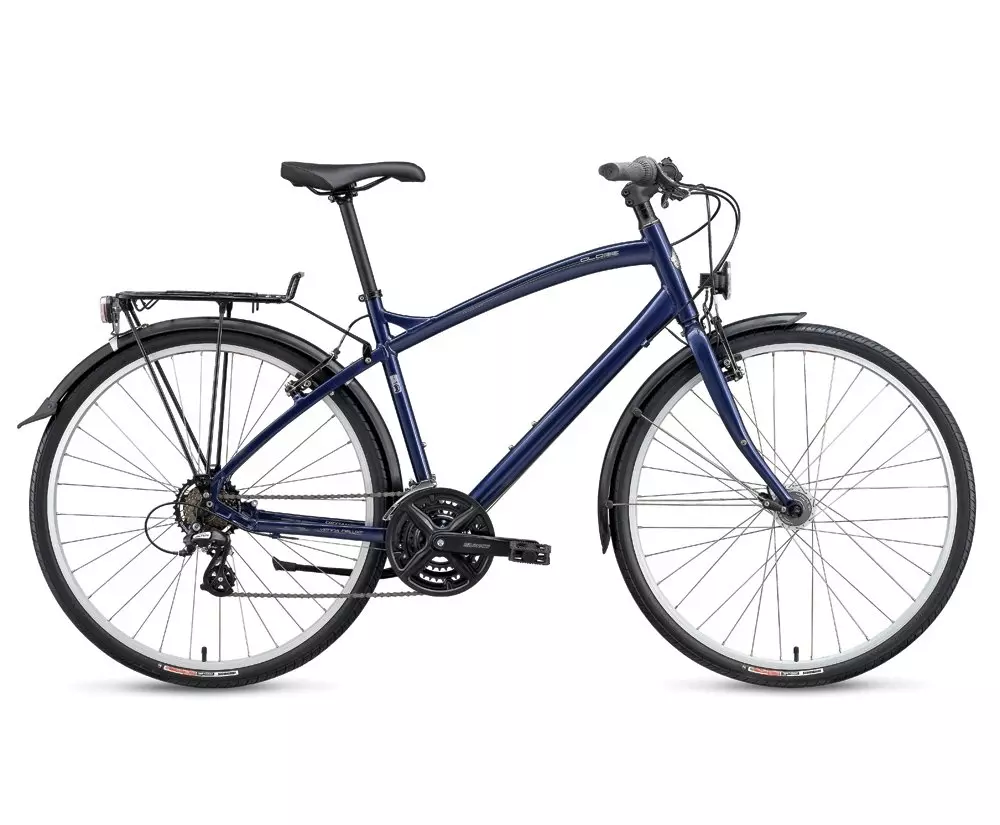

This anytime, anywhere, wet/dry trekking bike proves that two wheels are all you need, no matter the cargo. With all the bells and whistles attached—fenders, lights, racks, bells (yes, literally)—your ride doesn't have to stop at a simple commute.
  • The A1 Premium Aluminum trekking frame features ergonomic and stable geometry in an elegant, lightweight platform. Equipped with fenders and rack.
  • A Shimano dynamo front hub powers your lights with minimal added resistance.
  • Nimbus Sport 700x35c tires provide a well-cushioned ride with Flak Jacket anti-puncture protection.
  • The Globe saddle features our scientifically-proven Body Geometry design that relieves pressure on sensitive arteries.

Technical Specifications

FRAMESET
SEAT BINDER Specialized forged alloy
HEADSET Specialized 1 1/8"" threadless, semi integrated, Campy style
FRAME Globe A1 Premium Aluminum trekking design, fully manipulated tubing w/ fender and rack braze-ons
WHEELS
FRONT HUB Shimano HD-3N30-QR super low resistance dynamo hub, 32h
REAR HUB Specialized, sealed mech., ground races
INNER TUBES Globe schrader valve
SPOKES 1.8mm (15g) stainless
RIMS Alex Z-1000, 700c, single wall, alloy, 32h
FRONT TIRE Specialized Nimbus Sport, 700x38c, 60TPI, Flak Jacket
REAR TIRE Specialized Nimbus Sport, 700x38c, 60TPI, Flak Jacket
DRIVETRAIN
BOTTOM BRACKET FSA BB-7420, cartrdge bearings, 68mm x 122.5mm for 47.5mm chain line
CHAIN KMC Z-7, 7/8-speed, 1/2"" x 3/32""
CRANKSET SR SunTour XCC, square tapered w/ chainguard
CASSETTE Shimano 7-speed, 13/34T
SHIFT LEVERS Shimano Revo Twist shifter, 7-Speed
FRONT DERAILLEUR Shimano FD-C050, 31.8mm clamp
CHAINRINGS 48 x 36 x 26t w/ chainguard
REAR DERAILLEUR Shimano Altus, 7/8-Speed
COCKPIT
SADDLE Globe Wmn, Body Geometry, 155mm width, front and rear bumpers
SEATPOST Specialized alloy, no offset, two bolt head, 27.2mm
GRIPS Body Geometry Comfort , closed end, 92mm
HANDLEBARS Globe alloy flat bar, 25.4mm, 600mm wide, 27 degree back sweep
STEM Globe forged alloy, 15 degree rise
BRAKES
BRAKE LEVERS Shimano BL-42 for Revo shifter
FRONT BRAKE Alloy linear pull
REAR BRAKE Alloy linear pull
ACCESSORIES
PEDALS Globe, Body Geometry, anti-slip composite
SUSPENSION
FORK Globe Hi-Ten steerer and blades

Geometry

Geometry Chart

Vienna - Geometry

  45 49 53 57 61
Handle-Bar Width 620mm 620mm 620mm 620mm 620mm
Reach 0mm 0mm 0mm 0mm 0mm
Wheelbase 1089mm 1099mm 1109mm 1108mm 1129mm
Stack 0mm 0mm 0mm 0mm 0mm
Seat-Tube Length, B-B Center to Top 385mm 425mm 490mm 520mm 560mm
Head-Tube Length 150mm 170mm 190mm 210mm 230mm
Ground-Top 0mm 0mm 0mm 0mm 0mm
Top-Tube Length, Horizontal 550mm 565mm 580mm 595mm 635mm
Front-Center 642mm 657mm 667mm 666mm 687mm
Head-Tube Angle 69° 69° 69° 70° 71°
Fork Rake 51mm 51mm 51mm 51mm 51mm
Trail 82mm 82mm 82mm 75mm 68mm
Stand-Over Height 715mm 756mm 777mm 797mm 821mm
Chain-Stay Length 455mm 455mm 455mm 455mm 455mm
Seat-Tube Angle 76° 75.5° 74.5° 73.5° 72.5°
B-B Drop 65mm 65mm 65mm 65mm 65mm
