Vienna Deluxe 1 Women's
$660.00
Part No.

Vienna Deluxe 1 Women's

$660.00
Part No.  22563
load-spinner
Vienna Deluxe 1 Women's
Overview
Technical Specifications
Geometry
Reviews

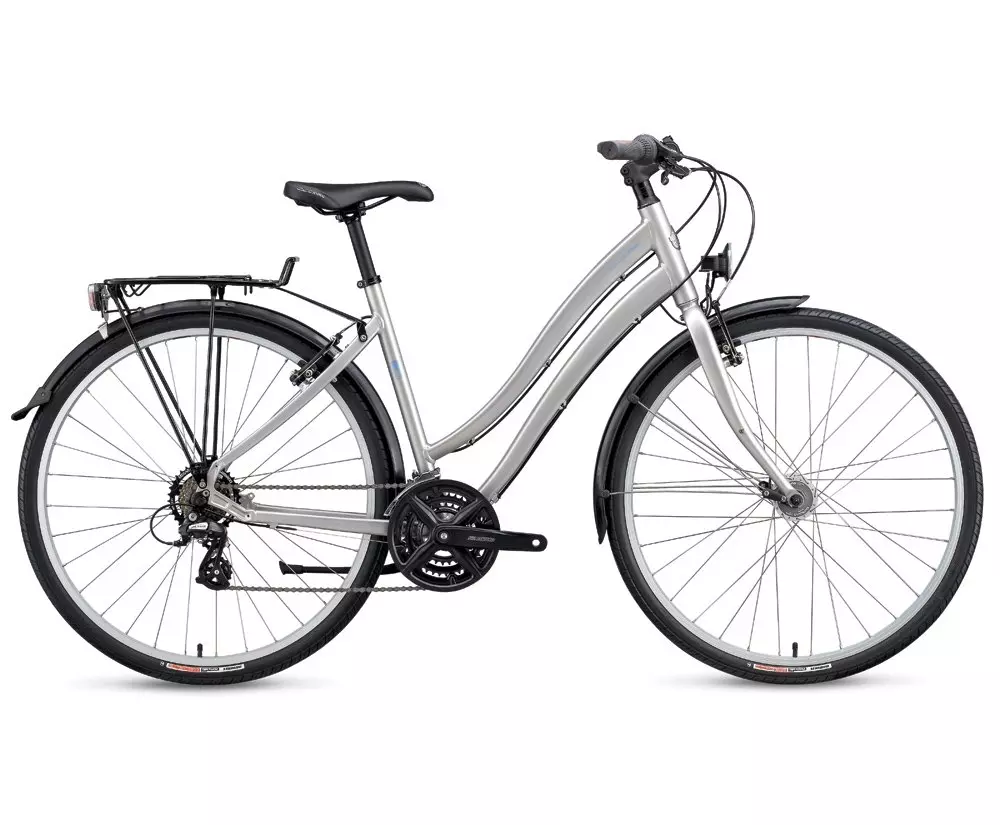

This anytime, anywhere, wet/dry trekking bike proves that two wheels are all you need, no matter the cargo. With all the bells and whistles attached—fenders, lights, racks, bells (yes, literally)—your ride doesn't have to stop at a simple commute.
  • The A1 Premium Aluminum trekking frame features ergonomic and stable geometry in an elegant, lightweight platform. Equipped with fenders and rack.
  • A Shimano dynamo front hub powers your lights with minimal added resistance.
  • Nimbus Sport 700x35c tires provide a well-cushioned ride and feature Flak Jacket anti-puncture protection.
  • The Globe saddle features our scientifically-proven Body Geometry design that relieves pressure on soft tissue.

Technical Specifications

FRAMESET
SEAT BINDER Specialized forged alloy
HEADSET Specialized 1 1/8"" threadless, integrated, Campy style
FRAME Globe A1 Premium Aluminum trekking design, fully manipulated tubing w/ fender and rack braze-ons
WHEELS
FRONT HUB Shimano HD-3N30-QR super low resistance dynamo hub, 32h
REAR HUB Specialized, sealed mech., ground races
INNER TUBES Globe schrader valve
SPOKES 1.8mm (15g) stainless
RIMS Specialized/Alex Z-1000, 700c, single wall, alloy, 32h
FRONT TIRE Specialized Nimbus Sport, 700x38c, 60TPI, Flak Jacket
REAR TIRE Specialized Nimbus Sport, 700x38c, 60TPI, Flak Jacket
DRIVETRAIN
BOTTOM BRACKET FSA BB-7420, cartrdge bearings, 68mm x 122.5mm for 47.5mm chain line
CHAIN KMC Z-7, 7/8-speed, 1/2"" x 3/32""
CRANKSET SR SunTour XCC, square tapered w/ chainguard
CASSETTE SunTour 7-speed, 13/34T
SHIFT LEVERS Shimano Revo Twist shifter, 7-Speed
FRONT DERAILLEUR Shimano FD-C050, 31.8mm clamp
CHAINRINGS 48 x 36 x 26t w/ chainguard
REAR DERAILLEUR Shimano Altus, 7/8-Speed
COCKPIT
SADDLE Globe Wmn, Body Geometry, 155mm width, front and rear bumpers
SEATPOST Specialized alloy, no offset, two bolt head, 27.2mm
GRIPS Men's Body Geometry Comfort, closed end, 92mm
HANDLEBARS Globe alloy flat bar, 25.4mm, 600mm wide, 27 degree back sweep
STEM Globe forged alloy, 15 degree rise
BRAKES
BRAKE LEVERS Shimano BL-42 for Revo shifter
FRONT BRAKE Alloy linear pull
REAR BRAKE Alloy linear pull
ACCESSORIES
PEDALS Globe, Body Geometry, anti-slip composite
SUSPENSION
FORK Globe Hi-Ten steerer and blades

Geometry

Geometry Chart

Vienna - Geometry

  45W 49W 53W 57W
Handle-Bar Width 350mm 350mm 350mm 350mm
Reach 545mm 555mm 570mm 585mm
Wheelbase 600mm 600mm 600mm 600mm
Stack 420mm 450mm 490mm 520mm
Seat-Tube Length, B-B Center to Top 450mm 450mm 450mm 450mm
Head-Tube Length 170mm 170mm 175mm 175mm
Ground-Top 65mm 65mm 65mm 65mm
Top-Tube Length, Horizontal 76mm 75mm 74mm 73mm
Front-Center 160mm 170mm 190mm 210mm
Head-Tube Angle 637° 643° 652° 651°
Fork Rake 1079mm 1085mm 1094mm 1093mm
Trail 616mm 594mm 586mm 569mm
Stand-Over Height 75mm 75mm 90mm 90mm
Chain-Stay Length 51mm 51mm 51mm 51mm
Seat-Tube Angle 82° 82° 82° 75°
B-B Drop 69mm 69mm 69mm 70mm
