Venge Frameset
$2,000.00
Part No.

Venge Frameset

$2,000.00
Part No.  106854
load-spinner
Venge Frameset
Overview
Technical Specifications
Geometry
Reviews

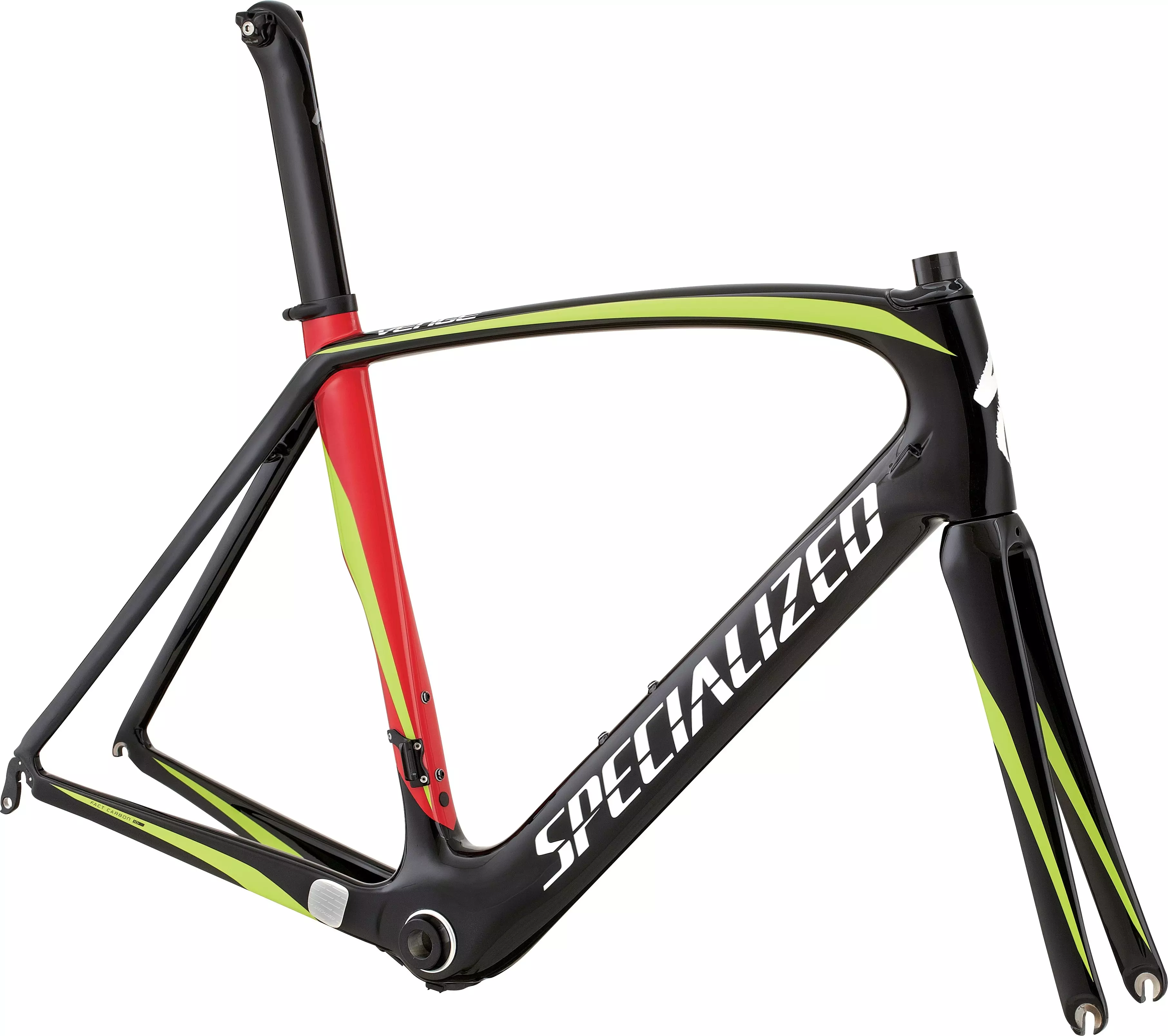

With wind-tunnel-designed aero-shaped tubing, along with a FACT 10r carbon construction that ensures lightweight, responsive performance, the Venge frameset is the perfect canvas to start assembling your next aero assault weapon.
  • The full monocoque FACT carbon fork is wind-tunnel-optimized, and provides the stiffness and steering response needed for hard out of the saddle efforts.
  • FACT 10r carbon frame provides the ideal blend of light overall weight, stiffness, and responsiveness. And with aero-optimized tubing, a compact race design, and a tapered head tube, the frame is effectively optimized for aero performance.

Technical Specifications

FRAMESET
SEAT BINDER Specialized Venge assembly
HEADSET 1-1/8"" upper, 1-3/8"" lower, stainless steel cartridge bearings, w/ custom 15mm Venge top cap
FORK Specialized FACT carbon, full monocoque
FRAME Specialized FACT 10r carbon, FACT IS construction, aero-shaped tubing, compact race design, tapered 1-1/8"" to 1-3/8"" head tube, internal cable routing, carbon OSBB
DRIVETRAIN
BOTTOM BRACKET Hope, BB30
COCKPIT
SEATPOST Specialized Venge, FACT carbon, flippable 20/0mm offset

Geometry

Geometry Chart

Venge - Geometry

  49 52 54 56 58 61
Stem Length 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Seatpost Length 300mm 300mm 300mm 350mm 350mm 350mm
Handlebar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 385mm 385mm 386mm 395mm 401mm 407mm
Stack 504mm 526mm 543mm 564mm 591mm 612mm
Wheelbase 969mm 970mm 977mm 986mm 1002mm 1012mm
Bike Stand-Over Height 741mm 766mm 789mm 809mm 834mm 860mm
Head-Tube Length 100mm 120mm 140mm 160mm 190mm 210mm
Front-Center 575mm 575mm 582mm 591mm 605mm 612mm
Fork Rake/Offset 45mm 45mm 45mm 43mm 43mm 43mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Trail 62mm 57mm 57mm 56mm 56mm 53mm
B-B Height 270mm 270mm 272.5mm 272.5mm 274mm 274mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Fork Length (full) 368mm 368mm 368mm 368mm 368mm 368mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 72mm 72mm 69mm 69mm 68mm 68mm
Seat-Tube Length 467mm 487mm 507mm 527mm 547mm 577mm
Top-Tube Length (horizontal) 515mm 536mm 547mm 565mm 582mm 600mm
