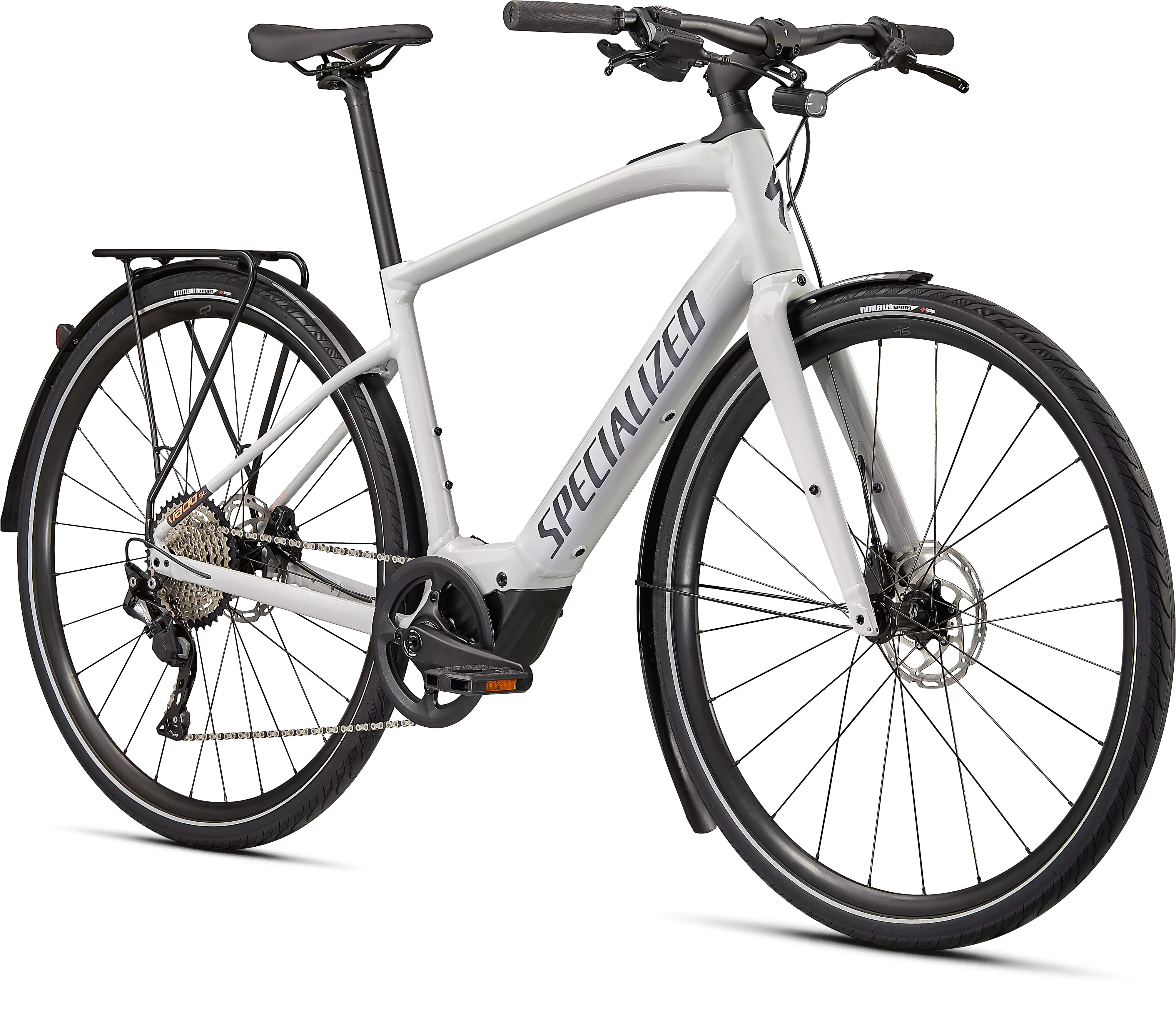

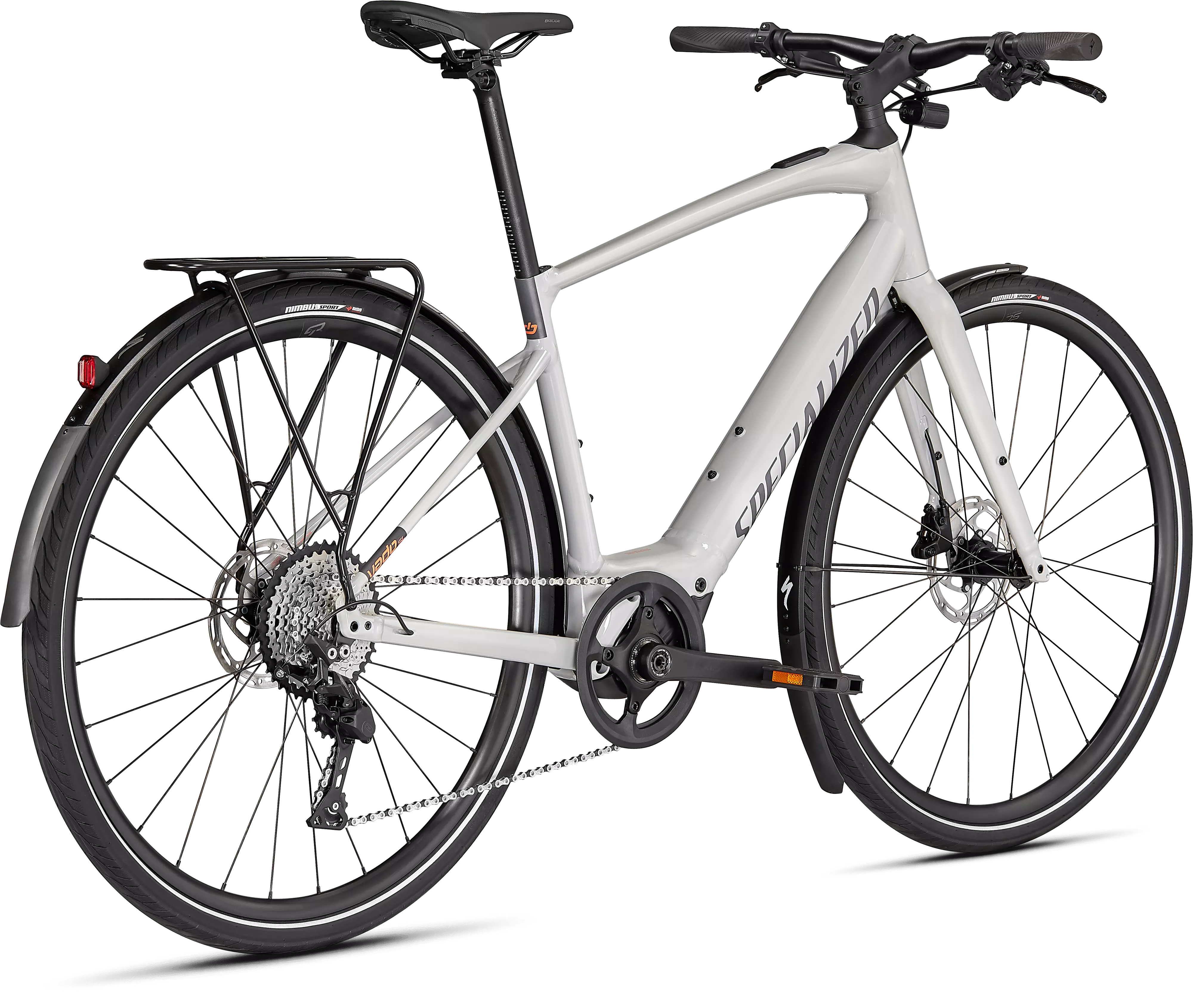

2021 Vado SL 4.0 EQ

4.8

13 Reviews

There’s no other e-bike out there with ride quality, range, and power like this,…

Product Details

Add Icon

There’s no other e-bike out there with ride quality, range, and power like this, at a weight that’s light enough to carry. The Turbo Vado SL 4.0 EQ is best for your daily commute, quick errands and getting around town. Extra-bright, built-in lights in front and back mean you’ll see and be seen. DRYTECH fenders keep water and road spray away, and a standard rear rack is always ready for your bags and panniers. This is your go-to for local transportation.

  • Fully integrated and secure Specialized 320Wh downtube battery w/optional Range Extender compatibility for up to 120 miles of range.
  • Specialized SL 1.1 custom lightweight motor, peak 240W / 35Nm, 2x you rider amplification (180% assistance), assist up to 28mph.
  • Turbo SL mounted rear rack, Racktime-compatible for your favorite bags and panniers, and DRYTECH fenders to keep the spray away.
  • Premium lightweight E5 Aluminum frame.
  • Clean internal cable routing, fender/rack mounts, and reflective graphics.
  • Premium hydraulic disc brakes for maximum stopping power.
  • Bright, integrated front and rear lighting to see and be seen.
  • 10-speed Shimano Deore shifting for reliable performance for the long haul.
  • Durable, lightweight alloy wheels paired with fast-rolling, high-grip, Nimbus II Sport Reflect 700 tires with BlackBelt flat protection and reflective accents to increase visibility.

Technical Specifications

Add Icon

COCKPIT

Saddle

Bridge Sport, Steel rails, 155mm

SeatPost

Specialized, alloy, dual-bolt, 25mm offset, 27.2mm

Stem

Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount

Tape

Specialized Body Geometry Contour, lock-on

Handlebars

Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm

DRIVETRAIN

Rear Derailleur

Shimano Deore, Shadow Plus, GS cage, 10-speed

Shift Levers

Shimano Deore, RapidFire Plus, 10-speed w/ Optical Gear Display

Cassette

Shimano Deore, 10spd, 11-42t

Chain

KMC e10S, 10-speed w/ Missing Link™

Crankset

Praxis, Forged alloy M30, custom offset

Chainrings

Praxis, 44T, 104BCD

WHEELS

Rims

700C disc, 22mm rim depth, 21mm internal width

Front Hub

Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h

Rear Hub

Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h

Spokes

DT Swiss Industry

Front Tire

Nimbus II Sport Reflect, 700x38mm

Rear Tire

Nimbus II Sport Reflect, 700x38mm

E-BIKE

Motor

Specialized SL 1.1, custom lightweight motor

UI/Remote

Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote

Battery

Specialized SL1-320, fully integrated, 320Wh

Charger

Custom charger, 48V System w/ SL system charger plug

Wiring Harness

Custom Specialized wiring harness w/ chargeport

ACCESSORIES

Headlight

Lezyne Ebike Hecto STVZO E65, 210Lumens, 12V

Taillight

Lezyne Ebike Rear Fender STVZO, 11Lumens, 12V

Kickstand

Specialized kickstand, 40mm mount

Rack

Turbo SL Rack, Closed Platform, direct fender mount, Racktime-compatible, 15kg

Fenders

Specialized DryTech, Aluminum

Bell

Simple bell

Pedals

Specialized Commuter w/ grip tape & reflectors

FRAMESET

Fork

Rigid full aluminum disc, Boost™ 12x110mm, front- rack-compatible

Seat Binder

Integrated w/ frame

BRAKES

Rear Brake

Tektro HD-R290, hydraulic disc, 160mm

Front Brake

Tektro HD-R290, hydraulic disc, 160mm

WHEELS & TIRES

Inner Tubes

Standard 40mm PV 700x32-50

Accessories

SWAT

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SMLXL
Crank Length170mm172.5mm172.5mm175mm
Seatpost Length350mm350mm350mm350mm
Handlebar Width680mm680mm680mm680mm
Stem Length60mm75mm75mm90mm
Saddle Width155mm155mm155mm155mm
Stack595mm626mm660mm696mm
Reach378mm401mm415mm424mm
Head-Tube Length185mm217mm250mm285mm
Head-Tube Angle70°70.5°71°71.5°
B-B Height270mm270mm270mm270mm
B-B Drop70mm70mm70mm70mm
Trail71mm67mm64mm61mm
Fork Length (full)390mm390mm390mm390mm
Fork Rake/Offset50mm50mm50mm50mm
Front-Center626mm655mm675mm690mm
Chain-Stay Length445mm445mm445mm445mm
Wheelbase1062mm1091mm1110mm1126mm
Top-Tube Length (horizontal)554mm587mm610mm630mm
Bike Stand-Over Height770mm790mm815mm840mm
Seat-Tube Length415mm446.5mm494.5mm535mm
Seat-Tube Angle73.5°73.5°73.5°73.5°
