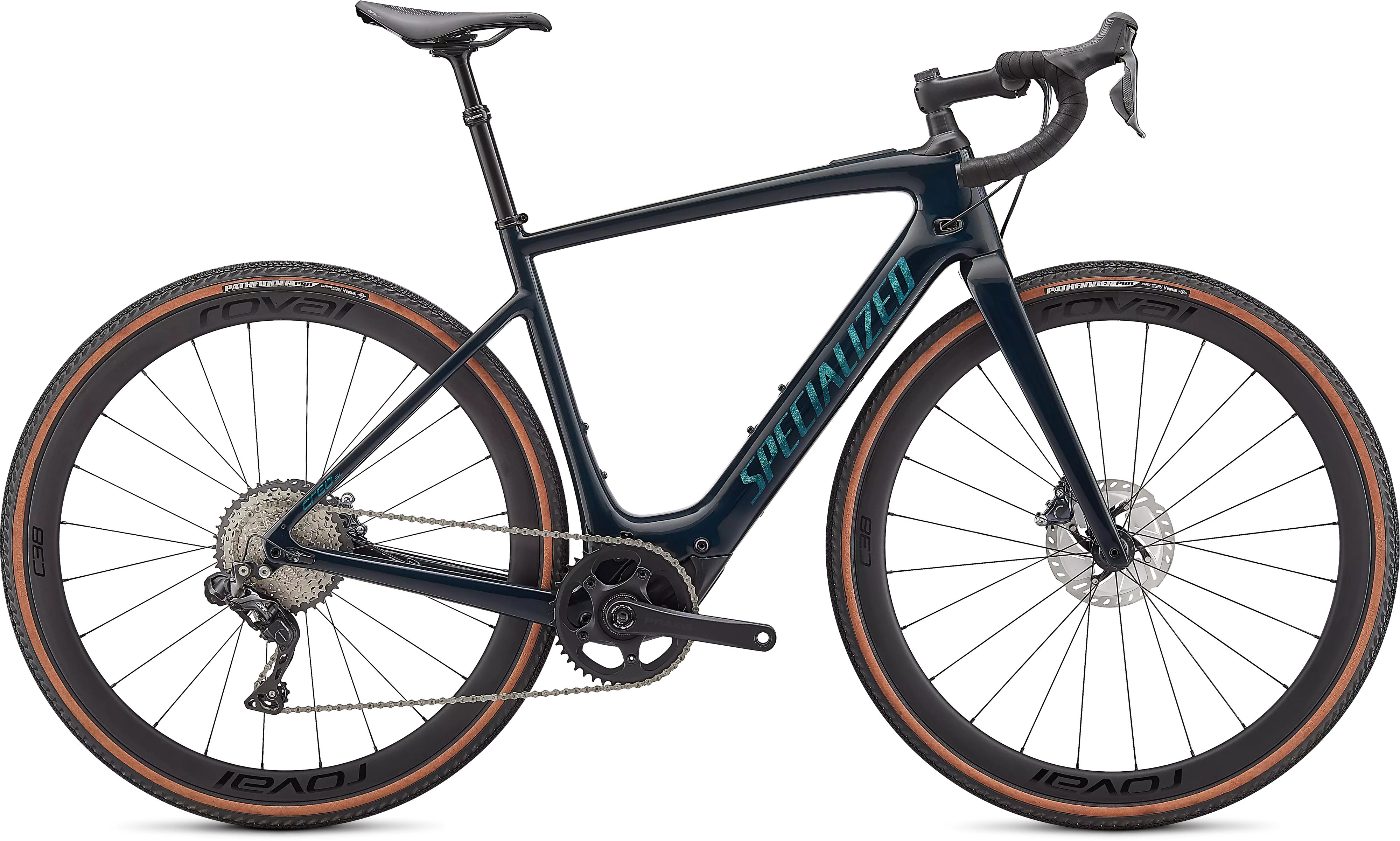

Turbo Creo SL Expert EVO

What is it about gravel that's so appealing? Is it the break from hectic city streets and cars? Is it the audible crunch of rocks beneath your tires? Or maybe it's just the feeling of adventure? Whatever it is, the Turbo Creo SL EVO is here to assist you further into the forest, down the gravel road, or on your next adventure. It features the same motor, battery, and frame as its road-oriented cousin, but takes advantage of tire clearance and adds in some adventure-ready components to take you wherever your heart desires. It's you, only faster.

The Turbo Creo SL Expert EVO features out Fact 11r carbon chassis. Yes, that's the same one on the S-Works model, and you'll also get the new Future Shock 2.0. For the spec, we included a 1x Shimano Ultegra Di2 build with an XT rear derailleur and an 11-42t cassette to take on shifting and braking duties, while Roval C 38 Disc carbon wheels get wrapped in 38mm Pathfinder Pro 2Bliss Ready tires to keep you rolling worry-free and super fast, no matter the terrain. And filling out the build are our Adventure Gear bars with 12 degrees of flare, a Future Stem Pro, an X-Fusion 50mm Manic Dropper seatpost, and our fan-favorite Body Geometry Power Expert saddle.

Technical Specifications

ACCESSORIES

SWAT

Fender Clamp Adaptor

E-BIKE

Motor

Specialized SL 1.1, custom lightweight motor

UI/Remote

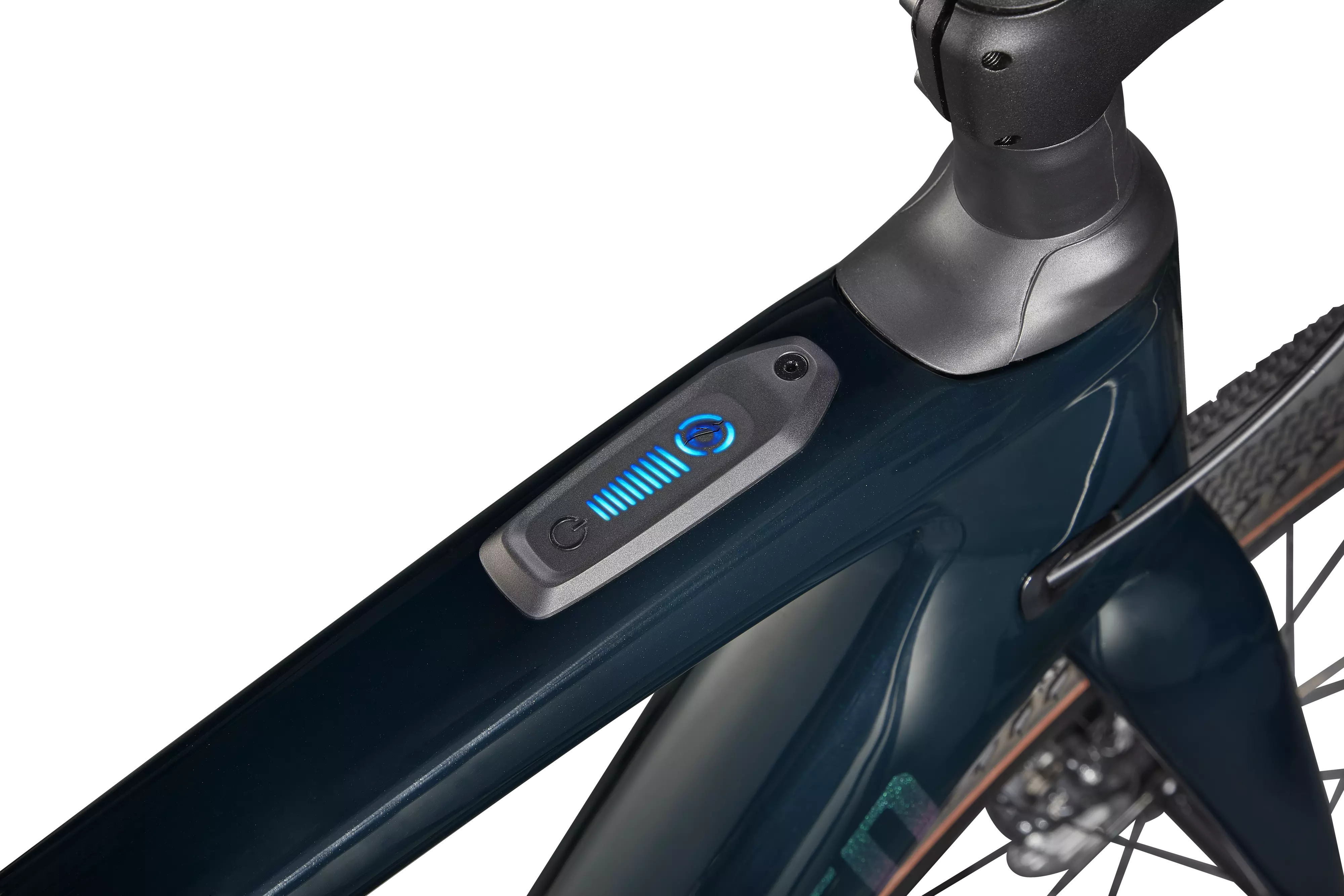

Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®

Battery

Specialized SL1-320, fully integrated, 320Wh

Charger

Custom charger, 48V System w/ SL system charger plug

Wiring Harness

Custom Specialized wiring harness w/ chargeport

DRIVETRAIN

Rear Derailleur

Shimano Deore XT Di2, Shadow Plus, 11-speed

Shift Levers

Shimano Ultegra Di2 Disc R8070

Cassette

Shimano XT, 11-speed, 11-42t

Chain

Shimano Ultegra, 11-speed

Crankset

Praxis Forged/M30 Spindle Interface

Chainrings

44T

BRAKES

Front Brake

Shimano Ultegra R8070 hydraulic disc

Rear Brake

Shimano Ultegra R8070 hydraulic disc

COCKPIT

Handlebars

Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare

Saddle

Body Geometry Power Expert

Stem

Future Stem, Pro

Tape

Supacaz Super Sticky Kush

SeatPost

X-Fusion Manic Dropper, 50mm travel

WHEELS

Front Wheel

Roval C 38 Disc, carbon, tubeless-ready, 38mm depth, 24h

Rear Wheel

Roval C 38 Disc, carbon, tubeless-ready, 38mm depth, 24h

FRAMESET

Frame

FACT 11r carbon, Open Road Geometry, front/rear thru-axles, fully integrated down tube battery, internal cable routing, fender/rack mounts, Boost™ 12x148mm

Fork

Future Shock 2.0 w/ Smooth Boot, Boost™ 12x110mm thru-axle, flat-mount disc

Seat Binder

Specialized Alloy, 30.8mm

WHEELS & TIRES

Rear Tire

Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c

Front Tire

Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c

Inner Tubes

Presta valve, 48mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L	XL	XXL
Crank Length	165mm	170mm	172.5mm	172.5mm	175mm	175mm
Handlebar Width	380mm	400mm	420mm	420mm	440mm	440mm
Stem Length	80mm	90mm	100mm	100mm	110mm	110mm
Seatpost Length	315mm	315mm	350mm	380mm	380mm	380mm
Saddle Width	155mm	155mm	143mm	143mm	143mm	143mm
Stack	573mm	575mm	592mm	615mm	643mm	675mm
Reach	363mm	373mm	379mm	384mm	391mm	399mm
Head-Tube Length	145.5mm	145.5mm	163.5mm	185.5mm	217mm	250mm
Head-Tube Angle	71.5°	72°	72.5°	73°	73°	73°
B-B Height	264.5mm	264.5mm	267mm	267mm	269.5mm	269.5mm
B-B Drop	80.5mm	80.5mm	78mm	78mm	75.5mm	75.5mm
Trail	68mm	60mm	56mm	53mm	53mm	52mm
Fork Length (full)	390mm	390mm	390mm	390mm	390mm	390mm
Fork Rake/Offset	50mm	50mm	50mm	50mm	50mm	50mm
Front-Center	586mm	592mm	598mm	605mm	621mm	636mm
Chain-Stay Length	426mm	426mm	426mm	427mm	427mm	428mm
Wheelbase	999mm	1005mm	1012mm	1020mm	1036mm	1052mm
Top-Tube Length (horizontal)	527mm	539mm	548mm	566mm	581mm	605mm
Bike Stand-Over Height	728mm	731mm	759mm	782mm	810mm	840mm
Seat-Tube Length	415mm	447.5mm	477.5mm	502.5mm	527.5mm	557.5mm
Seat-Tube Angle	74°	74°	74°	73.5°	73.5°	73°
