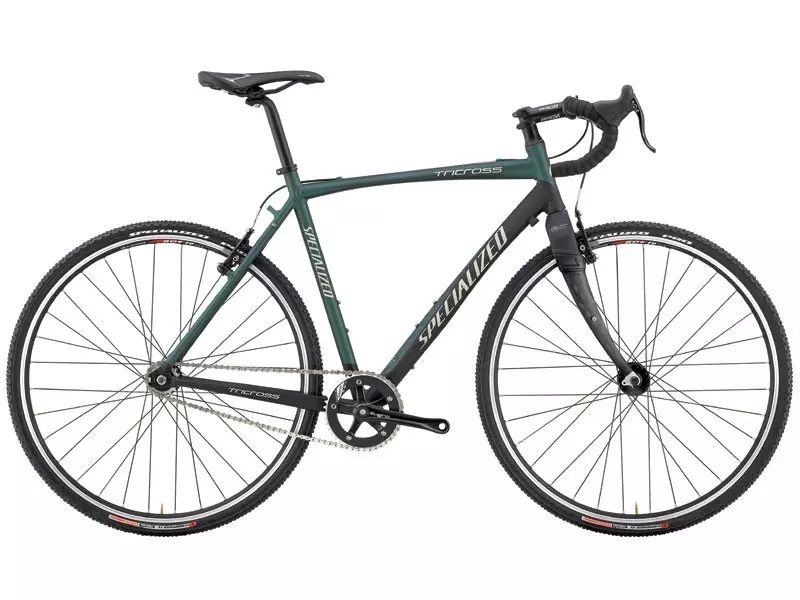

Tricross Singlecross
Part No.

Tricross Singlecross

Part No.
load-spinner
Tricross Singlecross
Overview
Technical Specifications
Geometry
Reviews
FREEROAD ROAM A road style frame and tires with traction for on- and off-road action leave you free to roam wherever you please. Cyclo-cross, adventure racing, long-haul tours, commuting or any place pavement meets dirt.

Inside Tech Durability is the ticket when you're mixing terrain. Luckily, the Tricross (expert and comp level) is equipped with bomb-proof Pavé™ wheels that allow shorter spokes for more stiffness and strength. Combined with sealed cartridge bearings on both hubs and durable DT Swiss spokes with brass nipples, these wheels are long-haul capable and freeroad lovin'.

Useful Links Manuals/Tech Bulletins

  • Specialized A1 Premium Aluminum, fully manipulated tubing, semi-compact Freeroad design, integrated headset, rack and fender fittings, horizontal dropouts with steel protectors
  • Forged linear pull brakes w/ cartridge pads
  • Specialized FACT carbon Tricross fork, carbon legs, aluminum steerer, SpeedZertz inserts, full rack and fender mounts
  • Shimano 18t freewheel
  • Forged Linear-Pull brakes w/ cartridge pads
  • Shimano 18T freewheel
  • Specialized Houffalize Sport CX, 700x32c, wire bead, 60TPI
  • 42T
  • Alex ACE-19, double wall rim, machined sidewalls w/ eyelets
  • Specialized Houffalize Sport CX, 700x32C, wire bead, 60TPI

Technical Specifications

DRIVETRAIN
CHAIN KMC Z-510-HX 1-speed chain
BOTTOM BRACKET Sport cartridge, square taper, 68 x 103mm
CRANKSET Sugino Comp forged alloy
CHAINRINGS 42T CNC Zen Messenger
WHEELS
FRONT HUB Specialized forged alloy, 32 hole, double sealed bearings, QR
REAR HUB Specialized forged alloy, 32 hole, double sealed bearings, bolt-on
SPOKES Stainless 14g
FRONT TIRE Specialized Houffalize Sport CX, 700x32c, wire bead, 60TPI
RIMS Alex ACE-19, double wall rim, machined sidewalls w/ eyelets
REAR TIRE Specialized Houffalize Sport CX, 700x32c, wire bead, 60TPI
COCKPIT
SADDLE Specialized Comp Road, full padding
STEM Specialized Sport, 3D forged alloy, 31.8mm split clamp, 7 degree
HANDLEBARS Specialized Comp, racing drop, 31.8
BRAKES
FRONT BRAKE Forged linear pull brakes w/ cartridge pads
BRAKE LEVERS Aero brake levers for linear pull brakes
REAR BRAKE Forged linear pull brakes w/ cartridge pads
ACCESSORIES
PEDALS Composite body, alloy cage w/ toe clips and straps
FRAMESET
HEADSET Specialized Mindset Plus, 1 1/8"" integrated threadless, cartridge sealed bearings, alloy 20mm cone w/ one 10mm and two 5mm alloy spacers
SEAT BINDER Specialized CNC, alloy, 31.8mm clamp
FORK Specialized FACT carbon Tricross fork, carbon legs, aluminum steerer, SpeedZertz inserts, full rack and fender mounts
FRAME Specialized A1 Premium Aluminum, fully manipulated tubing, semi-compact Freeroad design, integrated headset, rack and fender fittings, horizontal dropouts with steel protectors

Geometry

Geometry Chart

- Geometry

  49 52 54 56 58 61
Handle-Bar Width 300mm 350mm 350mm 350mm 350mm 350mm
Reach 515mm 530mm 545mm 560mm 575mm 595mm
Stack 490mm 520mm 540mm 560mm 580mm 610mm
Wheelbase 400mm 420mm 420mm 440mm 440mm 440mm
Seat-Tube Length, B-B Center to Top 440mm 440mm 440mm 440mm 440mm 440mm
Head-Tube Length 170mm 170mm 172.5mm 175mm 175mm 175mm
Ground-Top 71mm 71mm 69mm 69mm 67mm 67mm
Top-Tube Length, Horizontal 74.5mm 75.5mm 73.5mm 73mm 72.5mm 72mm
Front-Center 110mm 125mm 140mm 155mm 170mm 195mm
Head-Tube Angle 598° 599° 600° 601° 607° 616°
Stand-Over Height 75mm 90mm 100mm 110mm 110mm 120mm
Fork Rake 1028mm 1029mm 1030mm 1032mm 1038mm 1047mm
Trail 748mm 770mm 787mm 805mm 823mm 849mm
Chain-Stay Length 51mm 51mm 51mm 47mm 47mm 47mm
Seat-Tube Angle 68° 73° 63° 64° 58° 61°
B-B Drop 70.75mm 70mm 71.5mm 72mm 72.5mm 73mm
