Transition Pro

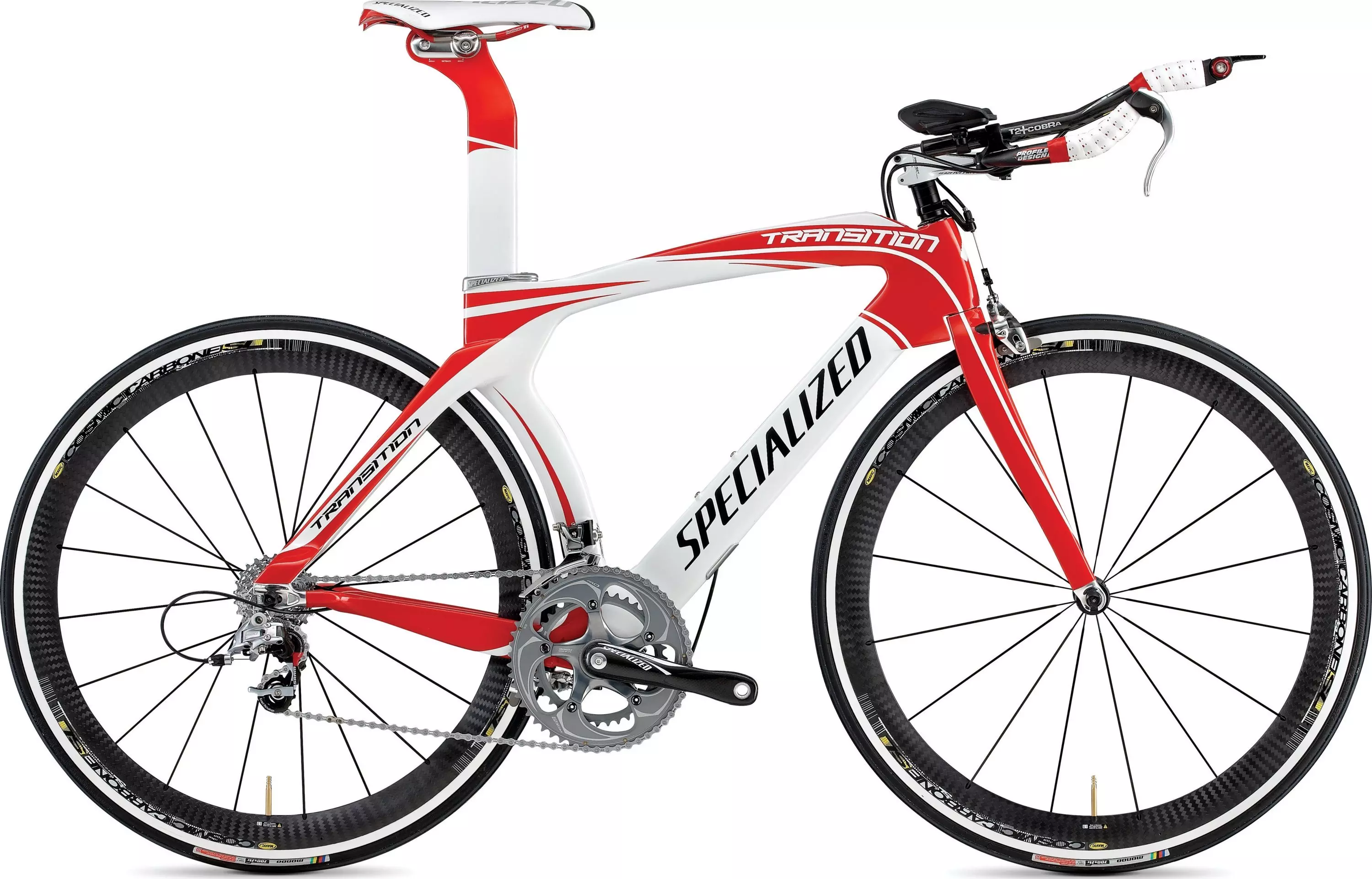

2010 Transition Pro
Technical Specifications
FRAMESET
FRAME
Specialized Transition FACT 7r N'Aero tube shaping, triple monocoque construction, compact aero geometry, vertical seat adjustment, OS BB
FORK
Transition FACT N'Aero carbon, monocoque construction, 1"" steerer
HEADSET
1"" Ahead set, 30mm carbon spacers (2x10mm, 2x5mm), no top cap
SEAT BINDER
Transition Seat Clamp
WHEELS
FRONT WHEEL
Mavic Cosmic Carbone SL
REAR WHEEL
Mavic Cosmic Carbone SL
FRONT TIRE
S-Works Mondo, 700x21c, 127TPI
REAR TIRE
S-Works Mondo, 700x21c, 127TPI
INNER TUBES
Standard presta valve
DRIVETRAIN
REAR DERAILLEUR
SRAM RED
FRONT DERAILLEUR
SRAM Force
SHIFT LEVERS
SRAM SL TT lever
CASSETTE
SRAM 10-speed, 12-27t
CHAIN
KMC X10 CP
CRANKSET
Specialized Pro Crankset 53x39
CHAINRINGS
53 x 39T
BOTTOM BRACKET
With Crankset
COCKPIT
STEM
Specialized ProSet, 3D forged alloy, 4-position adjustable
HANDLEBARS
Profile T2+ Aerobar
TAPE
Specialized Pro D2
SADDLE
Body Geometry TriTip 50 w/ hollow Ti rails
SEATPOST
Transition Aero Seatpost
BRAKES
FRONT BRAKE
Specialized Aero Brake
REAR BRAKE
Specialized Aero Brake
BRAKE LEVERS
Aero lever
ACCESSORIES
PEDALS
Silver cage/black body, w/ black toe clips and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | SM | MD | LG | XL | XXL | |
|---|---|---|---|---|---|---|
| Head-Tube Length | 90mm | 100mm | 110mm | 120mm | 135mm | 150mm |
| BB to top of Head-Tube, Horizontal (Reach) | 365mm | 380mm | 395mm | 405mm | 421mm | 450mm |
| Seat-Post Length | 450mm | 450mm | 450mm | 450mm | 450mm | 450mm |
| Head-Tube Angle | 69.5° | 71.5° | 72° | 72° | 72.5° | 72.5° |
| Chain-Stay Length | 395mm | 395mm | 395mm | 395mm | 395mm | 395mm |
| Front-Center | 577mm | 575mm | 589mm | 602mm | 621mm | 652mm |
| Handle-Bar Width | 400mm | 400mm | 400mm | 420mm | 420mm | 420mm |
| Stand-Over Height | 719mm | 761mm | 763mm | 768mm | 793mm | 807mm |
| Seat-Tube Length, B-B Center to Top | 445mm | 445mm | 445mm | 445mm | 475mm | 495mm |
| Fork Rake | 49mm | 43mm | 43mm | 43mm | 43mm | 43mm |
| BB to top of Head-Tube, Vertical (Stack) | 487mm | 505mm | 516mm | 526mm | 542mm | 554mm |
| B-B Drop | 72mm | 72mm | 72mm | 72mm | 72mm | 72mm |
| Trail | 74mm | 68mm | 65mm | 65mm | 61mm | 61mm |
| Wheelbase | 961mm | 961mm | 975mm | 988mm | 1007mm | 1036mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 177.5mm |
| Stem Length | 75mm | 90mm | 100mm | 110mm | 120mm | 120mm |
