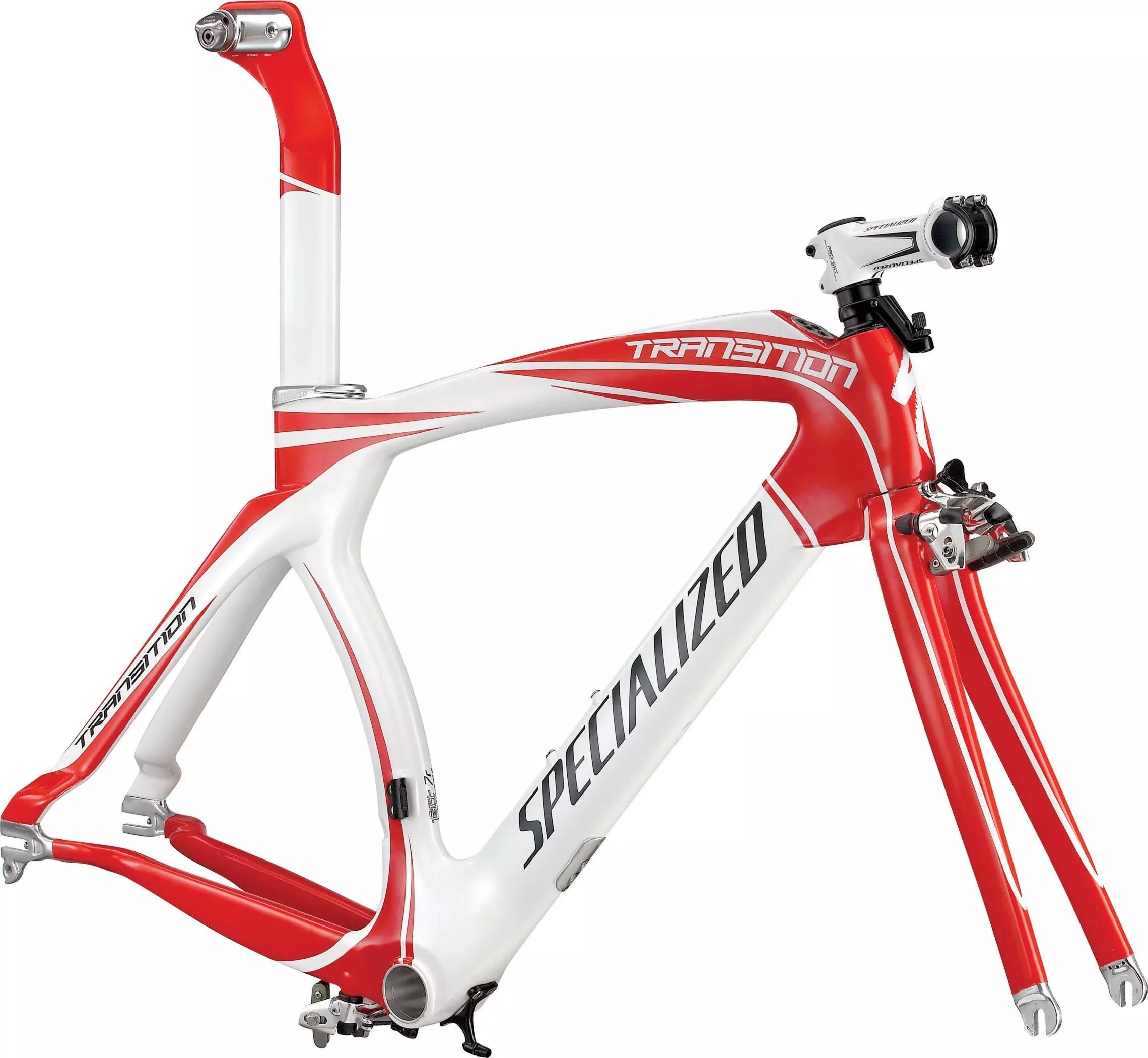

Transition Pro Frameset
Part No.

Transition Pro Frameset

Part No.
Transition Pro Frameset
Technical Specifications
The bike that carried Saxo Bank's Fabian Cancellara to a prologue win at the Tour of California is none other than the wind tunnel engineered Transition®. The competitive leader in aerodynamics and stiffness, the Transition gets its Autobahn speed from proprietary features like an incredibly slippery Specialized FACT carbon chassis (aluminum version also available), completely integrated brakes, and a two-position Transition carbon seatpost.
  • Aerodynamic FACT carbon monocoque fork hides from the wind for precision steering
  • Blazing fast and featherlight, the Transition Pro features a FACT cabon monocoque frame for wind-slicing performance and power
  • 1" Aheadset with carbon spacers for Pro-level performance and stability in the high-stress fork/frame junction
  • Transition aero carbon seatpost with micro-adjust head and internal vibration-damping Zertz is high strength without the uncomfortable ride
  • Specialized integrated aero brakes use a center-pull front brake and hidden rear break to reduce drag

Technical Specifications

SEATPOST Transition Aero Seatpost
STEM Specialized ProSet, 3D forged alloy, 4-position adjustable
FRONT BRAKE Specialized Aero Brake
REAR BRAKE Specialized Aero Brake
HEADSET 1"" Ahead set, 30mm carbon spacers (2x10mm, 2x5mm), no top cap
SEAT BINDER Transition Seat Clamp
FORK Transition FACT N'Aero carbon, monocoque construction, 1"" steerer
FRAME Specialized Transition FACT 7r N'Aero tube shaping, triple monocoque construction, compact aero geometry, vertical seat adjustment


Geometry Chart

- Geometry

Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 177.5mm
Stem Length 75mm 90mm 100mm 110mm 120mm 120mm
Handle-Bar Width 400mm 400mm 400mm 420mm 420mm 420mm
Wheelbase 961mm 961mm 975mm 988mm 1007mm 1036mm
Seat-Tube Length, B-B Center to Top 445mm 445mm 445mm 445mm 475mm 495mm
BB to top of Head-Tube, Horizontal (Reach) 365mm 380mm 395mm 405mm 421mm 450mm
Head-Tube Length 90mm 100mm 110mm 120mm 135mm 150mm
BB to top of Head-Tube, Vertical (Stack) 487mm 505mm 516mm 526mm 542mm 554mm
Front-Center 577mm 575mm 589mm 602mm 621mm 652mm
Head-Tube Angle 69.5° 71.5° 72° 72° 72.5° 72.5°
Stand-Over Height 719mm 761mm 763mm 768mm 793mm 807mm
Fork Rake 49mm 43mm 43mm 43mm 43mm 43mm
Trail 74mm 68mm 65mm 65mm 61mm 61mm
Chain-Stay Length 395mm 395mm 395mm 395mm 395mm 395mm
B-B Drop 72mm 72mm 72mm 72mm 72mm 72mm
Seat-Post Length 450mm 450mm 450mm 450mm 450mm 450mm
