Transition Pro Frameset
$2,500.00
Part No.

Transition Pro Frameset

$2,500.00
Part No.  22535
load-spinner
Transition Pro Frameset
Overview
Technical Specifications
Geometry
Reviews

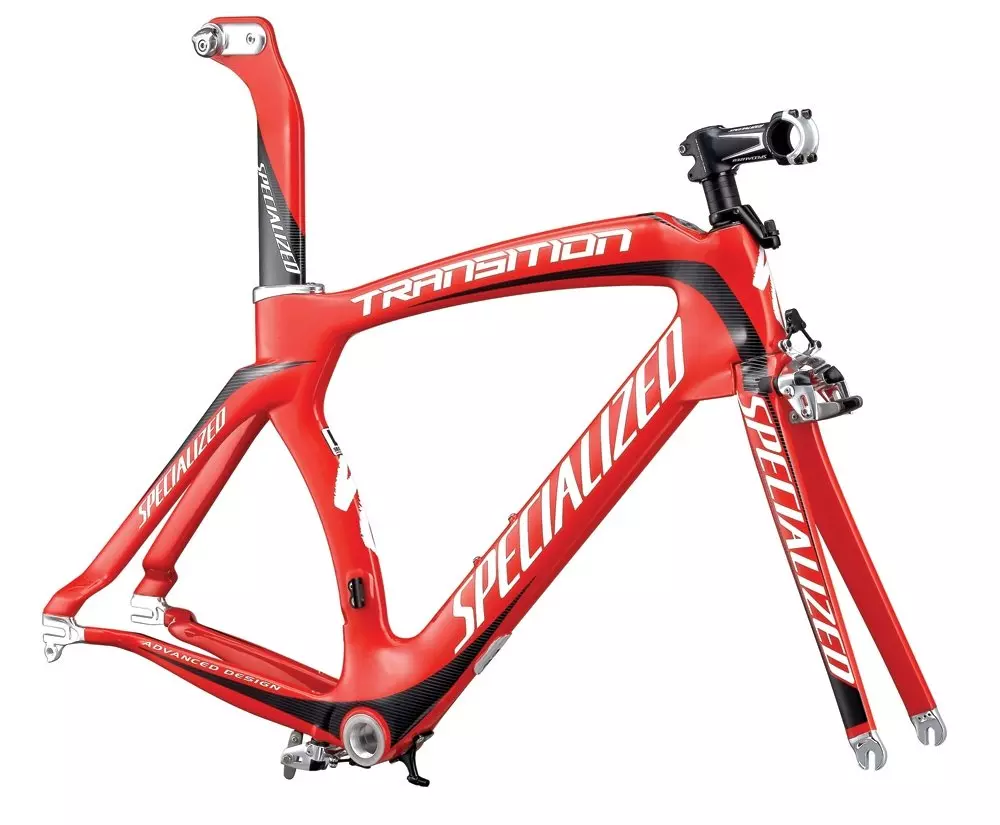

SO FAST IT WINS WORLD IRONMAN CHAMPIONSHIPS and carries Pro Tour riders to some of their fastest TT finishes, the FACT carbon Transition is every rider's unfair advantage.
  • The Transition Pro’s FACT carbon, triple monocoque frame features our N’Aero tube shaping in a compact aero design, with an oversized BB for maximum pedaling efficiency.
  • The Specialized FACT N’Aero carbon monocoque fork is stiff, quick, and precise.
  • The Mindset Plus headset uses sealed cartridge bearings for long life.
  • The Specialized integrated brake system maintains an aero profile while still providing sure stops.
  • The Transition Carbon seatpost is perfectly shaped to cheat the wind.

Technical Specifications

FRAMESET
SEAT BINDER Transition alloy
HEADSET Specialized 1"" integrated threadless, sealed cartridge bearings w/ one 10mm and two 5mm carbon spacers
FORK Specialized FACT N'Aero carbon, monocoque construction, 1"" steerer
FRAME Specialized FACT 7r N'Aero tube shaping, triple monocoque construction, compact aero geometry, vertical seat adjustment, OS BB
COCKPIT
SEATPOST Specialized Transition carbon, 2 position
STEM Specialized Pro-Set stem, 3D forged alloy, 4-bolt 31.8mm handlebar clamp, 4-position adjustable
BRAKES
FRONT BRAKE Specialized integrated brake system
REAR BRAKE Specialized integrated brake system

Geometry

Geometry Chart

Transition - Geometry

  SM MD LG XL
Saddle Setback (Min) 43mm 43mm 43mm 43mm
Handle-Bar Width 350mm 350mm 350mm 350mm
Wheelbase 400mm 400mm 420mm 420mm
BB Drop 50mm 50mm 50mm 50mm
Head-Tube Length 170mm 172.5mm 175mm 175mm
BB to top of Head-Tube, Horizontal 395mm 395mm 395mm 395mm
BB to top of Head-Tube, Vertical -100mm -100mm -100mm -100mm
Front-Center 100mm 110mm 120mm 120mm
Seat-Tube Length, B-B Center to Top vertical 72mm 72mm 72mm 72mm
Head-Tube Angle 575° 589° 602° 621°
Fork Rake 961mm 975mm 988mm 1007mm
Trail 761mm 763mm 768mm 787mm
Stand-Over Height 75mm 75mm 90mm 100mm
Chain-Stay Length 71.5mm 72mm 72mm 72.5mm
Saddle Setback (Max) 68mm 65mm 65mm 62mm
