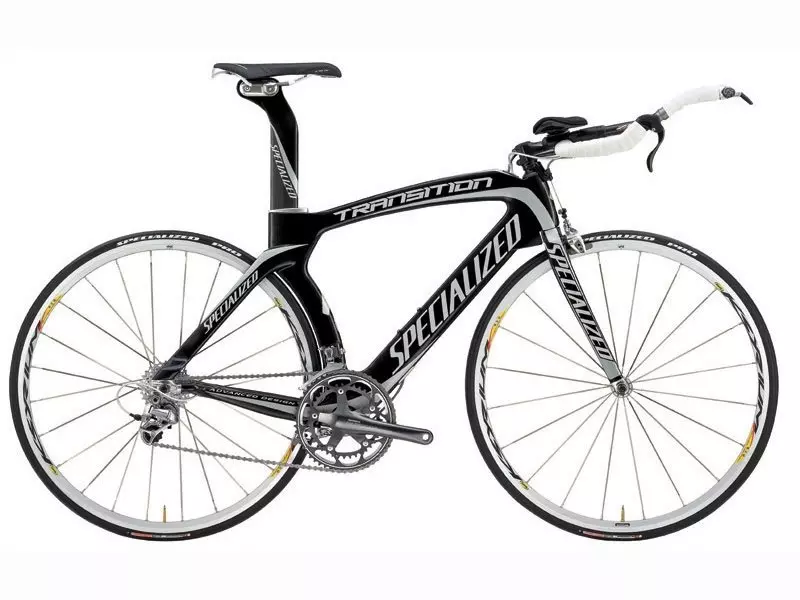

Transition Expert
$3,700.00
Part No.

Transition Expert

$3,700.00
Part No.  21840
load-spinner
Transition Expert
Overview
Technical Specifications
Geometry
Reviews
Triathlon/TT Racing Thanks to a close eye on the details, the Transition has been designed to cheat the wind and beat the competition. With seconds making the difference between first and, well, really far back, the devil in any multisport event is certainly in the details. So, it's no surprise that multi-sport athletes stick energy bars to their top tubes, shave the backs of their shoulders and drill holes in their shoes to allow the, um, water to drain out. It's also no surprise that we've designed our Transition with wind cheating aerodynamic efficiency and Ironman-winning geometry.

Useful Links FACT Carbon Transition Sizing Manuals/Tech Bulletins Tour Tech Video

  • Specialized FACT 7R N'Aero tube shape frame, compact aero geometry, vertical seat adjustment
  • Specialized FACT N'Aero fork, alloy 1" steerer
  • Zipp Vuka Clip carbon aero bar
  • Specialized Integrated Brake System
  • Shimano 10-speed drivetrain with Dura-ace rear derailleur
  • Shimano Ultegra Hollowtech II, 2-piece crankset
  • Mavic Ksyrium Equipe wheelset
  • Body Geometry TriTip Saddle

Technical Specifications

DRIVETRAIN
CHAIN Shimano 105, 10-speed
BOTTOM BRACKET Shimano Ultegra, Hollowtech II
CRANKSET Shimano Ultegra, Hollowtech II 2-piece crankset
FRONT DERAILLEUR Shimano Ultegra, braze-on clamp, bottom pull
SHIFT LEVERS Shimano Dura-Ace, 10-speed bar ends
CHAINRINGS 53x39T
REAR DERAILLEUR Shimano Dura-Ace, short cage
WHEELS
FRONT HUB Mavic Ksyrium Equipe, 18 hole, Mavic QR
REAR HUB Mavic Ksyrium Equipe, 20 hole, Mavic QR
SPOKES Stainless 14g aero
FRONT TIRE Specialized Mondo Pro, 700x21c, aramid bead, 120TPI, Flak Jacket
RIMS Mavic Kysrium Equipe
REAR TIRE Specialized Mondo Pro, 700x21c, aramid bead, 120TPI, Flak Jacket
COCKPIT
SADDLE Body Geometry TriTip, super light foam, carbon reinforced base, hollow Ti rails, microfiber cover, 50mm nose width
STEM Specialized Pro-Set lightweight stem, 3D forged alloy, 4-bolt 31.8mm bar clamp, 4-position adjustable
HANDLEBARS Zipp Vuka Clip carbon aero bar with Zertz Bullhorn base bar
BRAKES
FRONT BRAKE Specialized integrated brake system
BRAKE LEVERS Aero levers
REAR BRAKE Specialized integrated brake system
ACCESSORIES
PEDALS Composite body test ride pedals
FRAMESET
HEADSET Specialized Mindset Plus Carbon, 1"" integrated threadless, cartridge sealed bearings, 10mm and two 5mm carbon spacers
SEAT BINDER Specialized wedge seat binder
FORK Specialized FACT N'Aero fork, alloy 1"" steerer
FRAME Specialized FACT 7r N'Aero tube shaping, compact aero geometry, vertical seat adjustment

Geometry

Geometry Chart

Transition - Geometry

  SM MD LG XL
Saddle Setback (Min) 43mm 43mm 43mm 43mm
Handle-Bar Width 350mm 350mm 350mm 350mm
Wheelbase 400mm 400mm 420mm 420mm
BB Drop 50mm 50mm 50mm 50mm
Head-Tube Length 170mm 172.5mm 175mm 175mm
BB to top of Head-Tube, Horizontal 395mm 395mm 395mm 395mm
BB to top of Head-Tube, Vertical -100mm -100mm -100mm -100mm
Front-Center 100mm 110mm 120mm 120mm
Seat-Tube Length, B-B Center to Top vertical 72mm 72mm 72mm 72mm
Head-Tube Angle 575° 589° 602° 621°
Fork Rake 961mm 975mm 988mm 1007mm
Trail 761mm 763mm 768mm 787mm
Stand-Over Height 75mm 75mm 90mm 100mm
Chain-Stay Length 71.5mm 72mm 72mm 72.5mm
Saddle Setback (Max) 68mm 65mm 65mm 62mm
