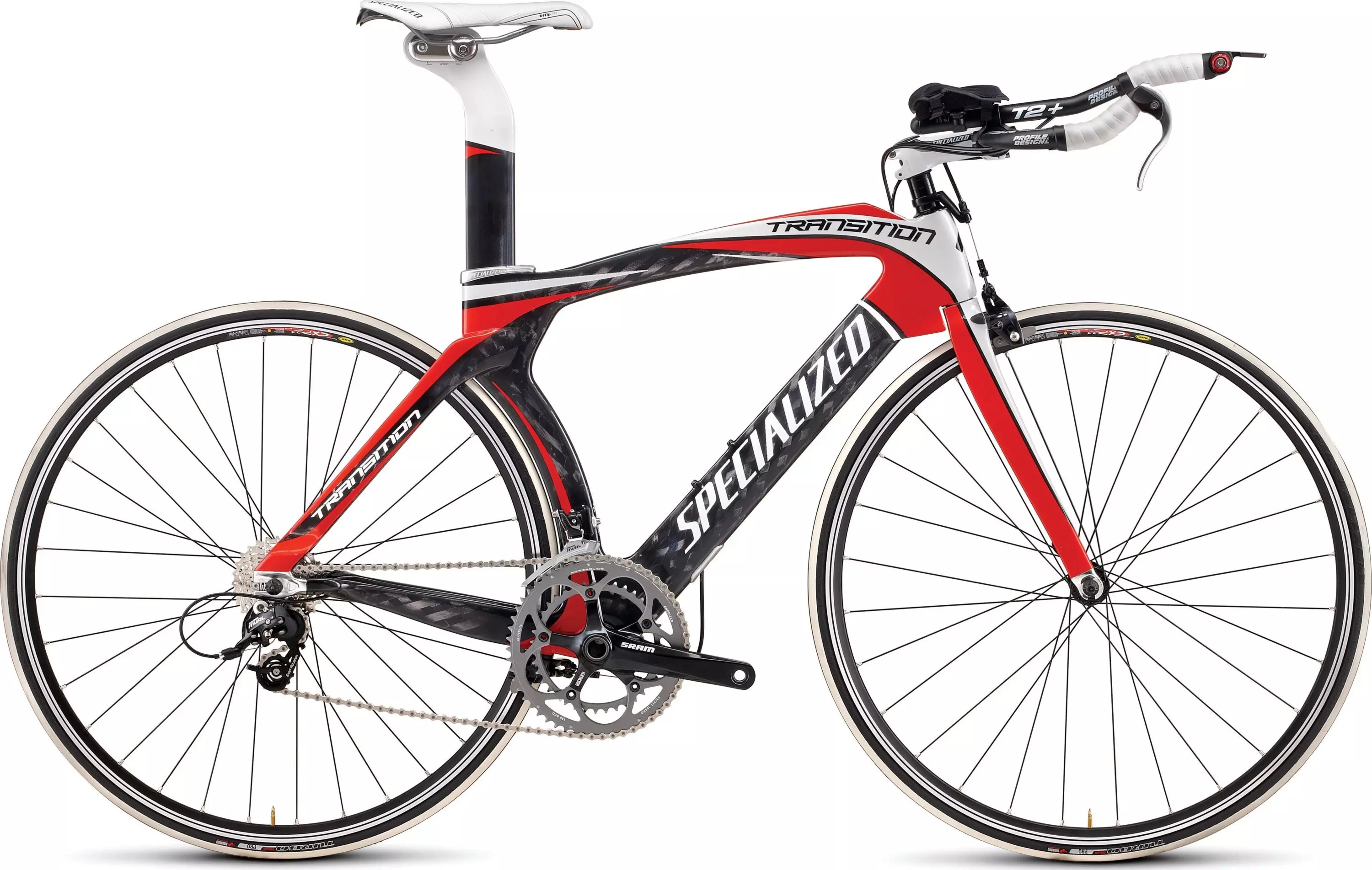

Transition Comp
$2,700.00
Part No.

Transition Comp

$2,700.00
Part No.  23524
load-spinner
Transition Comp
Overview
Technical Specifications
Geometry
Reviews
  • Super stiff FACT full monocoque carbon frame with threaded BB for high stiffness to weight ratio and solid handling, available in 6 sizes for perfect fit
  • Aerodynamic FACT carbon fork hides from the wind for precision steering and max speed
  • Fully adjustable Profile aero bar set fits any rider to provide the fastest position
  • Integrated aerodynamic brakes minimize drag for aero excellence
  • Super light SRAM Rival 10-speed derailleurs for race ready performance
  • Body Geometry TriTip Gel saddle has extra padding in the nose for a comfortable and efficient aero position

Technical Specifications

FRAMESET
SEAT BINDER Transition Seat Clamp
HEADSET 1"" Cr-Mo cartridge bearings with carbon 20mm cone spacer and 20mm of carbon spacers
FORK Specialized FACT N'Aero carbon, 1"" steerer
FRAME Specialized FACT 7r N'Aero tube shaping, triple monocoque construction, compact aero geometry, vertical seat adjustment, threaded BB
WHEELS
FRONT HUB Forged alloy Hub, sealed bearings, 28 hole, for J bend round spokes
REAR HUB Forged Alloy Hub, Sealed Bearing, 32 hole, for J Bend Round spokes
INNER TUBES Standard presta valve
SPOKES Stainless 14g
RIMS Mavic CXP22 w/ eyelets
FRONT TIRE Specialized Turbo Pro, 700x23c, Aramid bead, 127TPI, w/ Double Black Belt protection
REAR TIRE Specialized Turbo Pro, 700x23c, Aramid bead, 127TPI, w/ Double Black Belt protection
DRIVETRAIN
BOTTOM BRACKET With crankset
CHAIN KMC X10 CP
CRANKSET SRAM S300
CASSETTE Shimano 105, 10-speed, 11-28t
SHIFT LEVERS SRAM TT500 SL
FRONT DERAILLEUR SRAM Rival
CHAINRINGS 53 x 39T
REAR DERAILLEUR SRAM Rival
COCKPIT
SADDLE Body Geometry TriTip 50 w/ hollow Cr-Mo rails
TAPE Specialized S-Wrap
SEATPOST Transition Aero Carbon
HANDLEBARS Profile T2+ Aerobar
STEM Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
BRAKES
BRAKE LEVERS TRP Aero lever
FRONT BRAKE Specialized aero brake
REAR BRAKE Specialized aero brake
ACCESSORIES
PEDALS Black cage, body & toe clips w/ strap

Geometry

Geometry Chart

Transition - Geometry

  XS SM MD LG XL XXL
Crank Length 170mm 172.5mm 175mm 175mm 175mm 175mm
Handle-Bar Width 400mm 400mm 400mm 420mm 420mm 420mm
Reach 365mm 380mm 395mm 405mm 421mm 450mm
Wheelbase 961mm 961mm 975mm 988mm 1007mm 1036mm
Stack 487mm 505mm 516mm 526mm 542mm 554mm
Seat-Tube Length, B-B Center to Top 445mm 445mm 445mm 445mm 475mm 495mm
Head-Tube Length 90mm 100mm 110mm 120mm 135mm 150mm
Front-Center 577mm 575mm 589mm 602mm 621mm 652mm
Head-Tube Angle 69.5° 71.5° 72° 72° 72.5° 72.5°
Trail 74mm 68mm 65mm 65mm 61mm 61mm
Stand-Over Height 719mm 761mm 763mm 768mm 793mm 807mm
Chain-Stay Length 395mm 395mm 395mm 395mm 395mm 395mm
B-B Drop 72mm 72mm 72mm 72mm 72mm 72mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm 350mm
