We designed the new Tarmac to have the perfect blend of aerodynamics, light weight,…
We designed the new Tarmac to have the perfect blend of aerodynamics, light weight, and ride quality to deliver the ride of your life. From using our FreeFoil Shape Library to find the best tube shapes, to developing our next generation of Rider-First Engineered™ design, the new Tarmac is the culmination of our ever-longing pursuit of speed. It's a pure-bred race machine with no compromises. One bike to rule them all.

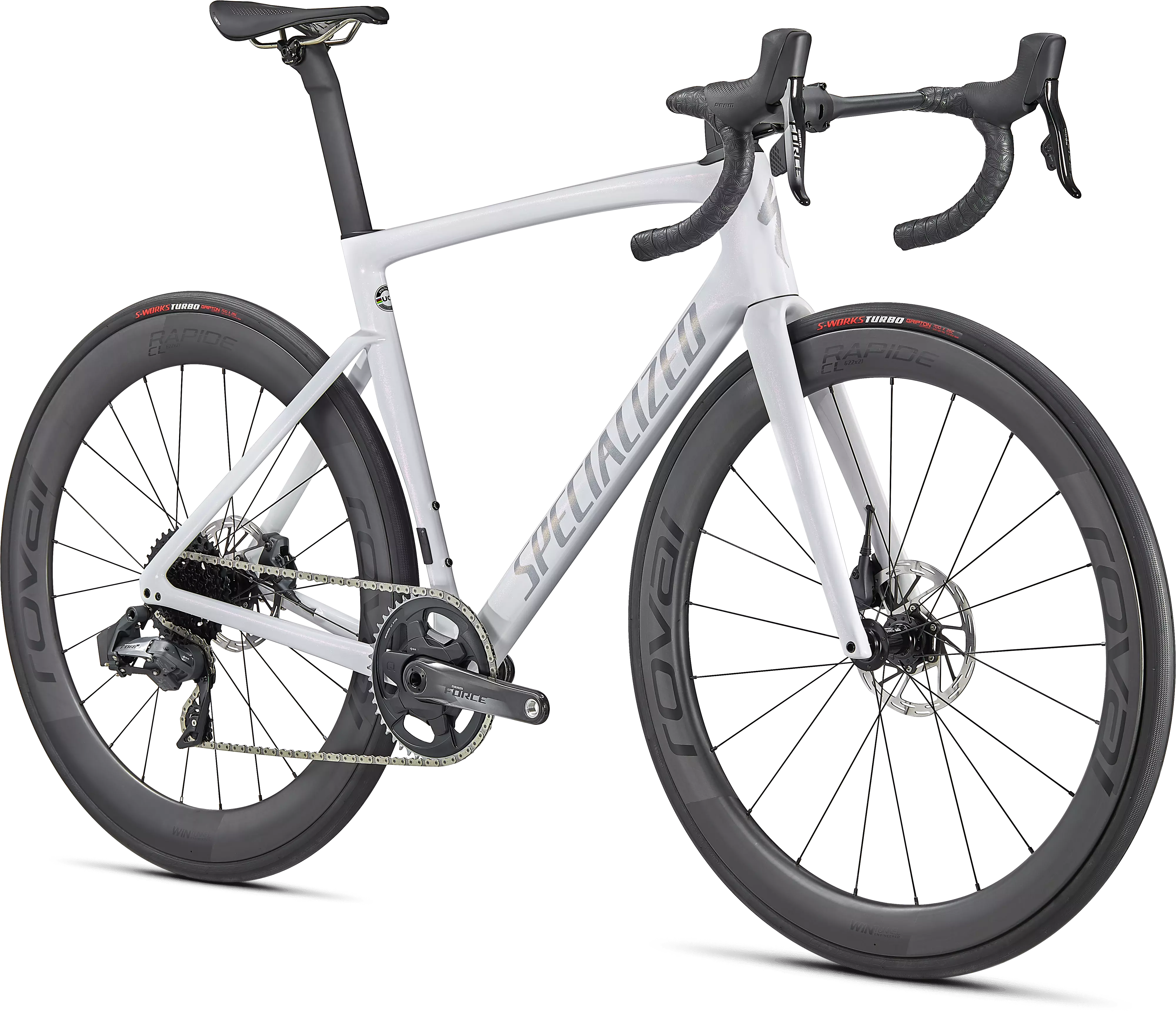

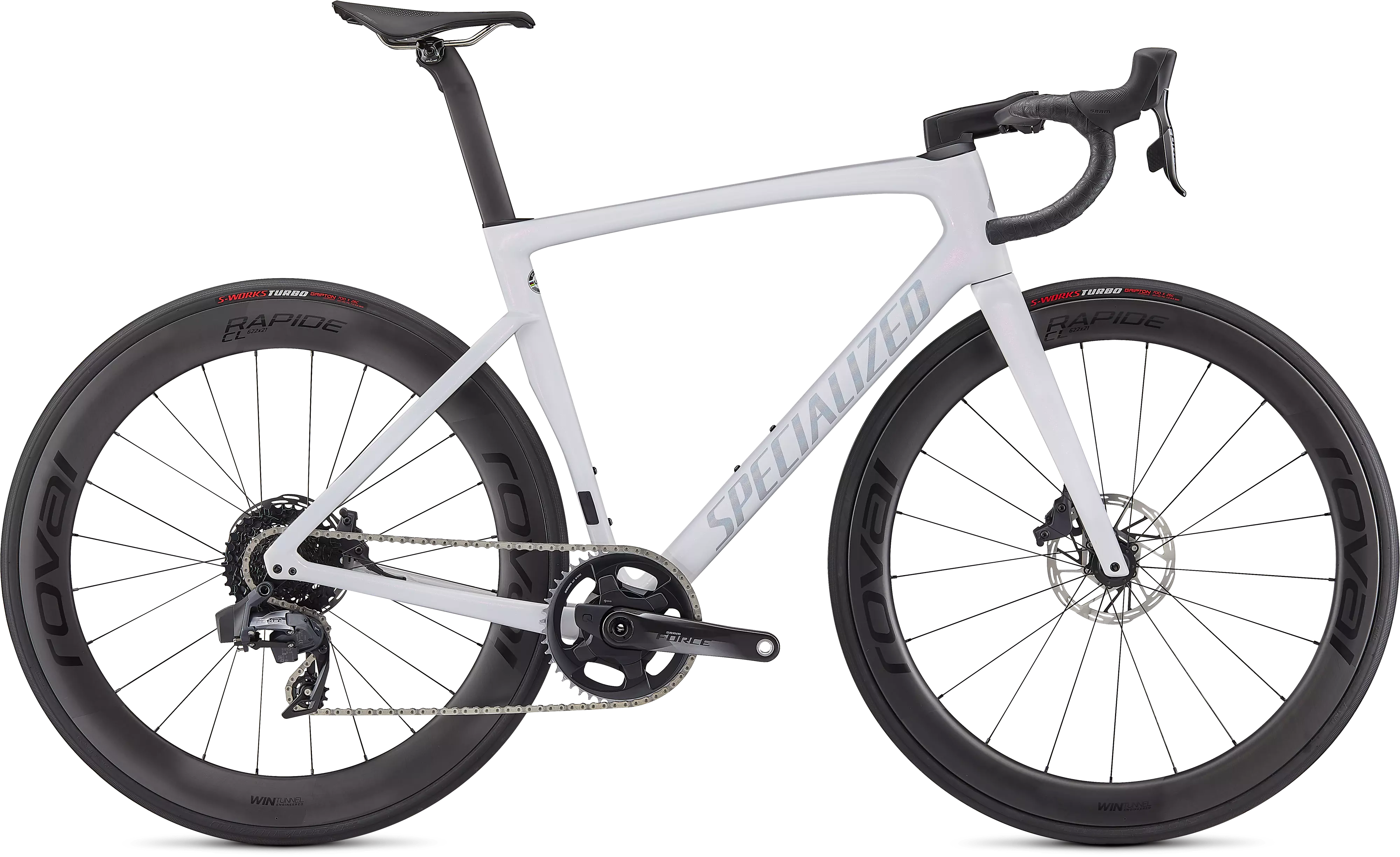

The all-new Tarmac Pro delivers the perfect blend of performance and value. A full SRAM Force eTap AXS 1x groupset aides in aero performance, will delivering a gear range that provides plenty of range for most rides—a 46t chainring with a 10-36 cassette. Add in Roval's new Rapide CL, with their exceptional stability and aerodynamic prowess, and the Tarmac Pro with SRAM eTap is perfect for crit racing, smashing the group ride, or piloting you to that next PR.
Frame
Tarmac SL7 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Tape
Supacaz Super Sticky Kush
Stem
Tarmac integrated stem, 6-degree
Handlebars
S-Works Aerofly II
Saddle
Body Geometry Power Pro, hollow titanium rails
SeatPost
2021 S-Works Tarmac Carbon seat post, FACT Carbon, Di2 Compatible, 20mm offset
Seat Binder
Tarmac integrated wedge
Fork
FACT Carbon, 12x100mm thru-axle, flat-mount disc
Front Brake
SRAM Force eTAP, hydraulic disc
Rear Brake
SRAM Force eTAP, hydraulic disc
Rear Derailleur
SRAM Force eTAP AXS, 12-speed
Cassette
SRAM Force, XG-1270 D1, 12-speed, 10-36t
Chain
SRAM CN Force 12-speed
Crankset
SRAM Force 1 AXS Power Meter, 46T
Bottom Bracket
SRAM DUB BSA 68
Front Wheel
Roval Rapide CL, 21mm internal width carbon rim, Win Tunnel Engineered, DT for Roval 350 hub, DT Swiss Revolution spokes
Rear Wheel
Roval Rapide CL, 21mm internal width carbon rim, Win Tunnel Engineered, DT for Roval 350 hub, DT Swiss Revolution spokes
Front Tire
S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
Rear Tire
S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
Inner Tubes
Turbo Ultralight, 60mm Presta valve
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
44 | 49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|---|
Crank Length | 165mm | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 380mm | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
Stem Length | 70mm | 80mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Saddle Width | 155mm | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 300mm | 300mm | 300mm | 380mm | 380mm | 380mm | 380mm |
Stack | 491mm | 504mm | 517mm | 534mm | 555mm | 581mm | 602mm |
Reach | 369mm | 378mm | 383mm | 387mm | 398mm | 405mm | 411mm |
Head Tube Length | 93mm | 102mm | 113mm | 131mm | 151mm | 178mm | 198mm |
Head Tube Angle | 70.5° | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
BB Height | 266mm | 266mm | 266mm | 268mm | 268mm | 268mm | 268mm |
BB Drop | 74mm | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
Trail | 71mm | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
Fork Length, Full | 366mm | 366mm | 366mm | 366mm | 366mm | 366mm | 366mm |
Fork Rake/Offset | 47mm | 47mm | 47mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 572mm | 574mm | 577mm | 579mm | 592mm | 606mm | 613mm |
Chainstay Length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
Wheelbase | 970mm | 973mm | 975mm | 978mm | 991mm | 1006mm | 1013mm |
Top Tube Length, Horizontal | 496mm | 509mm | 531mm | 541mm | 563mm | 577mm | 595mm |
Bike Standover Height | 723mm | 735mm | 746mm | 768mm | 786mm | 808mm | 834mm |
Seat Tube Length | 435mm | 447mm | 458mm | 475mm | 496mm | 517mm | 547mm |
Seat Tube Angle | 75.5° | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
