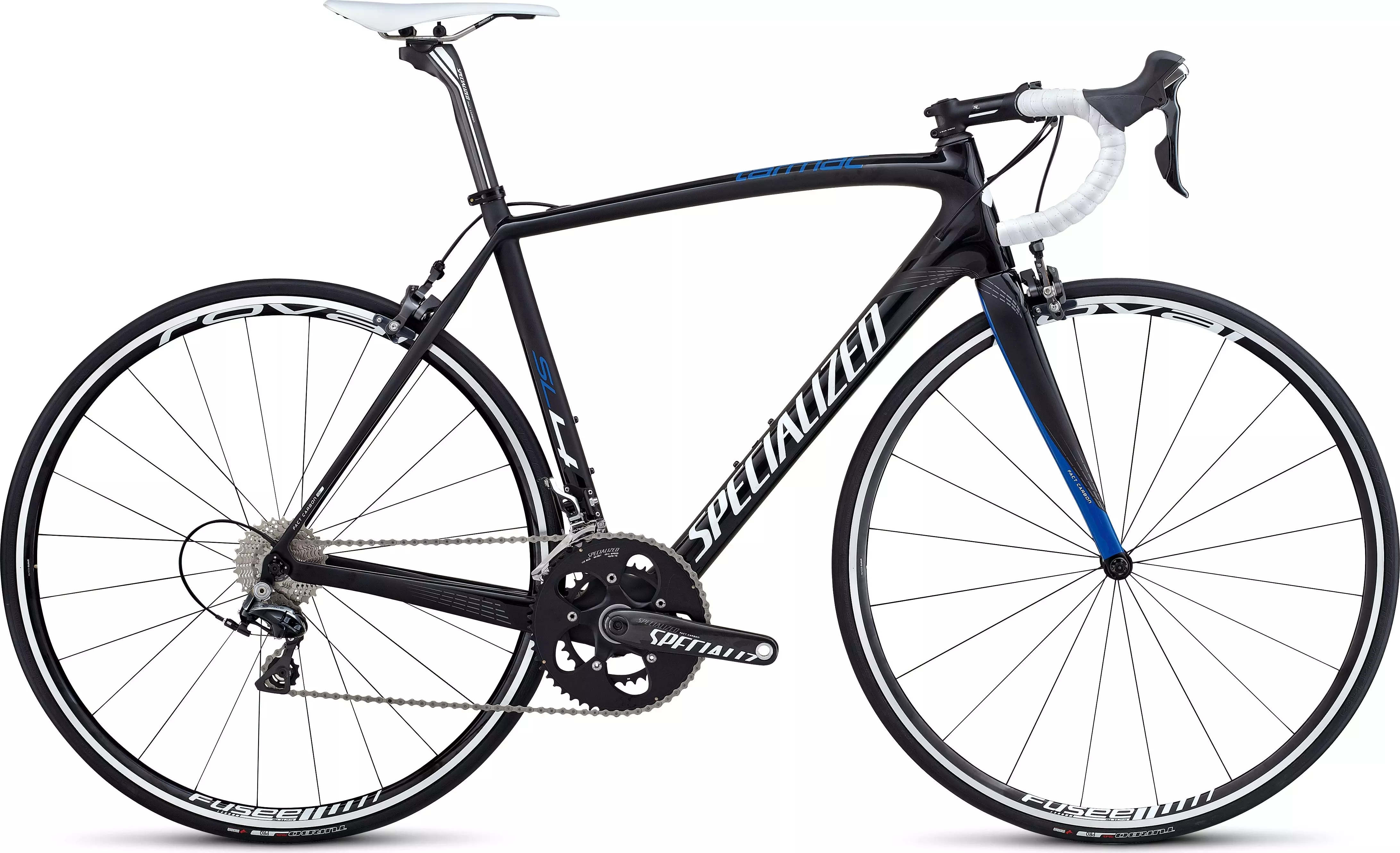

Tarmac SL4 Pro Dura-Ace
Overview
Technical Specifications
Geometry
Reviews
The Tarmac SL4 is a pure and unbridled race machine. It climbs effortlessly, descends confidently, and sprints ferociously. It's the lightest, stiffest frame we make and it shows as soon as you push on the pedals. Bottom line, you'll be faster on this bike. There's a reason it's the weapon of choice for the Saxo-Tinkoff, Astana and Omega Pharma-Quick-Step Pro Tour teams.
  • Specialized SL4 FACT 10r carbon frame with uniquely shaped, tapered headtube and OSBB is now even stiffer and lighter for pure, unbridled speed and power, paired with tapered, full-monocoque FACT carbon fork for ultimate steering precision
  • Specialized Pro FACT carbon crankset is OSBB with a removable spider and an unparalleled stiffness-to-weight ratio for maximum efficiency and power transfer
  • Roval Fusee SLX 23 is our lightest alloy wheelset and features DT Swiss internals and an asymmetrical rear rim for an outstanding combination of performance and strength. Paired with Specialized Turbo Pro 23c tires for an incredible package of light weight, low rolling resistance, and superior traction, all with BlackBelt protection
  • Shimano Dura-Ace 11-speed mechanical drivetrain delivers light-action, precision shifting at an incredibly light weight, creating one of the finest parts kits available

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy, Ti bolt, 32.6mm
HEADSET 1-1/8"" upper and 1-3/8"" lower, stainless steel cartridge bearings, 8mm carbon cone spacer, w/ 20mm of carbon spacers
FORK Specialized FACT carbon full monocoque, OS race for 1-3/8"" bearing, hollow carbon dropouts
FRAME Specialized SL4 FACT 10r carbon, FACT construction, tapered/shaped headtube, compact race design, 1-3/8"" lower bearing, OSBB
WHEELS
REAR WHEEL Roval Fusee SLX 23
INNER TUBES Turbo Ultralight, presta valve
FRONT TIRE Specialized Turbo Pro, 127TPI, foldable aramid bead, BlackBelt protection, 700x23c
REAR TIRE Specialized Turbo Pro, 127TPI, foldable aramid bead, BlackBelt protection, 700x23c
FRONT WHEEL Roval Fusee SLX 23
DRIVETRAIN
BOTTOM BRACKET OS integrated, sealed bearings
CHAIN Shimano Ultegra, 11-speed
CRANKSET Specialized Pro FACT carbon, OSBB
CASSETTE Shimano Ultegra, 11-speed, 11-28
SHIFT LEVERS Shimano Dura-Ace STI, 11-speed
FRONT DERAILLEUR Shimano Dura-Ace, braze-on, 11-speed
CHAINRINGS 52/36
REAR DERAILLEUR Shimano Dura-Ace, 11-speed
COCKPIT
SADDLE Body Geometry Toupé Expert, hollow Ti rails, 143mm
TAPE Specialized Classic Wrap
SEATPOST Specialized Pro SL, FACT carbon, 2-bolt, 27.2mm
HANDLEBARS Specialized Tarmac Expert, alloy, 140mm drop, 85mm reach
STEM Specialized Pro SL, 3D forged 7050 aluminum, 4-bolt, 31.8mm
BRAKES
BRAKE LEVERS Shimano Dura-Ace
FRONT BRAKE Shimano Ultegra
REAR BRAKE Shimano Ultegra
ACCESSORIES
PEDALS Nylon flat test ride, loose ball, w/ reflectors

Geometry

Geometry Chart

Tarmac - Geometry

  490 520 540 560 580 610
Stem Length 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 386mm 386mm 387mm 395mm 402mm 408mm
Wheelbase 970mm 970mm 978mm 986mm 1003mm 1013mm
Stack 504mm 526mm 543mm 564mm 591mm 612mm
Seat-Tube Length, B-B Center to Top 460mm 490mm 510mm 530mm 550mm 580mm
Head-Tube Length 100mm 120mm 140mm 160mm 190mm 210mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 576mm 576mm 583mm 591mm 605mm 612mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 53mm
Stand-Over Height 730mm 755mm 775mm 795mm 826mm 850mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm 350mm
