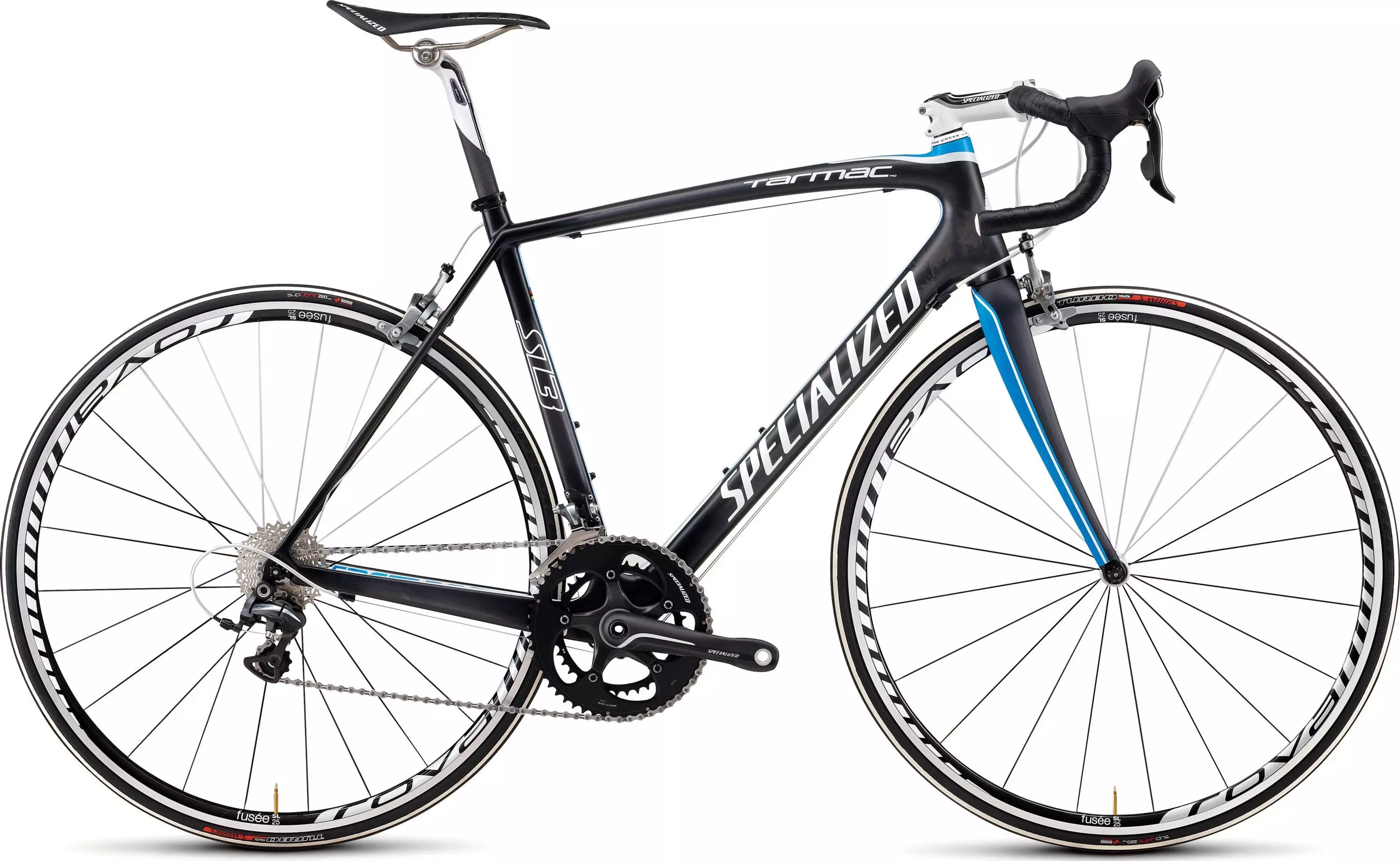

Tarmac SL3 Pro Dura-Ace
$5,200.00
Part No.

Tarmac SL3 Pro Dura-Ace

$5,200.00
Part No.  23503
load-spinner
Tarmac SL3 Pro Dura-Ace
Overview
Technical Specifications
Geometry
Reviews
With the word "Pro" in its name, the Tarmac SL3 Pro boldly sets its performance standard with FACT 10r frame, Dura-Ace components, and Specialized Pro FACT carbon cranks.
  • New SL3 FACT IS 10r carbon frame is now even stiffer and lighter for pure, unbridled speed and power
  • The FACT carbon fork with a tapered steerer is light, stiff and compliant
  • Campy-style 1-1/8" to 1-1/2" headset with steel bearings ensures precision, low maintenance and lighter weight
  • Specialized Pro FACT carbon crankset with oversized BB and removable spider has outstanding strength to weight ratio for superior efficiency and power transfer
  • Pro FACT carbon seatpost is super light and stiff for optimal power transfer
  • Legendary Shimano Dura-Ace 10-speed shifters are the benchmark for immediate, precise and quiet shifting
  • Roval Fusee SL wheelset combines our lightest alloy rims with aero features for a durable and compliant ride for everyday training

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy, 32.6mm
HEADSET 1-1/""8 upper and 1-1/5"" lower Cr-Mo cartridge bearings integrated w/ headset, carbon 8mm cone spacer and 20mm of carbon spacers
FORK Specialized FACT carbon full monocoque, OS race for 1-1/2"" bearing
FRAME Specialized FACT 10r carbon, FACT IS construction, compact race design, 1-1/2"" lower HS bearing, OSBB
WHEELS
REAR WHEEL Roval Fusee SL
INNER TUBES Standard presta valve
FRONT TIRE S-Works Turbo, 700x23c, Aramid bead, 220TPI w/ Black Belt protection
REAR TIRE S-Works Turbo, 700x23c, Aramid bead, 220TPI w/ Black Belt protection
FRONT WHEEL Roval Fusee SL
DRIVETRAIN
BOTTOM BRACKET OS integrated
CHAIN Shimano Ultegra
CRANKSET Specialized Pro FACT carbon
CASSETTE Shimano Ultegra, 10-speed, 11-28t
SHIFT LEVERS Shimano Dura-Ace STI, flight deck compatible
FRONT DERAILLEUR Shimano Dura-Ace
CHAINRINGS 53 x 39T
REAR DERAILLEUR Shimano Dura-Ace
COCKPIT
SADDLE Body Geometry Romin Expert w/ hollow Ti rails
TAPE Specialized Pro D2
SEATPOST Specialized Pro, FACT carbon w/ Zertz insert
HANDLEBARS Specialized Pro SL Carbon, classic bend
STEM Specialized Pro-Set, 3D forged 7050 aluminum, 4-position adjustable, 4-bolt 31.8mm clamp
BRAKES
BRAKE LEVERS Shimano Dura-Ace STI, flight deck compatible
FRONT BRAKE Shimano Ultegra
REAR BRAKE Shimano Ultegra
ACCESSORIES
PEDALS Black cage, body & toe clips w/ strap

Geometry

Geometry Chart

Tarmac - Geometry

  49 52 54 56 58 61
Stem Length 75mm 90mm 100mm 100mm 110mm 120mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Wheelbase 970mm 970mm 978mm 986mm 1003mm 1013mm
Seat-Tube Length, B-B Center to Top 460mm 490mm 510mm 530mm 550mm 580mm
Head-Tube Length 100mm 120mm 145mm 170mm 205mm 230mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 576mm 576mm 583mm 591mm 605mm 612mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 53mm
Stand-Over Height 730mm 755mm 777mm 800mm 828mm 857mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm 350mm
