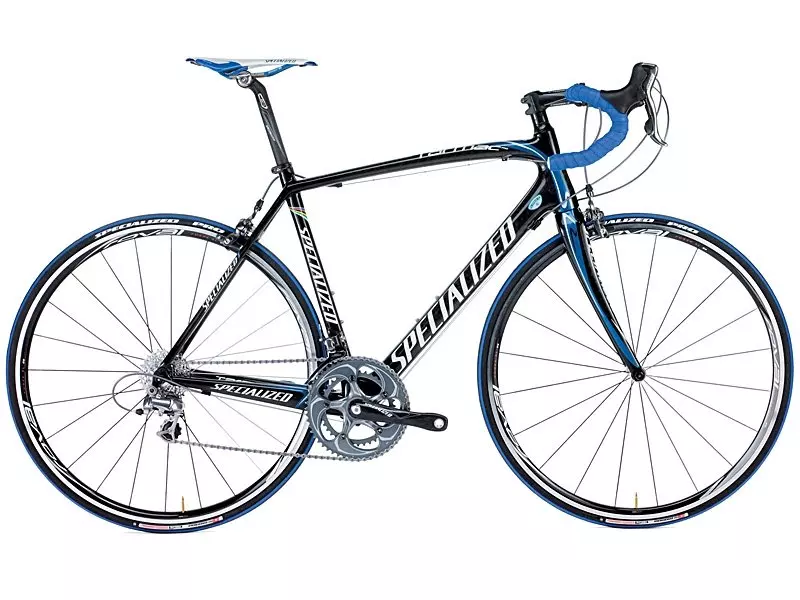

COMPETITIVE ROAD Nothing is lighter and stiffer. The goal of the Tarmac SL2 was simple. Make the best complete road racing bike in the world. Learn how we accomplished this at Specialized.com/TarmacSL2.

Useful Links FACT Carbon Roval Wheels Manuals/Tech Bulletins QuickStep TV

  • Utilizing FACT IS construction, the Tarmac Pro SL2's FACT 10r carbon frame boasts incredible stiffness from a 1100 gram frame
  • Mated with an oversized 1-1/2" lower bearing, the headset promotes precise handling
  • The fully-integrated Specialized Pro Carbon crankset turns every watt of rider energy into forward momentum
  • The Fusee SL wheelset with Swiss made internals is light, strong and durable for racing and everyday training
  • A smart mix of Dura-Ace and Ultegra components provide high level shifting and braking performance which compliment the Tarmac's racing heritage

Technical Specifications

DRIVETRAIN
CHAIN Shimano Dura-Ace, 10-speed
BOTTOM BRACKET Specialized integrated oversize design
CRANKSET Specialized Pro Carbon, integrated oversized design
FRONT DERAILLEUR Shimano Ultegra, braze-on
SHIFT LEVERS Shimano Dura-Ace, 10-speed STI, flight deck compatible
CASSETTE SRAM OG-1070, 10-speed 11-28t
CHAINRINGS 53x39T
REAR DERAILLEUR Shimano Dura-Ace, short cage
WHEELS
FRONT HUB Roval Fuseé, SL, carbon body w/ alloy flanges, Roval Ti QR
REAR HUB Roval Fuseé, SL, CNC alloy body, alloy cassette, Roval Ti QR
INNER TUBES Specialized standard presta tube
SPOKES DT Stainless 14/15g butted aero
RIMS Roval Fuseé, SL, E5 Alloy
FRONT TIRE Specialized Mondo Pro, 700x23C, aramid bead, 120TPI, Flak Jacket
REAR TIRE Specialized Mondo Pro, 700x23C, aramid bead, 120TPI, Flak Jacket
COCKPIT
SADDLE Body Geometry Toupé, Team, super light foam, carbon reinforced base, microfiber cover
TAPE Body Geometry Bar Phat, cork ribbon w/ 2.5mm gel padding
STEM S-Works Pro-Set stem, 31.8mm handlebar clamp 4-position adjustable, Ti hardware
HANDLEBARS S-Works SL FACT carbon aero handlebar, short-reach drop, 31.8mm clamp
BRAKES
FRONT BRAKE Shimano Ultegra
BRAKE LEVERS Shimano Dura-Ace, 10-speed STI, flight deck compatible
REAR BRAKE Shimano Ultegra
ACCESSORIES
PEDALS Composite body test ride pedals
FRAMESET
HEADSET Specialized Mindset, 1-1/2"" lower bearing, integrated threadless, stainless steel sealed cartridge bearings, 8mm carbon cone w/ one 10mm and two 5mm carbon spacers
SEAT BINDER Specialized CNC, alloy, 31.8mm clamp
FORK Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer
FRAME Specialized FACT 10r carbon, FACT IS construction, compact race design

Geometry

Geometry Chart

- Geometry

  49 52 54 56 58 61
Handle-Bar Width 300mm 350mm 350mm 350mm 350mm 350mm
Reach 518mm 537mm 548mm 565mm 582mm 600mm
Stack 460mm 490mm 510mm 530mm 550mm 580mm
Wheelbase 400mm 400mm 420mm 420mm 440mm 440mm
Seat-Tube Length, B-B Center to Top 405mm 405mm 405mm 405mm 407mm 410mm
Head-Tube Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Ground-Top 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Top-Tube Length, Horizontal 74mm 75.5mm 73.5mm 73.25mm 72.5mm 73mm
Front-Center 100mm 120mm 145mm 170mm 205mm 230mm
Head-Tube Angle 576° 576° 583° 591° 605° 612°
Stand-Over Height 75mm 90mm 100mm 100mm 110mm 120mm
Fork Rake 970mm 970mm 978mm 986mm 1003mm 1013mm
Trail 730mm 754mm 777mm 800mm 826mm 852mm
Chain-Stay Length 45mm 45mm 45mm 43mm 43mm 43mm
Seat-Tube Angle 57° 62° 57° 56° 53° 56°
B-B Drop 72.25mm 73mm 73mm 73.5mm 73.5mm 74mm
