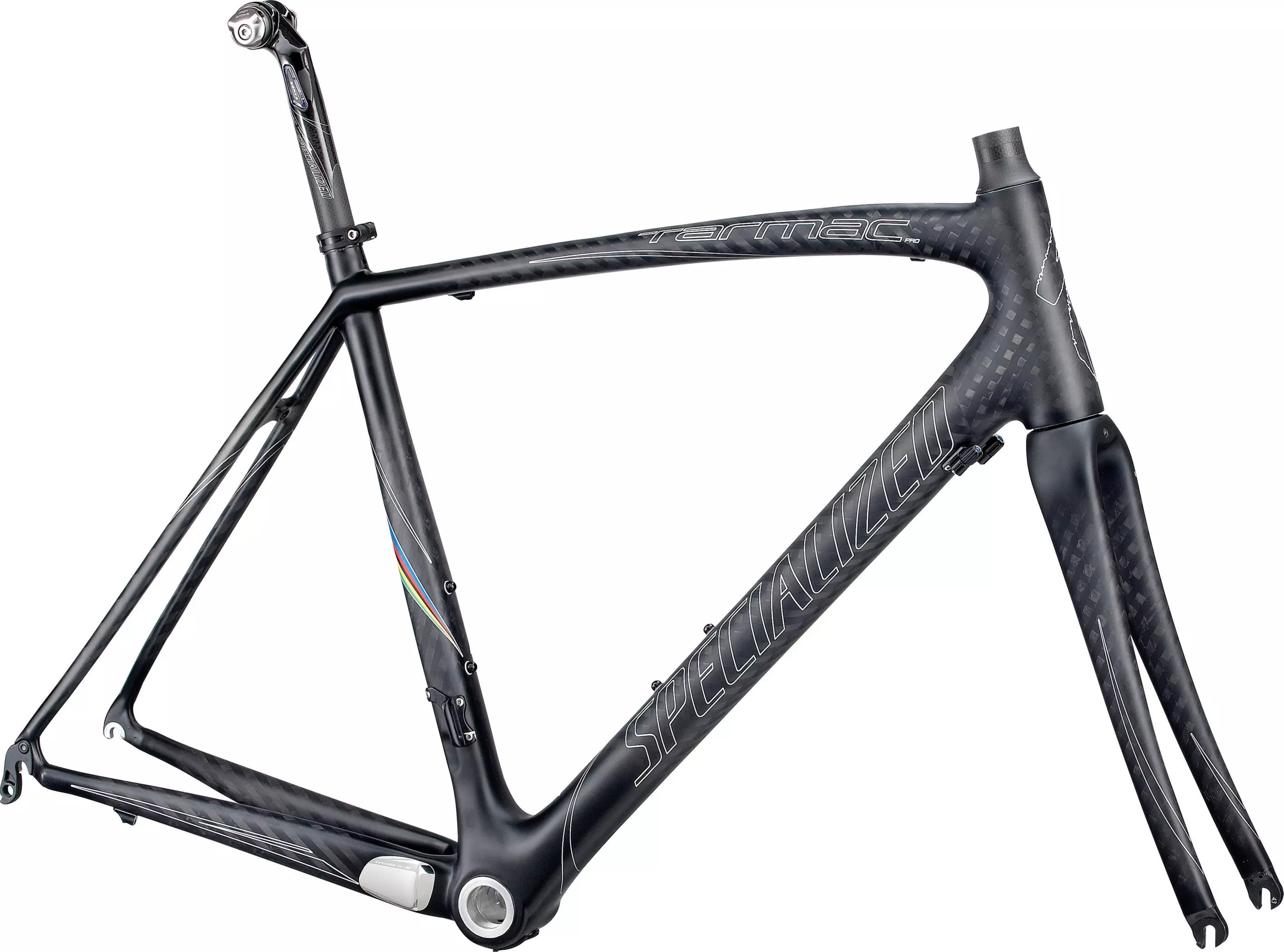

Tarmac Pro SL Frameset
Part No.

Tarmac Pro SL Frameset

Part No.
Please select an option
Tarmac Pro SL Frameset
Technical Specifications
Leading our pros to victory at races like Liège-Bastogne-Liège, Tour of Flanders, and countless others, the Tarmac® proves itself to be the best handling, most high-performance bike on the road. Thanks to the integration of critical components, an extremely rigid FACT carbon frame, and proprietary Body Geometry extras, we can proudly say that nothing is lighter and stiffer.
  • FACT carbon Pave seatpost uses a Zertz insert to minimize road vibrations for greater comfort
  • Campy-style 1-1/8" to 1.5" headset with steel bearings ensures quality, low maintenance and lighter weight
  • FACT full carbon monocoque fork integrates with the frame using an oversized race to deliver enhanced steering precision
  • Advanced FACT IS 10r carbon frame is light, fast and powerful, with a 1.5" lower headset bearing for extra stiffness and Pro Tour performance

Technical Specifications

SEATPOST Specialized FACT carbon w/ Zertz insert, 27.2mm
HEADSET Aheadset Stainless Race Steel Balls w/ top cap w/ 20mm of spacers
SEAT BINDER Alloy, 32.6mm clamp
FORK Tarmac full FACT carbon monocoque, OS race for 1.5"" bearing
FRAME Specialized Tarmac SL FACT 10r carbon, FACT IS construction, compact race design, 1.5"" lower HS bearing


Geometry Chart

- Geometry

  49 52 54 56 58 61
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Stem Length 75mm 90mm 100mm 100mm 110mm 120mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Wheelbase 941mm 961mm 973mm 988mm 1008mm 1030mm
Seat-Tube Length, B-B Center to Top 460mm 490mm 510mm 530mm 550mm 580mm
Head-Tube Length 100mm 120mm 145mm 170mm 205mm 230mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 576mm 576mm 583mm 591mm 605mm 613mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Stand-Over Height 730mm 755mm 777mm 800mm 828mm 857mm
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 53mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm 350mm
