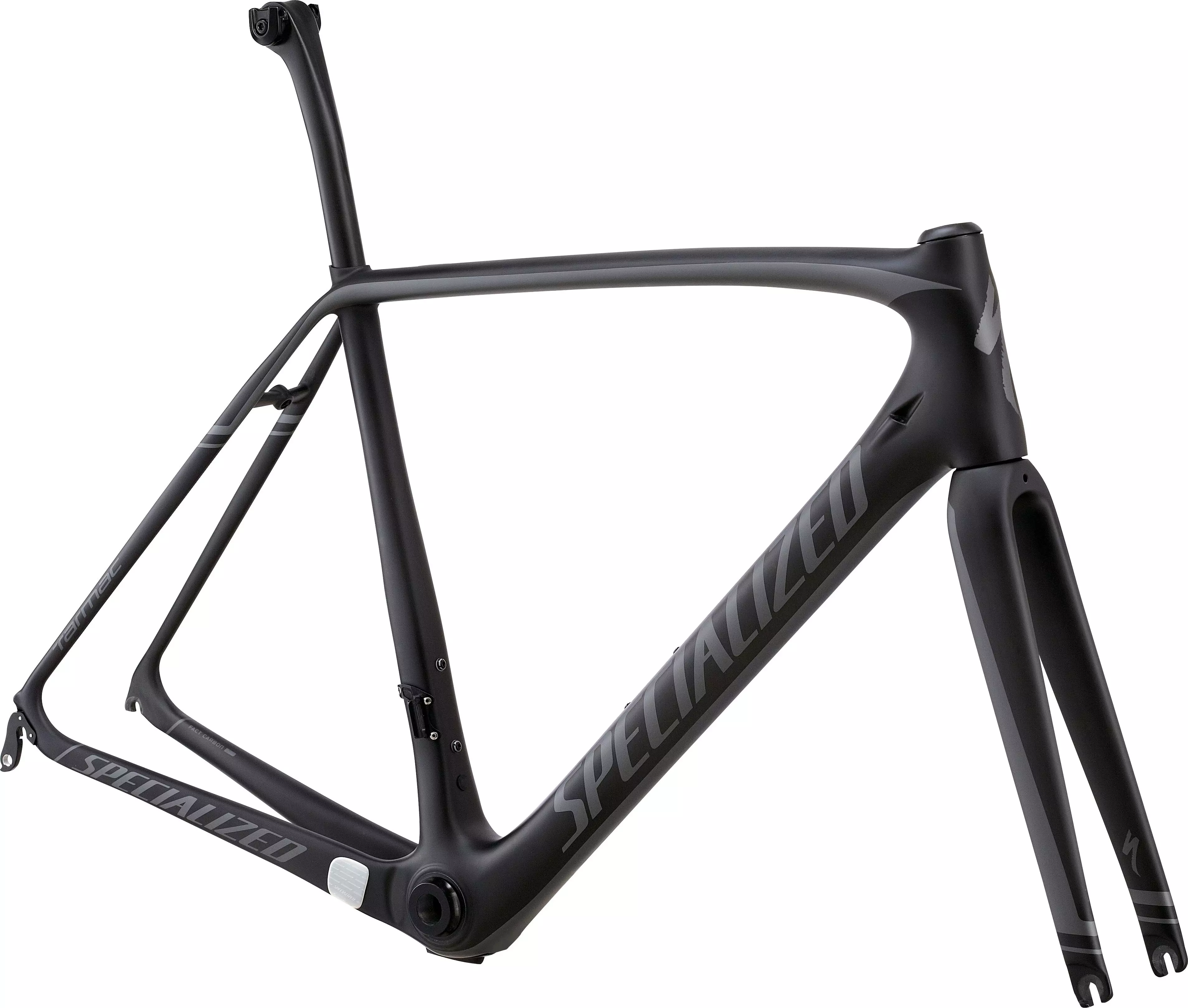

Tarmac Pro Frameset
$3,000.00
Part No.

Tarmac Pro Frameset

$3,000.00
Part No.  93253
load-spinner
Tarmac Pro Frameset
Overview
Technical Specifications
Geometry
Reviews
The new Tarmac Pro Frameset is Rider-First Engineered™ to provide every size frame with the hill destroying stiffness and legendary descending prowess the Tarmac is known for. It's a performance bred machine ready to be built up exactly how you want it.
  • S-Works FACT carbon seatpost is super light and stiff for optimal power transfer
  • Specialized FACT 10r carbon frame, Rider-First Engineered w/ tapered headtube and OSBB
  • Full monocoque FACT carbon fork with a tapered carbon steerer is both light and stiff

Technical Specifications

FRAMESET
SEAT BINDER Specialized, integrated wedge
HEADSET 1-1/8"" upper, size-specific lower, stainless steel cartridge bearings, 8mm carbon cone spacer, w/ 25mm carbon spacers
FORK S-Works FACT carbon, full monocoque, size-specific taper
FRAME Specialized FACT 10r carbon, FACT construction, tapered/shaped 1-1/8"" to size-specific lower head tube, compact race design, internal cable routing
DRIVETRAIN
BOTTOM BRACKET Hope, BB30
COCKPIT
SEATPOST S-Works FACT carbon, 20mm offset, 27.2mm

Geometry

Geometry Chart

Tarmac - Geometry

  49 52 54 56 58 61 64
Stem Length 75mm 90mm 100mm 100mm 110mm 110mm 120mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm 175mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm 440mm
Reach 386mm 386mm 387mm 395mm 402mm 408mm 415mm
Wheelbase 970mm 970mm 978mm 986mm 1003mm 1013mm 1016mm
Stack 504mm 526mm 543mm 564mm 591mm 612mm 636mm
Seat-Tube Length, B-B Center to Top 431mm 462mm 481mm 501mm 522mm 553mm 584mm
Head-Tube Length 100mm 120mm 140mm 160mm 190mm 210mm 235mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm 621mm
Front-Center 576mm 576mm 583mm 591mm 605mm 612mm 645mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74° 74.5°
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 53mm 50mm
Stand-Over Height 730mm 755mm 775mm 795mm 826mm 850mm 850mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm 67.5mm
Seat-Post Length 350mm 350mm 350mm 400mm 400mm 400mm 400mm
