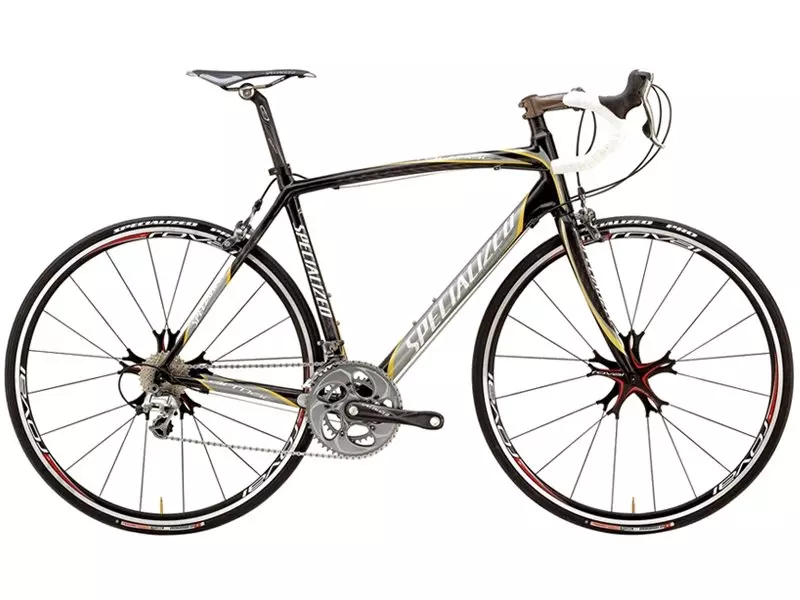

Tarmac Pro Compact
Part No.

Tarmac Pro Compact

Part No.
load-spinner
Tarmac Pro Compact
Overview
Technical Specifications
Geometry
Reviews
Competitive Road FAST REDEFINED Designed for speed and efficiency, yet still light, sharp-handling and smooth-riding, the Tarmac SL gives new meaning to the word fast.

Inside Tech When we set out to build the lightest, most efficient road bike ever, there wasn't a manufacturing process that could do the job. So we created one—'Az1'. Using Az1 (say: as-one) we seamlessly join discrete carbon monocoque sections into a single chassis, creating a frame with unsurpassed strength-to-weight and stiffness-to-weight ratios.

Useful Links FACT Carbon Roval Wheels Manuals/Tech Bulletins

  • Specialized FACT 8r carbon frame, Az1 construction, compact race design
  • Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer
  • S-Works FACT carbon stem and S-Works SL FACT carbon aero handlebar, short-reach drop, 31.8mm clamp
  • Shimano Dura-Ace rear derailleur and shifter levers
  • FSA K-Force MegaExo, 2-piece carbon crankset with 50x34T compact chainrings
  • Mavic Kysrium Elite wheelset
  • Body Geometry Toupé Team saddle

Technical Specifications

DRIVETRAIN
CHAIN Shimano Dura-Ace, 10-speed
BOTTOM BRACKET Specialized, oversized integrated
CRANKSET Specialized FACT carbon crankset, integrated oversize design
FRONT DERAILLEUR Shimano Ultegra, 34.9mm clamp, bottom pull
SHIFT LEVERS Shimano Dura-Ace, 10-speed STI, flight deck compatible
CHAINRINGS 50x34T
REAR DERAILLEUR Shimano Dura-Ace, short cage
WHEELS
FRONT HUB Roval Fusee Star, forged and CNC hub body, Roval Ti QR
REAR HUB Roval Fusee Star, forged and CNC hub body, alloy cassette, Roval Ti QR
SPOKES DT Stainless 14/15g Butted Aero
FRONT TIRE Specialized Mondo Pro, 700x23C, aramid bead, 120TPI, Flak Jacket
RIMS Roval Fusee Star, E5 Alloy
REAR TIRE Specialized Mondo Pro, 700x23C, aramid bead, 120TPI, Flak Jacket
COCKPIT
SADDLE Body Geometry Toupé Team, super light foam, carbon reinforced base, hollow Ti rails, microfiber cover
STEM S-Works Pro-Set stem, 31.8mm handlebar clamp, 4-position adjustable, Ti hardware
HANDLEBARS S-Works SL, FACT carbon aero handlebar, short-reach drop, 31.8mm clamp
BRAKES
FRONT BRAKE Shimano Ultegra
BRAKE LEVERS Shimano Dura-Ace, 10-speed STI, flight deck compatible
REAR BRAKE Shimano Ultegra
ACCESSORIES
PEDALS Composite body test ride pedals
FRAMESET
HEADSET Specialized Mindset Plus Carbon, 1 1/8"" integrated threadless, cartridge sealed bearings, carbon 20mm cone w/ one 10mm and two 5mm carbon spacers
SEAT BINDER Specialized CNC, alloy, 32.6mm clamp
FORK Specialized FACT monocoque carbon fork, full carbon legs, crown and steerer
FRAME Specialized FACT 8r carbon, Az1 construction, compact race design

Geometry

Geometry Chart

- Geometry

  49 52 54 56 58 61
Handle-Bar Width 300mm 350mm 350mm 350mm 350mm 350mm
Reach 518mm 537mm 548mm 565mm 582mm 600mm
Stack 460mm 490mm 510mm 530mm 550mm 580mm
Wheelbase 400mm 400mm 420mm 420mm 440mm 440mm
Seat-Tube Length, B-B Center to Top 405mm 405mm 405mm 405mm 407mm 410mm
Head-Tube Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Ground-Top 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Top-Tube Length, Horizontal 74mm 75.5mm 73.5mm 73.25mm 72.5mm 73mm
Front-Center 100mm 120mm 145mm 170mm 205mm 230mm
Head-Tube Angle 576° 576° 583° 591° 605° 612°
Stand-Over Height 75mm 90mm 100mm 100mm 110mm 120mm
Fork Rake 970mm 970mm 978mm 986mm 1003mm 1013mm
Trail 730mm 754mm 777mm 800mm 826mm 852mm
Chain-Stay Length 45mm 45mm 45mm 43mm 43mm 43mm
Seat-Tube Angle 57° 62° 57° 56° 53° 56°
B-B Drop 72.25mm 73mm 73mm 73.5mm 73.5mm 74mm
